Good quality Casing air o unions

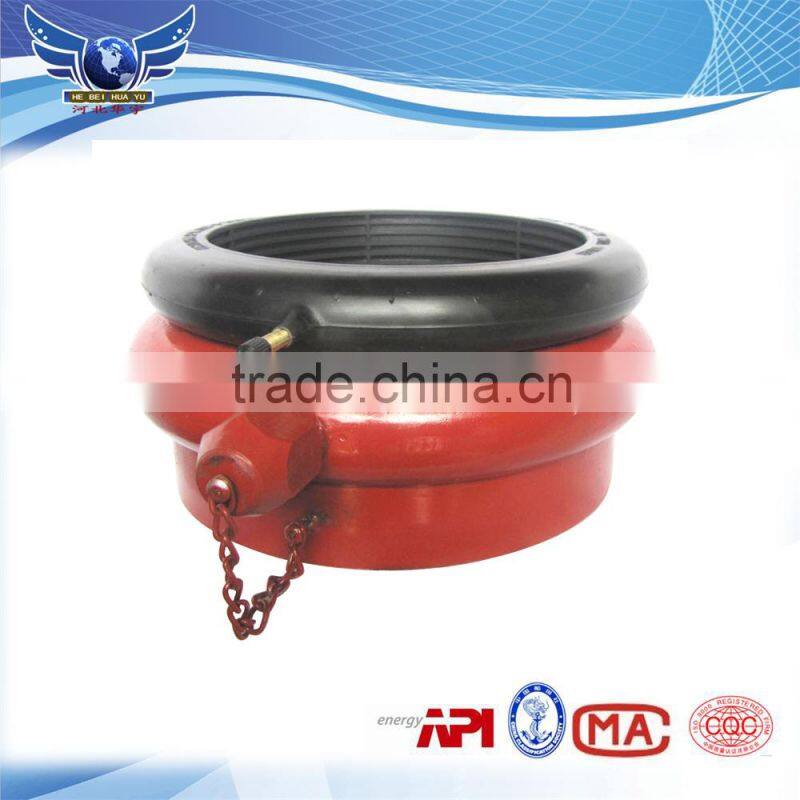

Air Grip Unions (Air-O-Unions)
Air Grip Union is widely applied in drilling fluid pipelines, with features of low-pressure, large pipe size, big pipe misalignment, frequent installation and uninstall. Especially, in connecting mud tanks, mud suction and return lines in solid control system.
150 psi maximum line pressure, 4, 6, 8, 10, 12, 14and 16-inch sizes
Recommended service
Mud suction and return lines and low-pressure fluid lines
In the Air Grip Unions(Air-O-Unions) we have patents
1. Medium available: mud,oil,water
2. Medium temperature:-45°C ~50°C
3. Reconversion time when deflated: 1-3 seconds.
4. Medium presssure:0.4Mpa

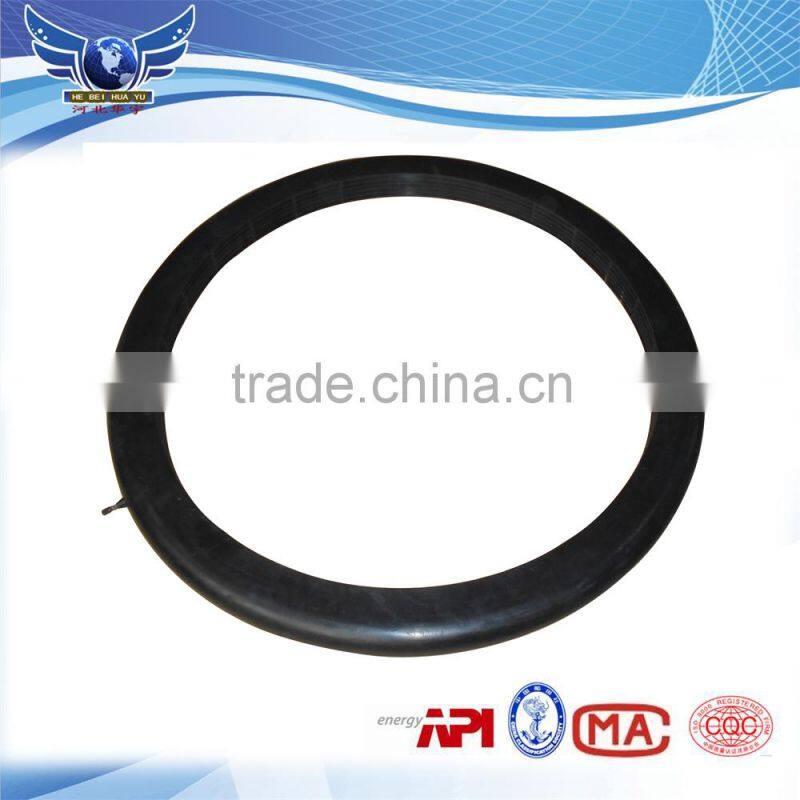

5. Structure: Steel shell and air bag
6. Material: shell for 20# casting steel, Tyre for rubber.
Product show
Patent Certificate
Specification and Technical parameters
|
Normal Pipe Size(mm) |
4” (100) |
6” (150) |
8” (200) |
10” (250) |
12” (300) |
14” (350) |
16” (400) |
Tube I.D.(mm)A |
114 |
171 |
222 |
278 |
329 |
384 |
413 |
Body I.D.(mm)B |
117 |
176 |
227 |
283 |
333 |
388 |
416 |
Butt-weld I.D(mm)C |
129 |
203 |
257 |
308 |
340 |
409 |
441 |
Butt-weld I.D.(mm)D |
141 |
219 |
273 |
324 |
356 |
425 |
547 |
Body O.D.(mm)E |
168 |
260 |
311 |
368 |
419 |
476 |
503 |
Height(mm)F |
80 |
102 |
102 |
108 |
108 |
108 |
108 |
Wt.(kgs)-Air bag |
0.3 |
0.65 |
0.8 |
1.0 |
1.2 |
1.5 |
1.7 |
Wt.(kgs)-Assembly |
5.5 |
8.2 |
9.2 |
12 |
13.5 |
15 |
20 |
