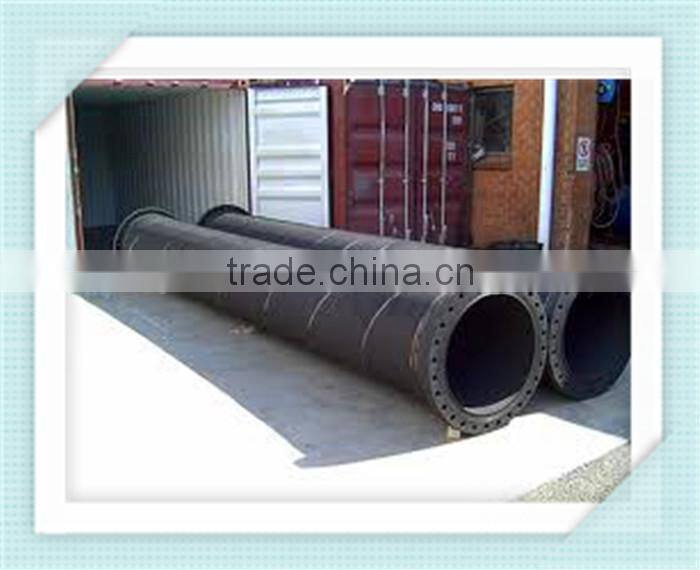

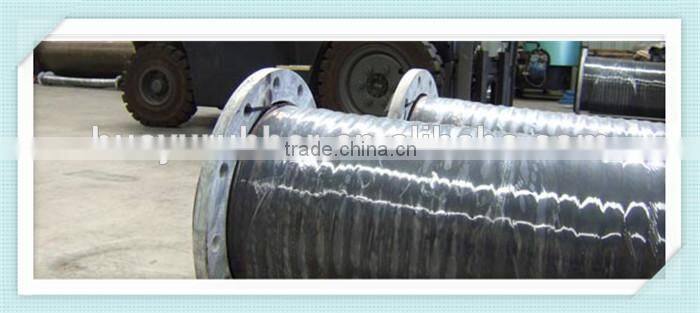

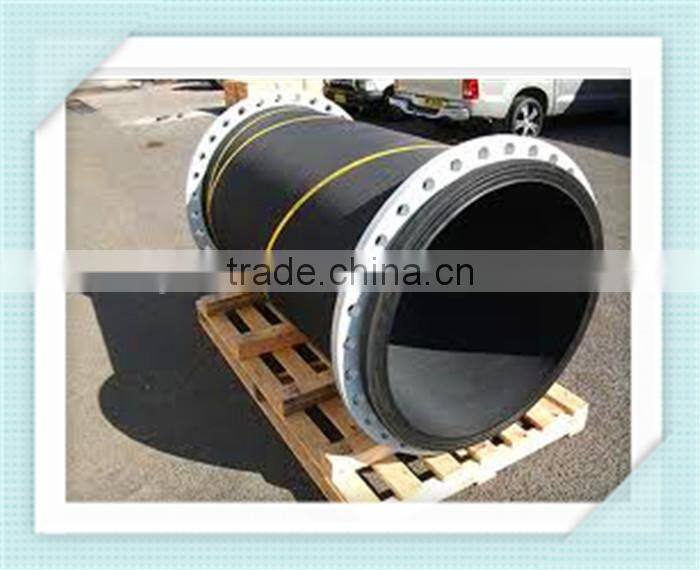

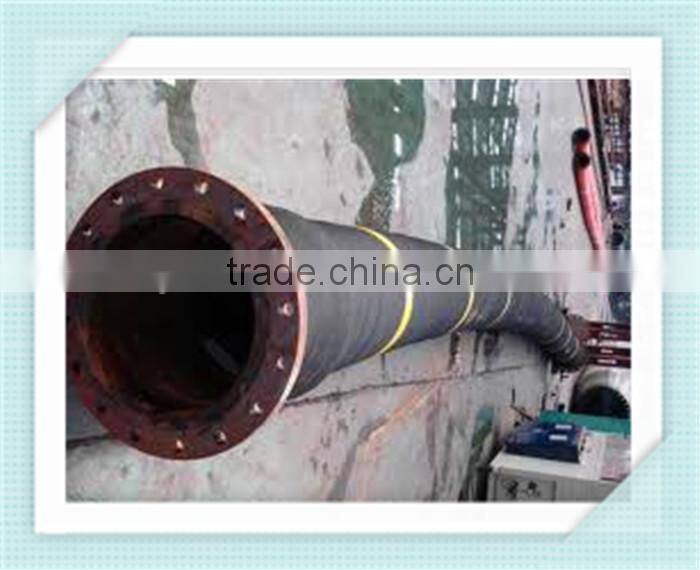

Help CenterLarge Diameter Rubber Hose for Mining
Related Products
Rubber Hose
Trelleborg supply specialty hand built hose manufactured from the world’s best hose rubber compounds including NR, SBR, NBR, EPDM and silicone All hoses are designed and manufactured to suit the specific application and therefore the following design factors are considered:
- Pressure
- Wear resistance
- Product temperature
- Chemicals resistance
- Ore or material being transported
- Exposure factors such as UV and Ozone
- Flange arrangement
To achieve the required working pressures, Trelleborg mining hose is constructed of woven cord materials such as rayon, polyester or aramid fibers and steel reinforcing components in the form of spiral wire or rings and flanges.
mining hose is available with inside diameters up to 1200mm and working pressure of 1.4MPa.
ID |
OD |
WP |
BP |
||||
mm |
inch |
mm |
inch |
Mpa |
bar |
Mpa |
bar |
152 |
6" |
182 |
7-1/4" |
1.2 |
12 |
2.4 |
24 |
203 |
8" |
233 |
9-1/5" |
1.2 |
12 |
2.4 |
24 |
254 |
10" |
284 |
11-1/5" |
1 |
10 |
2 |
20 |
304 |
12" |
340 |
13-2/5" |
1 |
10 |
2 |
20 |
350 |
14" |
390 |
15-2/5" |
1 |
10 |
2 |
20 |
450 |
18" |
486 |
19-1/5" |
0.7 |
7 |
1.5 |
15 |
550 |
22" |
590 |
23-3/5" |
0.7 |
7 |
1.5 |
15 |
600 |
24" |
640 |
25-3/5" |
0.7 |
7 |
1.5 |
15 |
700 |
28" |
750 |
29-3/5" |
0.7 |
7 |
1.5 |
15 |
800 |
32" |
850 |
33-1/2" |
0.5 |
5 |
1 |
10 |
1000 |
40" |
1050 |
41-1/2" |
0.5 |
5 |
1 |
10 |
1200 |
48" |
1250 |
49-1/5" |
0.5 |
5 |
1 |
10 |
1300 |
52" |
1350 |
53-1/5" |
0.5 |
5 |
1 |
10 |
Mainly produces:
1. Resistance burning antistatic high pressure steel wire spiral rubber hose, high pressure braided hose, high temperature resistant rubber hose,CONCRETE PUMP HOSE.
2. Super high pressure steel wire hose and high pressure hose assembly.
3. Drilling hose,Floating Dredging Hose,Marine oil hose large caliber,Dredger Hose,Flame resistant hose,Dredger Suction and Discharge Hose.
4. Oil field special rubber seals.
5. Solid control parts: Hammer Union, Air Grip Unions, mud tank unions.
6. Air Operated Thread Protectors,Mech-Tec (TM)Clamp-On Thread Protectors.
The company since its inception, relying on science and technology for development. Established long-term cooperative relations with chemical shenyang rubber research institute, has the research, development, production of hundreds of special rubber products, in the domestic each big oil fields, steel mills, mining, machinery and other industries has been the user's consistent high praise, and exported to South Korea, Mongolia, Russia and other countries.
Any needs for API 7K Drilling hose, Concrete hose, High pressure hose, hydraulic hose and Hammer Union, just contact me!
