1.Internal rubber layer: NR, SBR, BR
2.Reinforcement layer: Steel wire spiral reinforced layer.
3.External rubber layer: NR, SBR, BR

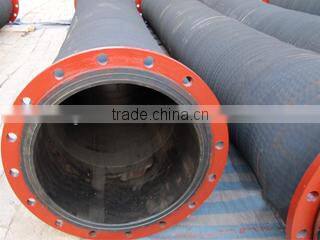

Flange
Chinese standard, American standard, Japanese standard, German standard etc. Are available.
Application
Used for port, dock, seawater, silt, sand, discharge flood etc.
Character
Flexible, Anti-waves, Wear-resistance, Weather-resistance, Aging-resistance, seawater resistance
Temperature
From -30 Degrees Celsius To 80 Degrees Celsius.
Guarantee period
6 months or longer
Note: Above text contained is provided for general reference purposes only.
Products can be manufactured according to customers' requirements and
Drawings.
Inside Diameter |
Outside Diameter |
Working Pressure |
Burst Pressure |
Vacuum Pressure |
Length |
152----6" |
182-----7-1/4" |
1.2-----12 |
2.4----24 |
80----0.8 |
20 |
203----8" |
233----9-1/5" |
1.2-----2.4 |
2.4----24 |
80----0.8 |
20 |
254----10" |
284----11-1/5" |
1-----10 |
2----20 |
80----0.8 |
10 |
304----12" |
340----13-2/5" |
1-----10 |
2----20 |
80----0.8 |
6-10 |
350----14" |
390----15-2/5" |
1-----10 |
2----20 |
80----0.8 |
6-10 |
450----18" |
486----19-1/5" |
0.7-----7 |
1.5----15 |
80----0.8 |
6-10 |
550-----22" |
590----23-3/5" |
0.7-----7 |
1.5----15 |
80----0.8 |
6-10 |
600----24" |
640----25-3/5" |
0.7-----7 |
1.5----15 |
80----0.8 |
6-10 |
700----28" |
750----29-3/5" |
0.7-----7 |
1.5----15 |
80----0.8 |
6-10 |
800----32" |
850----33-1/2" |
0.5-----5 |
1----10 |
80----0.8 |
6-10 |
1000----40" |
1050----41-1/2" |
0.5-----5 |
1----10 |
80----0.8 |
6 |
1200----48" |
1250----49-1/5" |
0.5-----5 |
1----10 |
80----0.8 |
6 |
1300----52" |
1350----53-1/5" |
0.5-----5 |
1----10 |
80----0.8 |
6 |
Mainly produces:
1. Resistance burning antistatic high pressure steel wire spiral rubber hose, high pressure braided hose, high temperature resistant rubber hose,CONCRETE PUMP HOSE.
2. Super high pressure steel wire hose and high pressure hose assembly.
3. Drilling hose,Floating Dredging Hose,Marine oil hose large caliber,Dredger Hose,Flame resistant hose,Dredger Suction and Discharge Hose.
4. Oil field special rubber seals.
5. Solid control parts: Hammer Union, Air Grip Unions, mud tank unions.
6. Air Operated Thread Protectors,Mech-Tec (TM)Clamp-On Thread Protectors.
The company since its inception, relying on science and technology for development. Established long-term cooperative relations with chemical shenyang rubber research institute, has the research, development, production of hundreds of special rubber products, in the domestic each big oil fields, steel mills, mining, machinery and other industries has been the user's consistent high praise, and exported to South Korea, Mongolia, Russia and other countries.
Any needs for API 7K Drilling hose, Concrete hose, High pressure hose, hydraulic hose and Hammer Union, just contact me!
