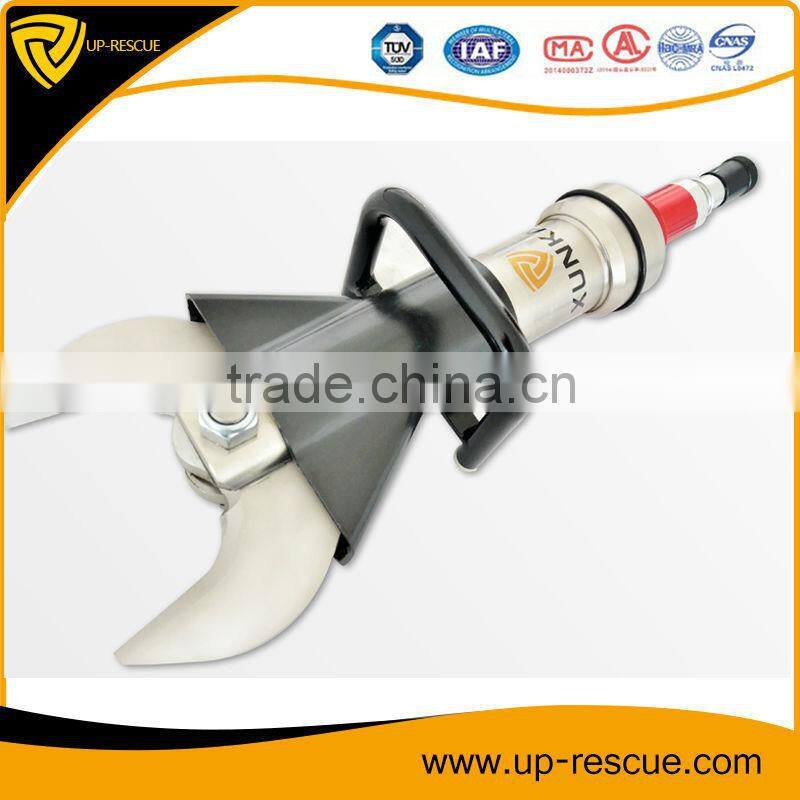

Emergency knife hydraulic cutter tools rescue tool hydraulic cutter
| Hydraulic cutter | ||
Model |
XHC-420/160-M | |
Max. Opening Distance of Blades |
≥160mm |
≥6.3in. |
Rated Working Pressure |
700bar |
10150 psi |
Max. Cutting Capacity(Q235 steel) |
15mm(steel plate)Φ28mm(circle steel) |
0.6 in.(steelplate)
Φ1.1 in.(circle steel)
|
Max. Cutting Force |
420KN(42T) |
92594 lbs |
|
Opening Time without Load
(Powered by motor pump)
|
≤25s |
≤25s |
|
Closing Time without Load
(Powered by motor pump)
|
≤30s |
≤30s |
Weight(working condition) |
≤13kg |
≤28.7 lbs |
Dimension(L*W*H) |
690*210*170mm |
27.2*8.3*6.7 in. |

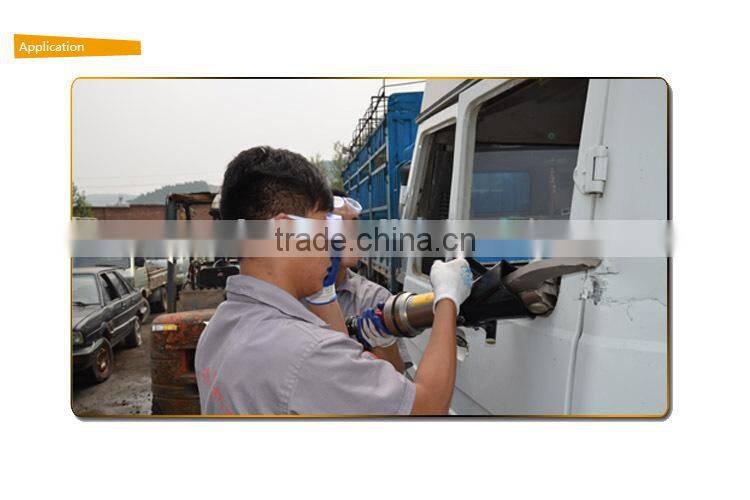

#1.High-way traffic accidents, railway accident rescue;
#2.Earthquake, buildings collapse, fire disaster and shipwreck rescue;
#3.Firefighting emergency rescue.
Rescue tool firefighting special hydraulic cutter Feature
#1.Mono Coupler, discharge with pressure.

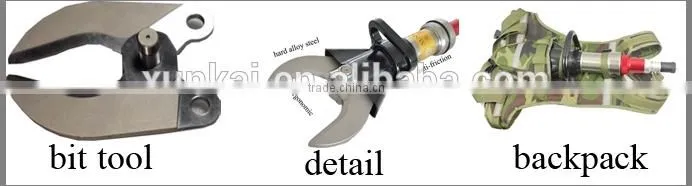

#2.Shearing Blade adopt High-quality Heat-treated Tool steel, with surface anodized, good in wearing resistance;
#3.Cut off vehicle parts, metal structure, heterogenic steel pipe, steel plate and so on easily and quickly;
#4.With Protective cover to prevent the splash during shearing, also automatic reset manually valves, can provide safety for the operator;
#5.Blades fix on any position, no retraction to hold a rescue space;
#6.Can be used by person of both left and right hand habit;

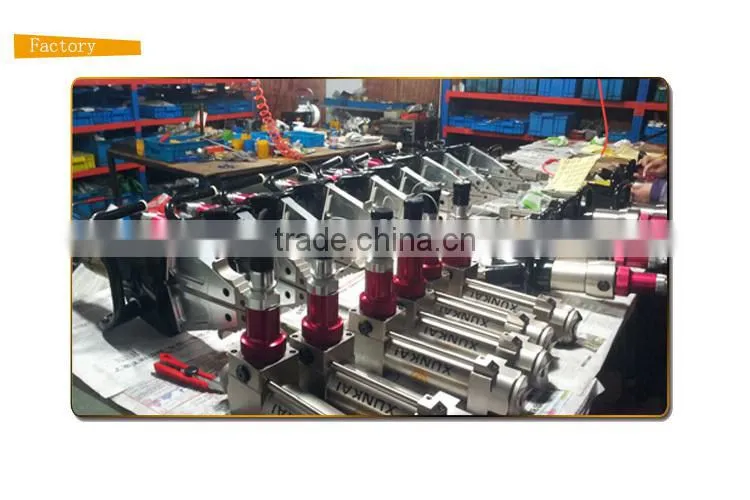

Our Factory
In china,our main customer is government organization and some trade company.By tender or other way to have better cooperation with government organization.
Mono coupler,turbo function,double output,lightweight and multifunction is our rescue tools feature.
We have professional sales and technology team to solve any problem from our customer.Contact us!Let' talk details.
