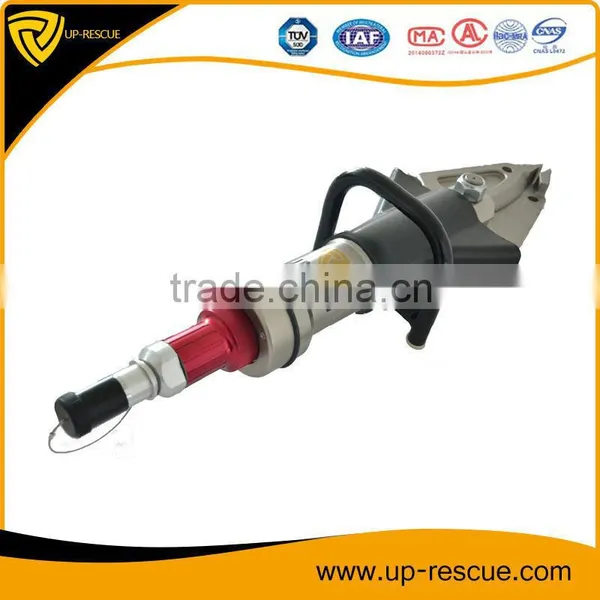

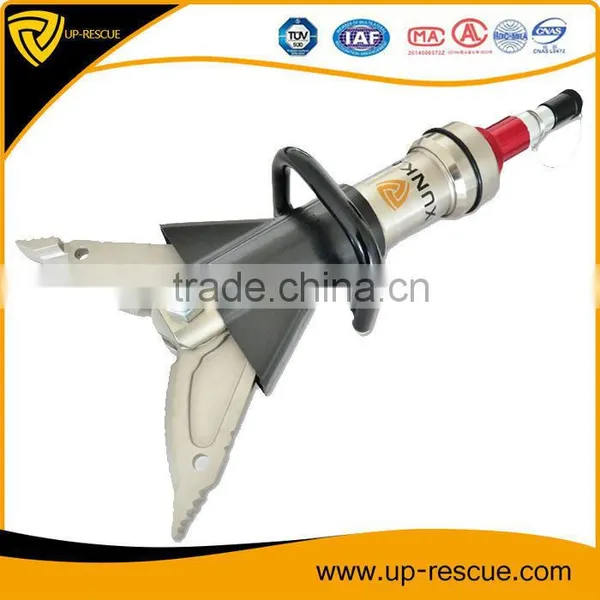

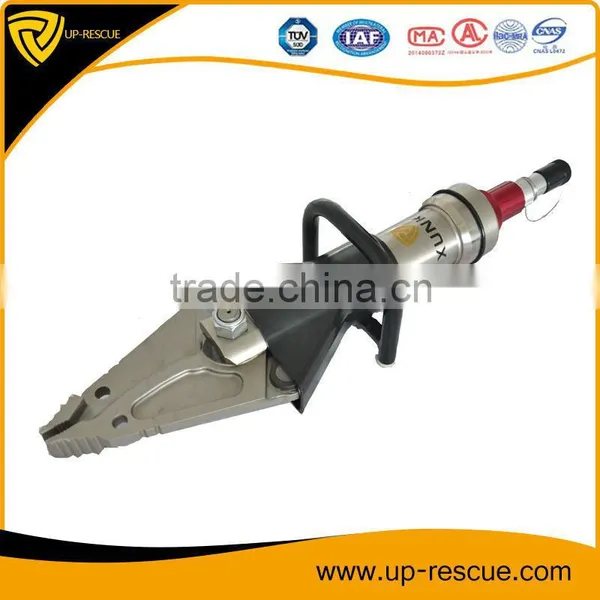

2015 XUNKAI High Quality New Style Emergency Hand Held Hydraulic Combination For Rescue
Rescue Cutting and Spreading Tool Technical Parameter
| Rescue Cutting and Spreading Tool | ||
Model |
XHSC-35/325-M |
|
Max. Opening Distance of Blades |
≥360 mm |
≥14 in. |
Rated Working Pressure |
700 bar |
10150 psi |
Max. Cutting Capacity(Q235 steel) |
15 mm(steel plate);Φ28 mm(circle steel) |
0.6 in.(steel plate); Φ1.1 in.(circle steel) |
Max. Cutting Force |
325 KN(32.5T) |
69500 lbs |
Max. Spreading Force |
35 KN(3.5T) |
7484 lbs |
Hauling Distance |
230 mm |
9 in. |
Rated Hauling Force |
55 KN |
12100 lbs |
Weight(working condition) |
≤14 kg |
≤30.8 lbs |
Dimension(L*W*H) |
765*210*170 mm |
30.1*8.3*6.7 in. |

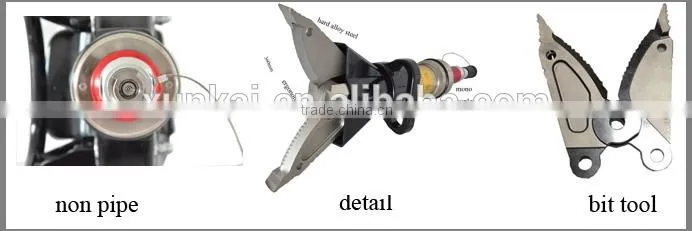

#1. MONO COUPLER, without hoses design;

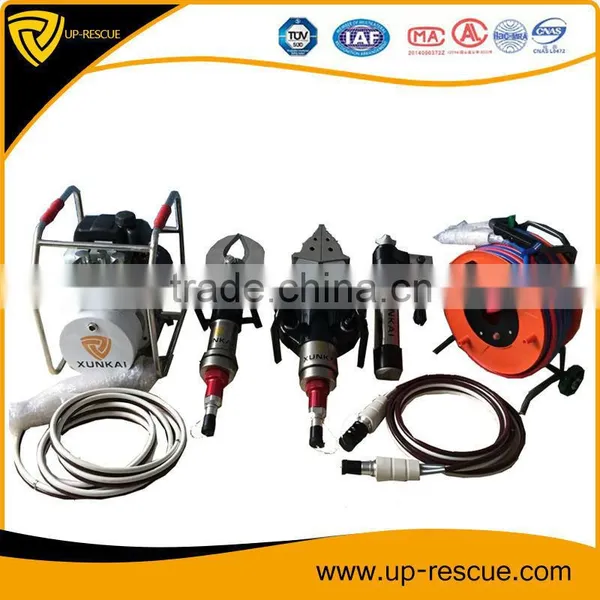

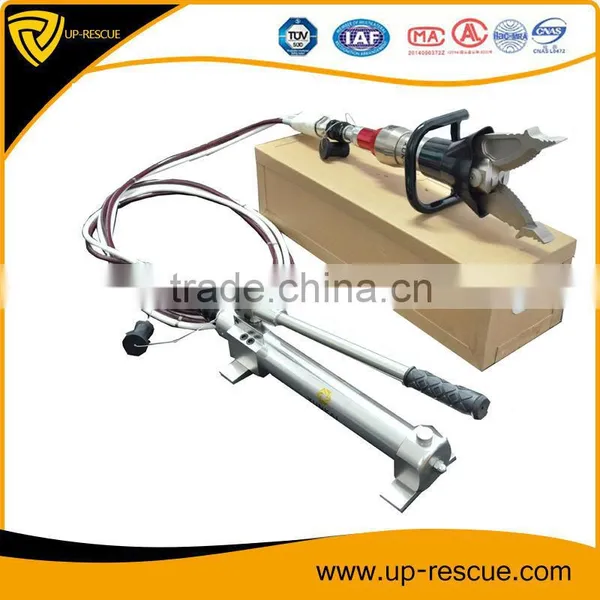

#2. Powered by hydraulic pump, battery pump and hand pump;
#3. Hydraulic pump with Turbo Function.
#4. Suitable for rescue operations maneuverable;
#5. Unclenching the door and metal structure into deformation;

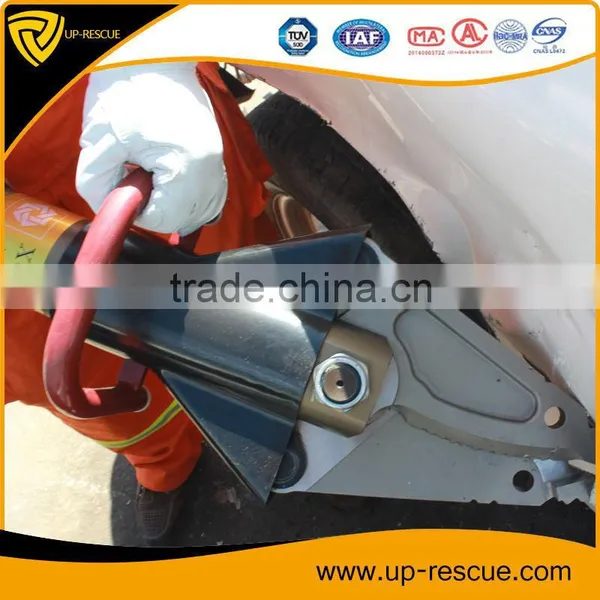

#6. Cut metal structure, vehicle parts, pipeline and metal plates

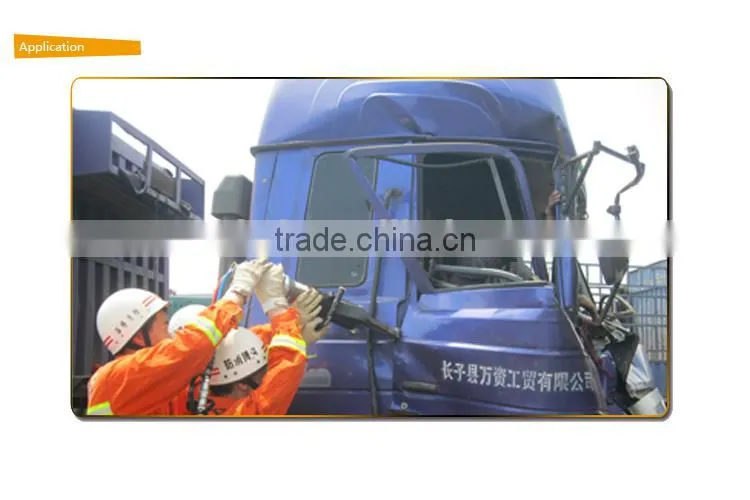

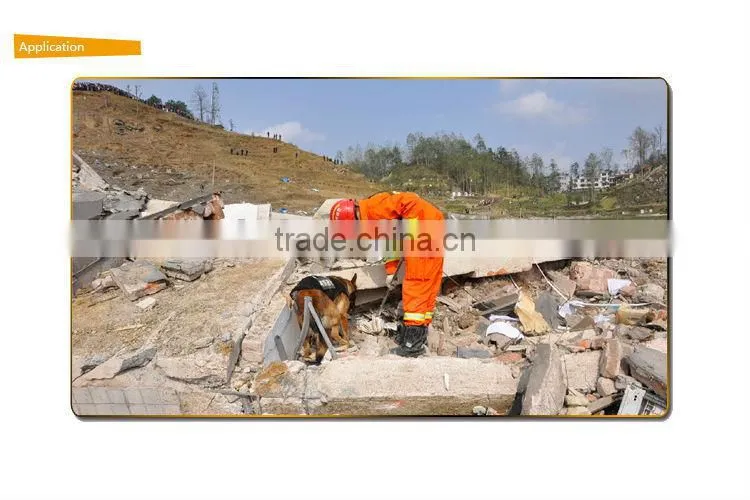

Rescue Cutting and Spreading Tool Application
Highway, railway accident rescue, air crash and beach relief; Buildings and disaster relief.
Moving obatacles ,top objects,create rescue channels and maintain object stable.
| Package Size for you caculate the freight |
| Wooden Case Size |
89*27*22cm |
| G.W | 15KG |
| Delivery Time | |
| As normal,the delivery time is 5-7 working time since full payment (please contact sales representatives for exacttime each order) | |

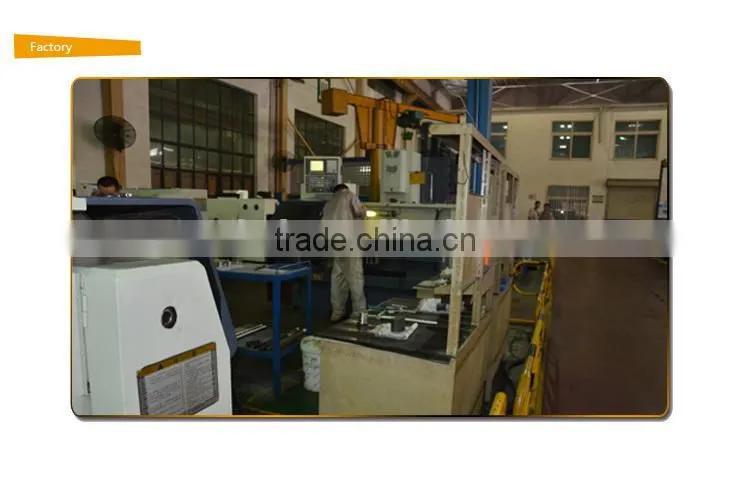

XUNKAI fire equipment Co.,Ltd. is located in Jinan, the capital of Shandong Province-Spring
city. XUNKAI is the professional manufacturer for rescue tools collection of research, manuf-acture, sales and service.
XUNKAI has a number of outstanding professional technical and sales management team.Res-cue series products are widely used in fire rescue,highway, railway and other traffic accident
rescue,police rescue,building collapse rescue,earthquake disaster relief.And provide systemati-crescue plan and consulting services.To enhance the quality of domestic rescue tools as our
duty.Indepthresearch and development. Adopt in the domestic leading level of manufacturing
technology andcraft on the base of the core products, greatly improve the efficiency of rescue,
for life insurance.
Warranty
1.One year warranty under normal use.We will be in charge for replacement or repair it
for free if there is any problem caused by the tools quality.
2.24 hours technical support by Hhone,Email,Skype,MSN
3.Friendly English working manual,popular and easy to understand
Countries We Exported to
Our products are exported to more than 20 countries, like USA, Italy, Ukraine,
India, Indonesia, Philippine, Bangladesh,Turkey, South Africa,Nigeria,Sudan,Libya,Albania,France,Spain,Ecuador,Iran,Korea,Thailand etc.
Payment Terms
1. T/T in advance
2. West Union:we can accept small payment(below$3000), but the banking charges shall
be paid by the buyer.
3. L/C is acceptable if the amount is bigger than $100,000. Please issue the L/C draft for
our confirmation first.
