Home > Products > Marine rubber airbag > 1.5M*12M marine rubber air bag / lift rubber airbag with CCS CERTIFICATE
1.5M*12M marine rubber air bag / lift rubber airbag with CCS CERTIFICATE
- 50 Piece / Pieces per Month
- Qingdao
- T/T
Product Details
Place of Origin: | Shandong, China | Brand Name: | HAOZHIYUE | Model Number: | HZY-6 |
Part: | Other |
Product Description

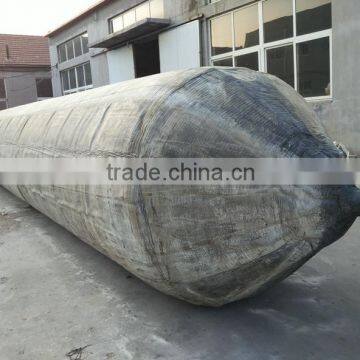

1.5M*12M marine rubber air bag / lift rubber airbag with CCS CERTIFICATE
Product Introduction:
Marine ship airbags are also known as air balloon, inflatable bags, roller bags, air lifting bags,
salvage bags. Airbags now are used for ship launching, loading, and floating. They are widely used in cargo boat/ship/vessel launching and landing, lifting and moving sunken ships, and salvaging
stranded boats. Air bags have the benefit of not only saving labor and time, but investment costs.
they are flexible, portable, and dependable. Therefore, airbags are widely used in slipping of ships
and boats of all sizes.
Structure of the Airbag
Constructions:
Ship Launching / Landing Airbags, basic body are consisted of our rubber layers, synthetic-cord-reinforced rubber layers, are kind of a cylindrical airbags with hemispherical heads at the both ends. All of these are vulcanized together, and then compress air inside to enable it to roll.
1. Outer Rubber: The outer rubber layer protects the cord layers from abrasion and other external forces. This compound has sufficient tensile and tear strength to withstand any weather condition and hard usage. Standard color is black.
2. Synthetic-netcord Layer for Reinforcement: The reinforcement cord layers, which are made
of Synthetic-tire-cord commonly used in tires, are arranged at ideal angles to hold the internal
pressure and to distribute the stress evenly providing strong efficient reinforcement.
3. End Fittings: End fittings include air tightness swivel and airbags safety air inlet.
Specifications:
The standard specifications of Airbag for Ship Launching and Landing are listed as follows (We can also supply customized size as per specific requirement):
Diameter (D): | From 0.8m to 2.4m |
Effective Length (EL): | From 6.0m to 20.0m |
Total Length (TL): | From 7.0m to 21.5m |
Standard Number of Layers: | Usually 4-10 layers |
Loading Capacity: | About 10-40 T/M |
Applications:
1. Shipwreck salvage
2. Floating bridge and dock construction
3. Rescue and remove of wrecked ship
4. Can be used as pontoons for supporting docks and other floating structure.
Performance:
1. We adopt the most advanced winding process to increase the bearing capacity and moment resistant capacity of airbags.
2. Compared with traditional launching track, the advantages of airbags is more flexibility. They are characterized by high resistance, high gas tightness, ageing resistance, and corrosion resistance.
3. Easy to install and dismantle on the wharf and anchor mast.
4.Good after-sales service and long serving life.
Manufacturing process
Certificate
Q1.What's the material for your products?
A.Material: natural rubber, rubber-dipped Nylon cord fabric.
Q2.What's the life span of your products? And how long of the guaranty period?
A.The life span is 6-10 years and the guaranty period is 2 years.
Q3. What's certificate can your company provide and what's the MOQ of your products?
A. We can provide you the certificate of CCS.BV.ABS.etc.And the MOQ is 1 pc.
Q4. If you have a factory? and how many years experience for your factory on this line?
A.Yes, we are a factory with more than 20 years experience on the line of marine rubber fender and rubber airbag, started from the year of 1992. Just contact us,we can provide OEM and ODM ordersQ5.What about your delivery time? Can we receive our goods on time?
A.Usually one weeks after receive your deposit.exact delivery time depends on exact quantity, We regards clients' time as gold,so we will do our best to deliver goods on time.
Q6.What about your payment?
A.30% deposit should be payed before the production,70% balance payed before shipment. T/T, L/C(Irrevocable L/C at sight).
Q7.How to contact your company?
