Specifications
plastic Insulated control cablerich manufacture experience
IEC,DIN,ASTM standard
Best serive for yo
- plastic Insulated control cable is suitable for connecting wired between electric eqipments in controlling , monitoring loop and protecting circuit at rated voltage up to and including 600/1000V(A.C.). the product has not only the excellent characteristics in electric and mechanical purpose but also in performances of chemical corrosion resistance , heating –aging environmental stree and flame- retardant , the product has simple construction and convenient to use and could be laid with no restriction of different levels.
- Rated volatage U0 /U should be 450/750V-600/1000V.
- The permitting long-term operating temperture of cable conductor should be: PVC insukation: 70 ℃
- The installing temperature of cable should not be less than 0 ℃.Recommending permitted bending radius:Non-armoured cable: not less than the overall diameter of cable by 6 times.
Shielded flexible cable: not less than the overall diameter of cable by 6 time

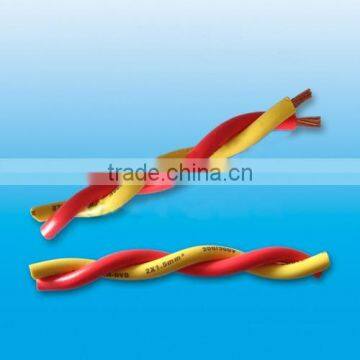

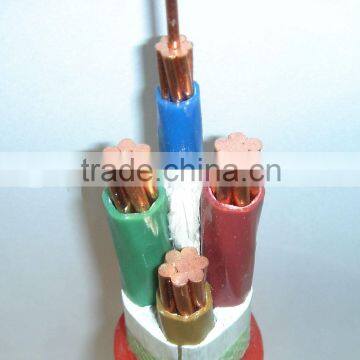

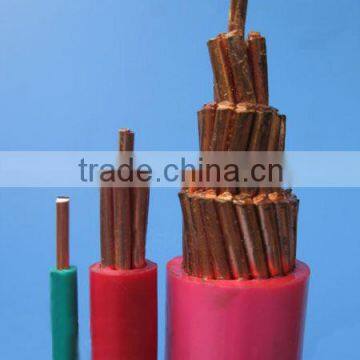

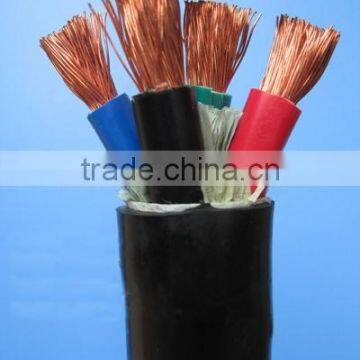

plastic Insulated control cable
Type | Name | Section Area(mm2) | No. of Core | Application Site |
KVV | Copper Conductor,PVC Insulated and Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-16 | Permanent installation indoors,in cable ditches or pipes |
4 6 | 2-14 | |||
10 | 2-10 | |||
KVVP | Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable | 0.75 1.0 1.5 2.5 | 2-61 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
4 6 | 2-14 | |||
10 | 2-10 | |||
KVVP2 | Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable | 0.75 1.0 1.5 2.5 | 4-10 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
4 6 | 7-61 | |||
10 | 4-10 | |||
KVV22 | Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force |
4 6 | 4-14 | |||
10 | 4-14 | |||
KVVR | Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable | 0.5-2.5 | 4-61 | Installation indoors where flexibility and movability are required |
KVVRP | Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable | 0.5 0.75 1.0 | 4-61 | Installation indoors where flexibility shielding and movability are required |
1.5 2.5 | 4-48 | |||
KYJV | Copper Conductor,XLPE Insulated and PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-16 | Permanent installation indoors,in cable ditches or pipes |
4 6 | 2-14 | |||
10 | 2-10 | |||
KYJVP | Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-61 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
4 6 | 2-14 | |||
10 | 2-10 | |||
KYJV22 | Copper Conductor,XLPE Insulated,Steel-tape Armoured,PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors,in cable ditches,pipes or underground Be cable to with stand stronger external mechanical force |
4 6 | 4-14 | |||
10 | 4-10 | |||
KYJVP2 | Copper Conductor,XLPE Insulated,Copper tape Screened,PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
4 6 | 4-14 | |||
10 | 4-10 | |||
KYJVR | Copper Conductor,XLPE Insulated,PVC Sheathed Flexible Control Cable | 0.5-2.5 | 4-61 | Installation indoors where flexibility and movability are required |
KYJVRP
| Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Flexible Control Cable
| 0.5 0.75 1.0 | 4-61 |
Installation indoors where flexibility shielding and movability are required |
1.5 2.5 | 4-48 |
- Are your company a factory?
Yes, we are a manufacture with rich experience. Our facory are located in zhengzhou,henan province, the center of China. And the transportation is convenient .
- How can I get the samples?
It's our pleasure to offer you the samples .We'd like to supply samples according to your requirement.
- What's the MOQ?
The MOQ is different as the size and type of wire and cable is differnent. Pls feel free to contact me to confirm it.
- What's your market?
Our products are mainly exported to the Middle-east, South Asia,Europe,Africa,North-America,South-America etc.
- What's the standard of your products?
Our products are comply with the GB,IEC,ASTM,DIN,BS standard etc.We can also produce according to our customer's special requirement.
If you want to know more information, pls feel free to contact me.
Name: Miss Sarah Zhao
Email: shcable012 at
MSN : sarahzhao68 at
Trade manager : cn1511725538
