Welcome to Customize all kinds of L2 ethernet switch/POE switch/POE splitter/POE injector/wifi ap/router/CPE etc!High quality reasonable price fast lead time!

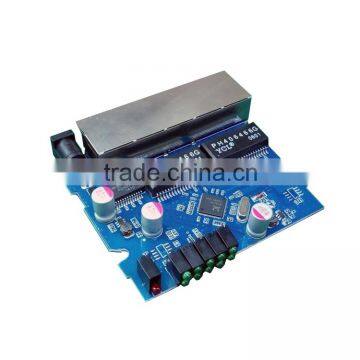

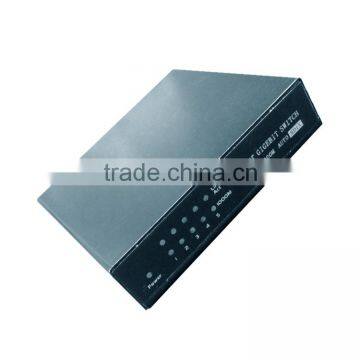

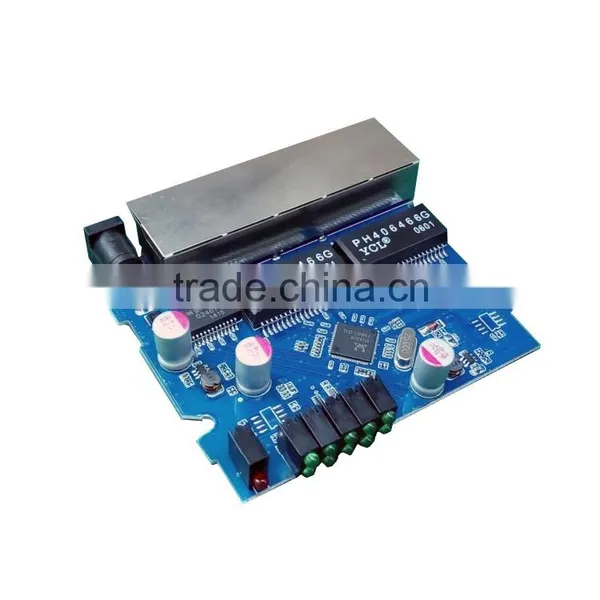

Mini 5 port ethernet switch gigabit
Original RTL8367 chipset
Comply with CE,RoHS,FCC
Features:
- Supports IEEE802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- Supports MAC address auto-learning and auto-aging
- LED indicators for monitoring power,link,activity
- External power adapter supply 12v 1a
- CE&ROHS&FCC certificate
Specifications:
| Standards and Protocols | IEEE802.3, 802.3u, 802.3ab, 802.3x |
| CSMA/CD, TCP/IP | |
| Chipset | Original Realtek 8367 |
| MTBF | 87,600hours (10 years) |
| Basic Function | Wire-speed Performance |
| MAC Address Auto-Learning and Auto-aging | |
| IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode | |
| Switching Capacity | 10Gbps |
| MAC Address Table | 4k |
| Forwarding Rate | 10BASE-T: 14880pps/port |
| 100BASE-TX: 148800pps/port | |
| 1000BASE-T: 1488000pps/port | |
| Transmission Method | Store-and-Forward |
| Ports | 5 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) |
| Network Media | 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) |
| EIA/TIA-568 100Ù STP (maximum 100m) | |
| 100Base-Tx: UTP category 5, 5e cable (maximum 100m) | |
| EIA/TIA-568 100Ù STP (maximum 100m) | |
| 1000Base-T: UTP category 5e,6 cable (maximum 100m) | |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) |
| Storage Temperature: -40°C~70°C (-40°F~158°F) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
| LED Indicators | Power,10/100M,1000M |
| Package Size | 88*80*20cm |
| Unit weight | 350g |
| AC adaptor | 12V 1A |
Package contains:
1* Mini 5 port Ethernet Switch Gigabit
1* User Manual
1* External power supply 12v 1a
Shipping by EMS/FedEx/DHL/UPS/TNT/Air/Sea etc.
50pcs/ctn,kraft paper box or OEM package.
•All products have been checked and packaged in good condition before dispatching.
•All products have 2 years warranty.
•Provide OEM/ODM service.

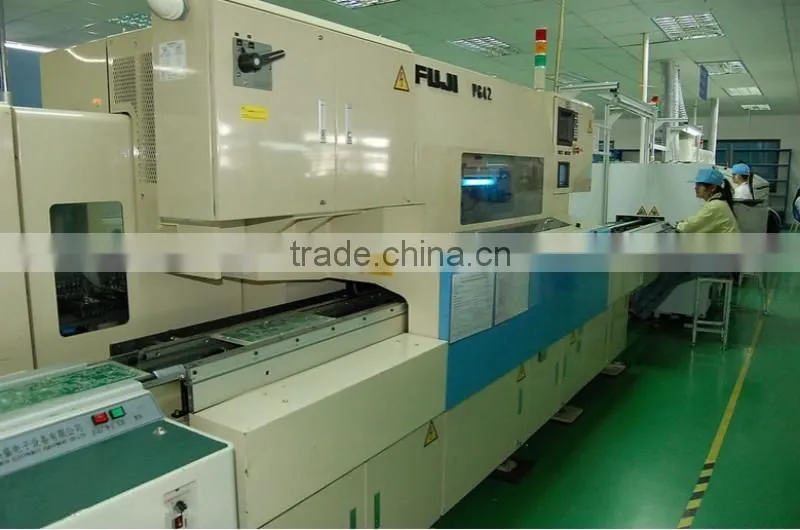

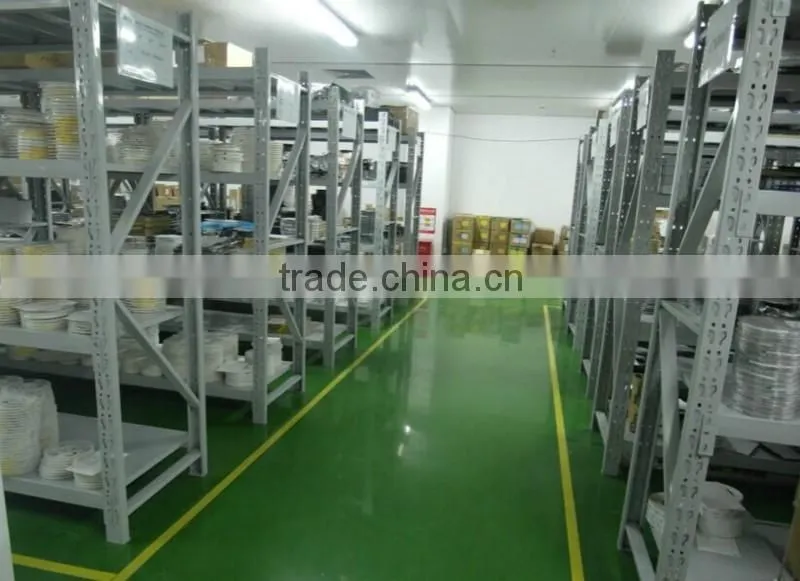

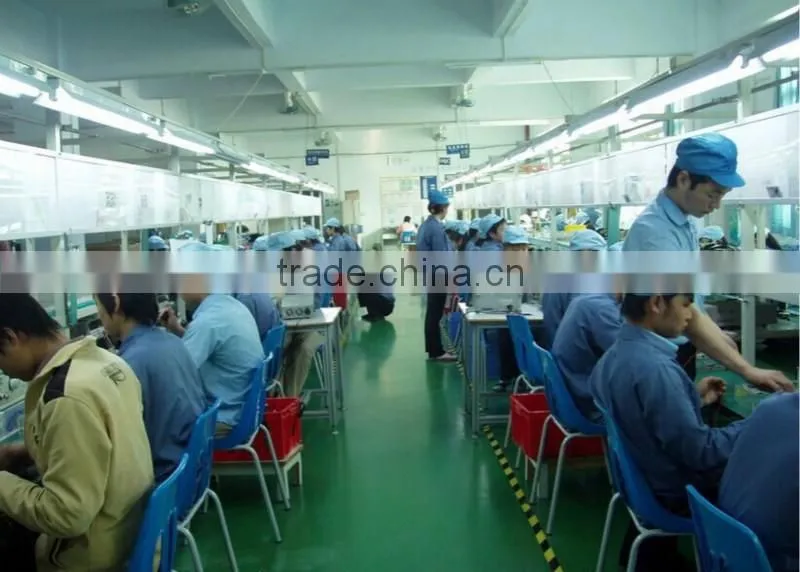

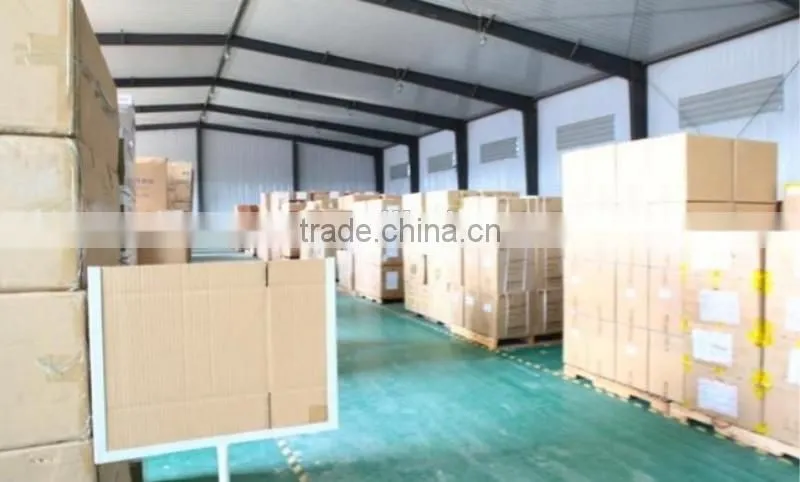

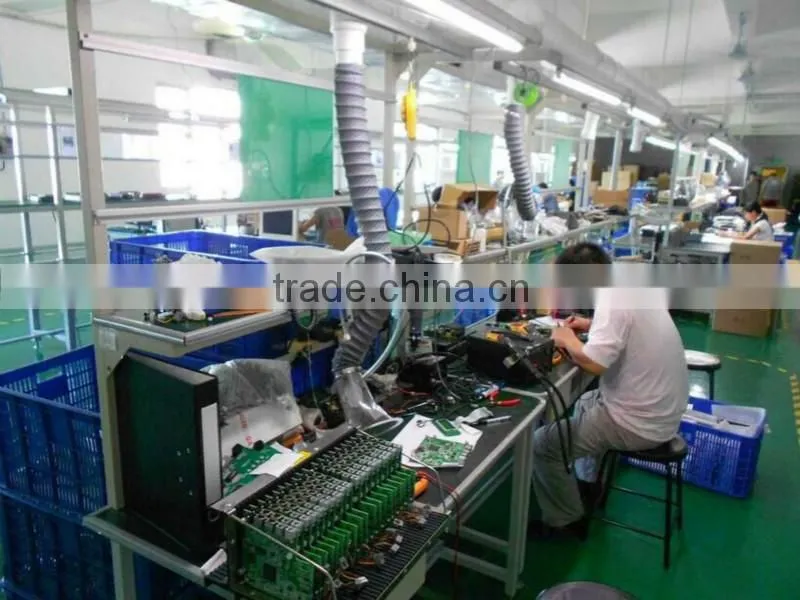

Shenzhen APT Communication Technology Co.,Ltd.is located in Shenzhen China,establishedsince 2012.
We provide OEM/ODM manufacturing service for network equippment hardwares like Ethernet.
switch/POE switch/Splitter/Injector,WIFI access point/router/bridge/CPE,media
converter/Fiber switch etc.
We have experienced engineer team to design excellent performance hardwares at reasonable.
price and fast lead time.Our engineers used to develop H3C products.
Do you provide OEM service?
Yes, we mainly provide OEM/ODM manufacturing.
Do you provide only PCBA?
Sure,PCBA is welcome also.
Do you provide firmware support?
Yes,support.
Is there MOQ limit?
Welcome to place sample order to check the quality before bulk orders.
Also welcome to visit our factory before bulk order.
Of course,different qty with different price.
Since we mainly do OEM/ODM orders.So large qty makes the cost lower.
