Help CenterMini 5 Port 10/100mbps Ethernet Switch Board for Embedded System Wiring
Related Products
-
5 Port Mini Pin Head Ethernet Data Switch ModuleUS$ 1 - 12MOQ: 1000 Units -
Soho 5 Port 4pin Head Port Network Switch 10/100mbps,3.3v Ethernet Switch ModuleUS$ 1 - 12MOQ: 1000 Units
-
24 Port Gigabit Ethernet Switch,2 1310nm A 1550nm B Sfp Network Switch EnclosureUS$ 50 - 70MOQ: 200 Units
-
16+2 SFP Full Gigabit Network SwitchUS$ 50 - 70MOQ: 200 Units
-
OEM 100*45*15mm Mini 4 Port Ethernet Switch BoardUS$ 1 - 9.9MOQ: 500 Units
Welcome to Customize all kinds of ethernet switch/POE switch/POE splitter/POE injector/wifi ap/router/CPE etc!High quality reasonable price fast lead time!

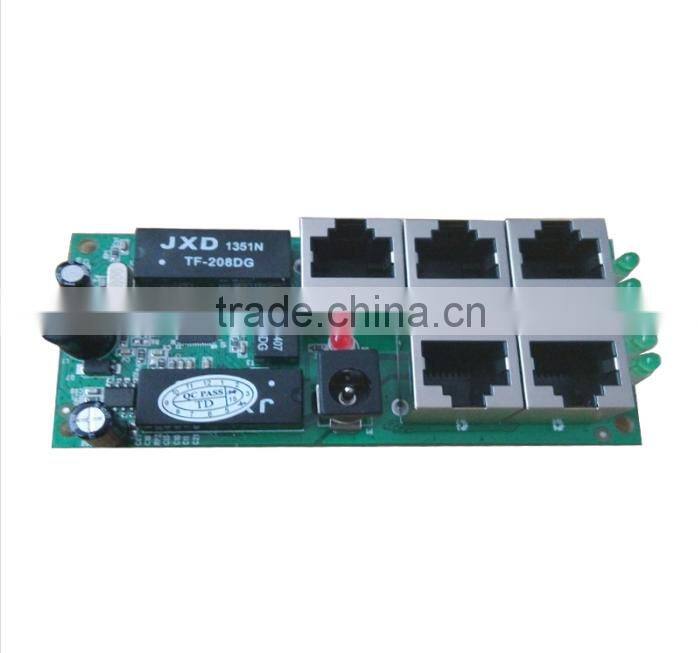

APT-ESB105 is a mini compact 5 port 10/100mbps ethernet switch board.It has 5 180degree 10/100mbps rj45 built-in.Plug n play,no need to configuration.The input voltage ranges from 5v to 12v DC.
The power,link/act led indicators provide a fast trouble shooting solution.
Mini design,compact,easy to install,plug n play,stable&reliable,affordable makes it very popular.It's widely used to be deployed in the integrated systems for data transmission.
Features
Complies with IEEE802.3,IEEE802.3u standards
3 10/100Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Support IEEE 802.3x flow control for full duplex mode and backpressure for half duplex mode on all port
Non-blocking switching architecture that forward and filter packets at wire-speed for maximum throughput
Support MAC address auto-learning and auto-aging
LED indicators for monitoring power,link/activity

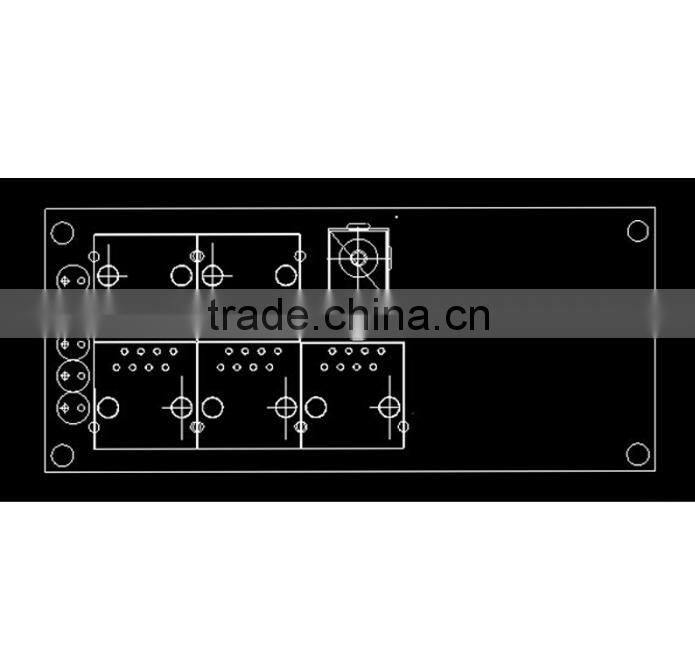

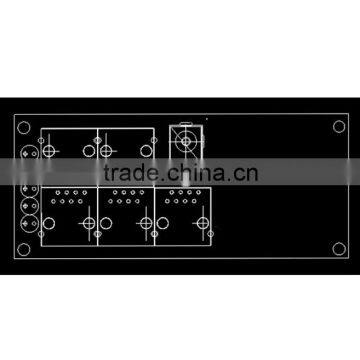

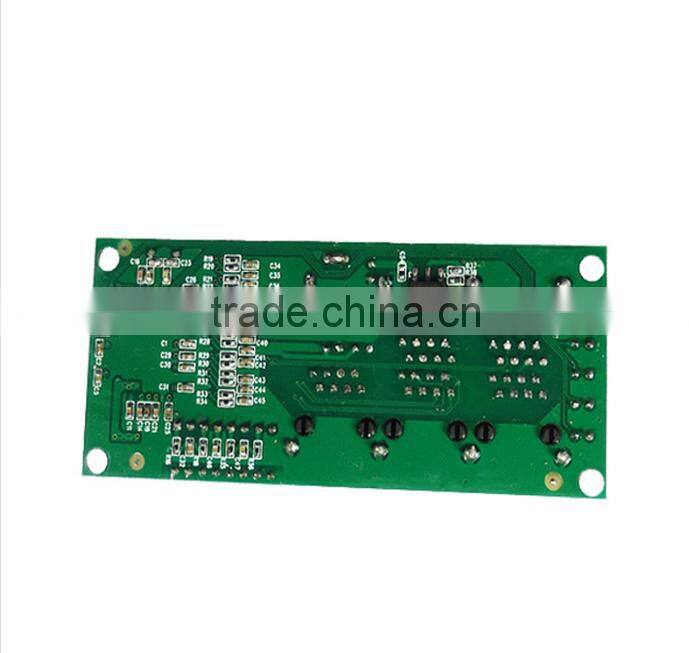

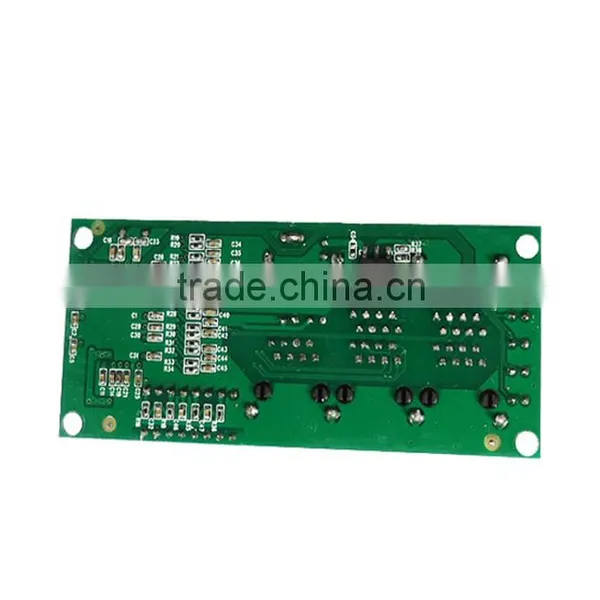

Mini cabling size design,PCBA size:95x 41.5x 18mm
Welcome to OEM
Specifications
Standards |
IEEE802.3 10Base-T Ethernet IEEE802.3x flow control |
protocol |
CSMA/CD |
Transmission Rate |
Ethernet 10Mbps (half duplex),20Mbps (full duplex); 10BASE-T:14,880pps/port |
Topology |
Star |
Network Medium |
10Base-T:Cat 3 or above Cat.3 UTP(≤100m) 100Base-TX:Cat 5 UTP(≤100m) |
Number of Ports |
5port 10/100M RJ45(180 degree) ports |
UPLINK |
Any port (support Auto-MDI/MDIX function) |
Transmits Method |
Store-and-Forward |
Temperature |
Operating Temperature -20 C~60 C (-4 F~140 F) Storage Temperature -40 C~80 C (-40 F~176 F) |
Humidity |
Operating Humidity 10%~90% non-condensing Storage humidity 5%~95% non-condensing |
Switch capacity |
1G |
|
LED Indications
|
1*power LED(Power:Red or green) 5*port LEDs(Link/Act:Green) |
Dimension(W x H x D) |
95x 41.5x 18mm |
Weight |
80g |
Power Supply |
DC 5-12v |
Case Material |
no |
Shipping by EMS/FedEx/DHL/UPS/TNT/Air/Sea etc.
400pcs/ctn,kraft paper box or OEM package.
•All products have been checked and packaged in good condition before dispatching.
•All products have 2 years warranty.
•Provide OEM/ODM service.
Shenzhen APT Communication Technology Co.,Ltd.is located in Shenzhen China,establishedsince 2012.
We provide OEM/ODM manufacturing service for network equippment hardwares like Ethernet.
switch/POE switch/Splitter/Injector,WIFI access point/router/bridge/CPE,media
converter/Fiber switch etc.
We have experienced engineer team to design excellent performance hardwares at reasonable.
price and fast lead time.Our engineers used to develop H3C products.
Do you provide OEM service?
Yes, we mainly provide OEM/ODM manufacturing.
Do you provide only PCBA?
Sure,PCBA is welcome also.
Do you provide firmware support?
Yes,support.
Is there MOQ limit?
Welcome to place sample order to check the quality before bulk orders.
Also welcome to visit our factory before bulk order.
Of course,different qty with different price.
Since we mainly do OEM/ODM orders.So large qty makes the cost lower.
