Specifications
1.high quality electric hydraulic operation table2.stainless steel material
3.CE/FDA/ISO

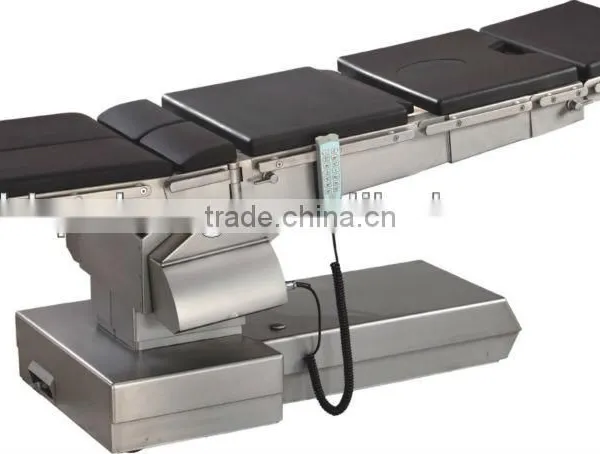

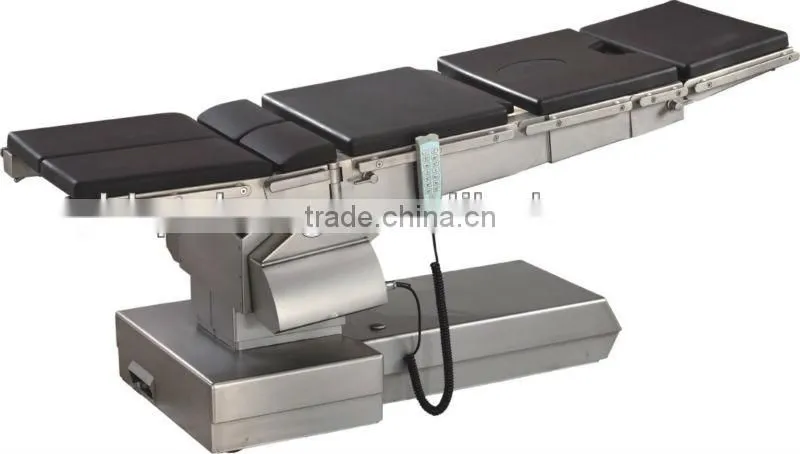

high quality pukang electric hydraulic operation table DS-12E
Specs:
DS-12E Electric operation table
♦ It adopts imported electric appliances and electric hydraulic system.
♦ The table platform consist of 5 movable parts, and it is suitable for all kinds of surgeries.
It is fit to special operative posture, C arm X-ray inspection and radiography.
♦ It is equipped with X-ray rack and cassette specifically for C arm users.
♦ The control device is equipped with safety locking key protecting from misoperation.
One-key restoration device is installed.
♦ Unilateral column design and large space under the table ensure adequate space to
install C arm X-ray apparatus and other device.
♦ Steering control switch and internal universal steering wheel make the table move and rotate freely when needed.
♦ The head board and leg board are detachable and interchangeable, while the leg board can be
forked and lengthened.
♦ Generous, nice looking and humanization design make the gravity centre of the clinicians stable
to reduce fatigue during the operation.
♦ The shell is made of stainless steel.
The mattress is made of new material by new technology, which makes it have many advantages such as easy to clean,
acid and alkali resistance, anti-bacterial, shock resistance, comfortable and generous.
Mandatory Accessories:
♦ Screen frame 1set ♦ Single-sheet arm rest 1set
♦ Body restraint 1set ♦ Knee crutches 1set
♦ Body and shoulder support 1set
When the tabletop rises by 100mm and stays horizontally,each posture of the operating table
should conform to the specifications in Table1
Item Parameter Ifem Parameter
Tabletopforward forward>20° Head board turn up≥400; down≥900
and backward (max)
obliquity(max) backward>15° Foot plates down ≥900
(max)
Tabletop leftward leftwar>15° Back board up >700
and rightward (max)
obliquity(max) rightward> 15° Buttocks board up ≥80mm
(max)
Tabletop height(bottom/top) 670~900mm Table length 2060mm Table width 520mm
Supply voltage 220V±22V,50HZ±1HZ Input power 880VA
Running mode short-term

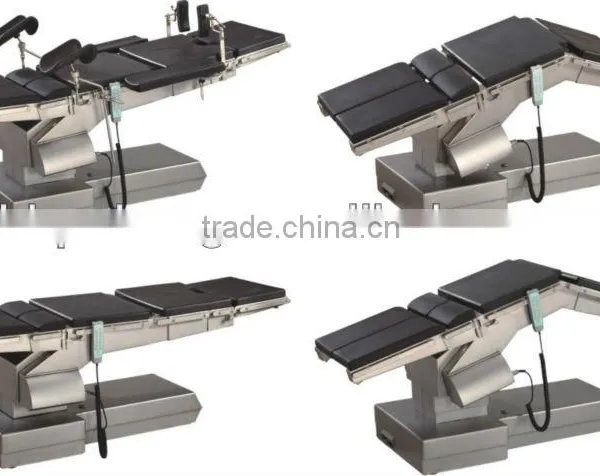

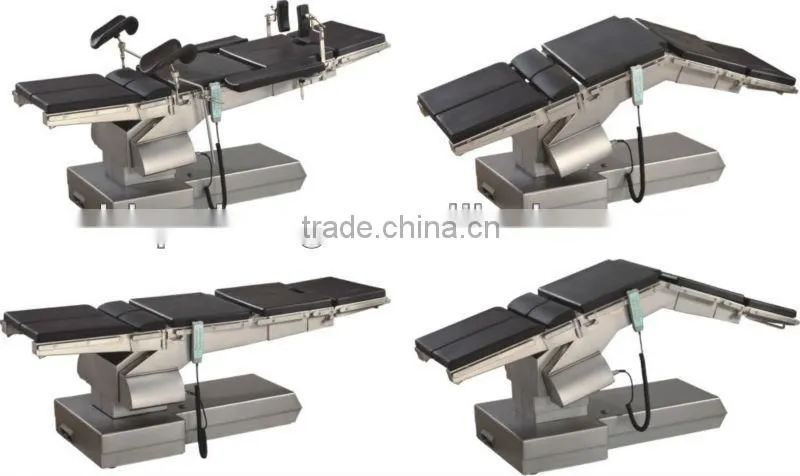

More Photos:
Certification for this stretcher:
Photos for our company:
For any questions pls feel free to ask me :
Jack
Sale Manager
Tel:+89-312-8592888-8124
Fax:+86-312-8592026
