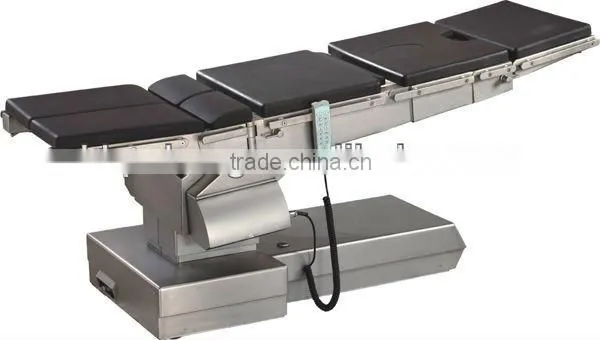

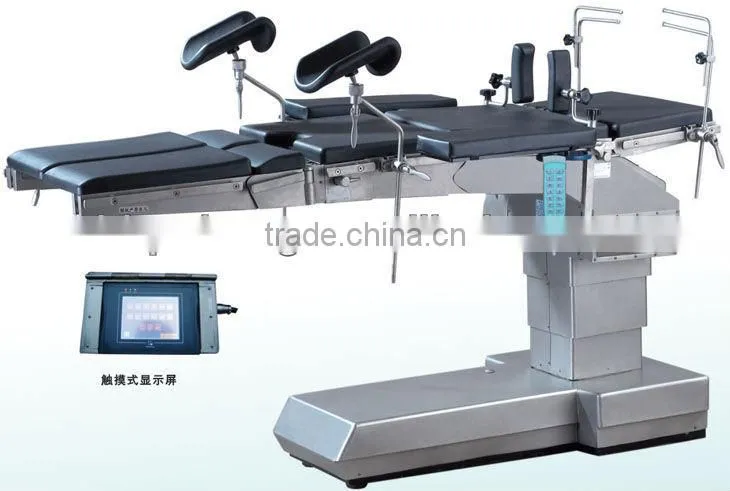

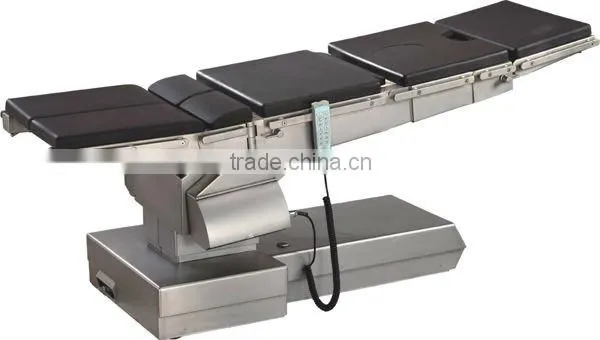

DS-12E Electric operation table
♦ It adopts imported electric appliances and electric hydraulic system.
♦ The table platform consist of 5 movable parts, and it is suitable for all kinds of surgeries.
It is fit to special operative posture, C arm X-ray inspection and radiography.
♦ It is equipped with X-ray rack and cassette specifically for C arm users.
♦ The control device is equipped with safety locking key protecting from misoperation.
One-key restoration device is installed.
♦ Unilateral column design and large space under the table ensure adequate space to
install C arm X-ray apparatus and other device.
♦ Steering control switch and internal universal steering wheel make the table move and rotate freely when needed.
♦ The head board and leg board are detachable and interchangeable, while the leg board can be
forked and lengthened.
♦ Generous, nice looking and humanization design make the gravity centre of the clinicians stable to reduce fatigue during the operation.
♦ The shell is made of stainless steel.
The mattress is made of new material by new technology, which makes it have many advantages such as easy to clean, acid and alkali resistance, anti-bacterial, shock resistance, comfortable and generous.
Mandatory Accessories:
♦ Screen frame 1set ♦ Single-sheet arm rest 1set
♦ Body restraint 1set ♦ Knee crutches 1set
♦ Body and shoulder support 1set
When the tabletop rises by 100mm and stays horizontally,each posture of the operating table
should conform to the specifications in Table1
Item Parameter Ifem Parameter
Tabletopforward forward>20° Head board turn up≥400; down≥900
and backward (max)
obliquity(max) backward>15° Foot plates down ≥900
(max)
Tabletop leftward leftwar>15° Back board up >700
and rightward (max)
obliquity(max) rightward> 15° Buttocks board up ≥80mm
(max)
Tabletop height(bottom/top) 670~900mm Table length 2060mm Table width 520mm
Supply voltage 220V±22V,50HZ±1HZ Input power 880VA
Running mode short-term
Pictures:
Certificate:
Our factory:
Sales area:
Our company introduce:
HEBEI PU KANG MEDICAL INSTRUMENTS CO.,LTD. is a special company producing a series of medical equipments such as beds for nursing, trolley, cupboards, tables, racks and so on.The company is approved by The Medical Administration Bureau and registered in Industrial and Commercial Administration Bureau. The company occupies 123,000 square meters in total and the building area is 92,000 square meters. On one hand, we have a strong producing equipments, more than 560 producing staff and 180 engineers, also we have 16 standard workshops and 2 automatic spurting lines. On the other hand, we ownadvanced techniques. Therefore, we can meet all kinds of needs of different hospitals in all areas completely and independently.
Presently, we have more than ten series of products and over 300 kinds. In 2006, we get the honor of"famous brand in Hebei P.I." The brand "Mini nurse" is awarded the celebrated brand. During these years, we have been awarded many provincial prizes continuously, including "Satisfied in both Quality and Service", "The Client-Trusted Unit", The Best Contractor".
Facing the new chance and challenge, in order to adapt to the demand of market, we setup "Quality Is Life, Management Is Fundamentality". We will try our best to turn out the managing idea "The Best in both Quality and Reputation" and supply to you good quality and services.We are anticipating the cooperation with you
Looking forward to the cooperation with you !
