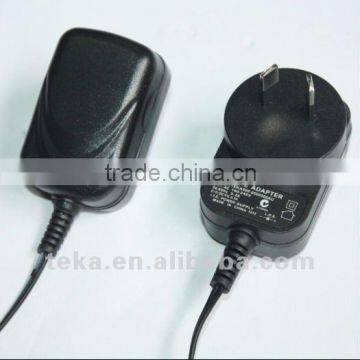

AU plug 6W power supply
- 30000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | TEKA | |
| Model Number | TEKA006-XXXYYYYAU | Output Power | Other, 1 - 50W, 6W | |
| Output Type | Other, DC | Input Voltage | Other, 100-240V, 100-240V | |
| Output Voltage | 3-24V, 3-24V | Output Frequency | 50/60HZ, 50/60HZ | |
| Output Current | 0.1-1.5A, 0.1-1.5A |
Product Description
Specifications
TEKA AU plug 6W power supply1.Productivity:30000pcs/day
2.2-year warranty
3.Fast Leadtime
4.Certificates:SAA, C-Tick, etc.
TEKA AU plug 6W power supply also called power adapter
Product characteristics
Compact size, easy to carry
A constant current, constant voltage mode
Output protection
Overvoltage protection:120%MIN
Overcurrent protection:120%MIN
Technical data
Input voltage 100V-240V AC
Input current 200mA Max
Frequency 50-60Hz
Output voltage range ±5%
Non-load power consumption 0.3 W Max
Energy efficiency Level 5 Energy Star (V 2.0)
Reliability
Average fault-free time under 25°C ambient temperature maximum working load
Average fault-free time 50000 hours
(As per MIL-HDBK-217 Standards)
Environmental requirements
Working temperature 0°C - 40°C maximum working load
Storage temperature -20°C - 60°C
Moisture under non-condensing
condition,moisture5% - 95%
Safety compliance standards
cULus (ITE UL60950 )
TUV/GS(ITE EN60950)
CE, CB, VDE, UL, FCC, CCC(ITE GB4943), SAA, PSE, KC, BS, BSMI, etc.
size: 58*40*34.5mm(65gs SR) OR 60*40*34.5mm(40gs USB).
Output data
Model No. | Output Voltage (V) | Output Current (A) | Ripple (Millivolt) |
TEKA006-XXXYYYYAU | 3.0-24 | 0.1-1.5 | 200 |
Regarding the Model No., TEKA006-XXXYYYYAU,
1. TEKA denotes the company Logo, which can be customized,
2. 006 denotes the output power, say 6W,
3. XXX denotes the output Voltage from 3.0V to 24V, say 030-240,
4. YYYY denotes the output current from 0.1A to 1.5A, say 0100-1500,
5. AU denotes the plug, say US, AU, CH, AR, BS, KA, JP or EU.
