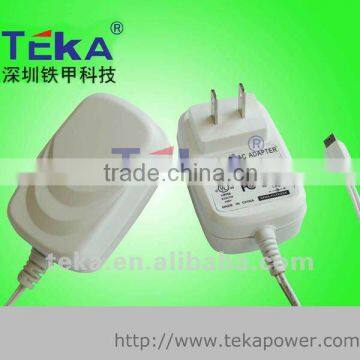

18W US/JP SR AC Adapter

Specifications

18W US SR AC Adapter
1.TEKA Parented Product
2.AC Plug:US/JP.
3.Quality:2-year warranty
4.Certificates:UL,CUL,FCC,PSE(JP)

TEKA Is a Professional Manufacturer of 18W US/JP SR AC Adapter / Power Supply



CHARACTERISTICS:

Compact Size, Easy to Carry;

Constant Current Mode and Constant Voltage Mode (CC, CV)



OUTPUT PROTECTION:

Over-voltage Protection: 120%MIN

Over-current Protection: 120%MIN



TECHNICAL DATA:

Input voltage: AC100V~240V (90V~264V).

Frequency: 50/60Hz (47/63Hz).

Output Power: 6W.

Output Voltage: 3V~24V.

Output Current: 0.1A~3A.

Voltage-withstanding Test: AC3000V / 5mA.

Line Regulation: ±1%.

Insulation Impedance: DC500V /100 mΩ.

Energy efficiency Level: 5-level Energy Star (V 2.0).



RELIABILITY:

Operating Temperature: 0°C~40°C

Storage Temperature: -20°C~+85°C

Operating Humidity: 5%~95%RH

When the output gets short-circuited, the input power will reduce itself for self-protection.  As soon relieving the short-circuit, the product will recover itself to be normal.  All the product is at high power and at low power dissipation, and meets the standard of Power Supply Energy Star, CEC, ERP, MEPS Class V Level.



RELATIVE TESTING:

1. Burn-in Test:Product shall have to be burn-in for at least 4 hours under the temperature of +40°C±5°Cand the rated load of 80%-100%.

2. Dropping Test: at height of 1 meter, the product falls onto the 20mm-thick hardwood which should be put on the cement base or similar ground without any flexibility.  Each side twice dropping test.

3. MTBF Test: at least 50,000 hours at environment of 25°C, rated input and full load.



SAFETY COMPLIANCE CERTIFICATES:

UL,CUL,FCC(US)

PSE(JP)





Output data



Model No.	Output Voltage (V)	Output Current (A)	Output Power (W)
TEKA018-XXXYYYYUS/JP    1). TEKA denotes the company Logo, which can be customized.    2). 006 denotes the output power, say 6W, or less than.    3). XXX denotes the output Voltage from 3.0V to 24V, say 030-240.    4). YYYY denotes the output current from 0.1A to 3A, say 0100-3000.    5). US/JP denotes the US/JP AC plug, say United States Standard or Japanese Standard.	3.0-24	0.1-3	6W or below
