Home > Products > 12W Power Adapter Series > 12v power supply

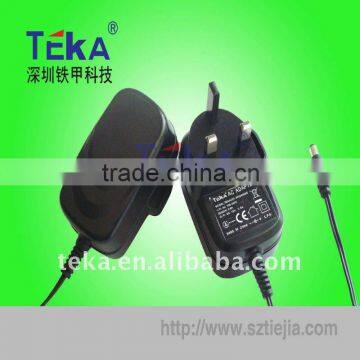

12v power supply
- 40000 Piece / Pieces per Month
- SHENZHEN
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | TEKA | |
| Model Number | TEKA012-XXXYYYY | Output Power | 1 - 50W | |
| Output Type | Single | Input Voltage | Other, 100-240 | |
| Output Voltage | 3-24 | Output Frequency | 12 | |
| Output Current | 0.1-2 |
Product Description
Specifications
Blac or kwhiteCE,GS,UL,FCC,PSE,KC,ROHS,,SAA,CEC,CEC,ERP,MEPS
2 years life
Environmental
BS safety certificate
product characteristics Compact size,easy to carry
A constant current mode
output protection Overvoltage protection:120%MIN
Overcurrent protection:120%MIN
electrical characteristics Frequency:50/60HZ(47/63HZ)
Output power:24W
Output voltage:3-24V
Output current:0.1-2A
Load rang:±5%
Dielectric strength test:AC 3000V/5MA
Insulation resistance:DC 500V/100MΩ
Reliability Operating :0-40°C
Storage trmperature-20-85°C
Operating Humidity:5-95%RH
Output data
Model | I/P comdition | Output Condition | Efficiency | Power | |||
Voltage | Current | Regulation | |||||
V | A | LIN | LOAD | MIN% | W | ||
TEKA012- XXXYYYY | 100-240V | 4.2-6.0 | 0.1-2.0 | 2% | 5% | 72 | 12 |
7.5-10.5 | 0.1-1.5 | 2% | 5% | 72 | 12 | ||
12.0-15.0 | 0.1-1.0 | 2% | 5% | 75 | 15 | ||
16.0-19.0 | 0.1-0.75 | 2% | 5% | 75 | 15 | ||
21.0-24.0 | 0.1-0.60 | 2% | 5% | 75 | 15 | ||
The input power shall decrease and no demage when the output short-circuit,and shall be self-recovery when the fault condition is removed.
High power and low power consumption,in line with the power supply energy star CEC,ERP,MEPS Class V energy efficiency standard of green power.
Our products have passed UL,CUL,FCC,GS,CE,CCC,PSE,SAA,EK,KC,CB,BS,BSMI certification.
