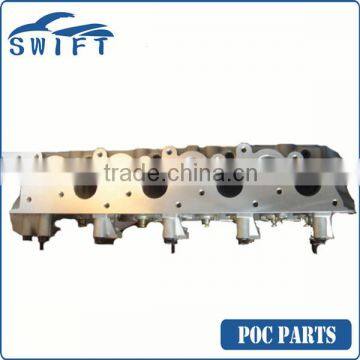

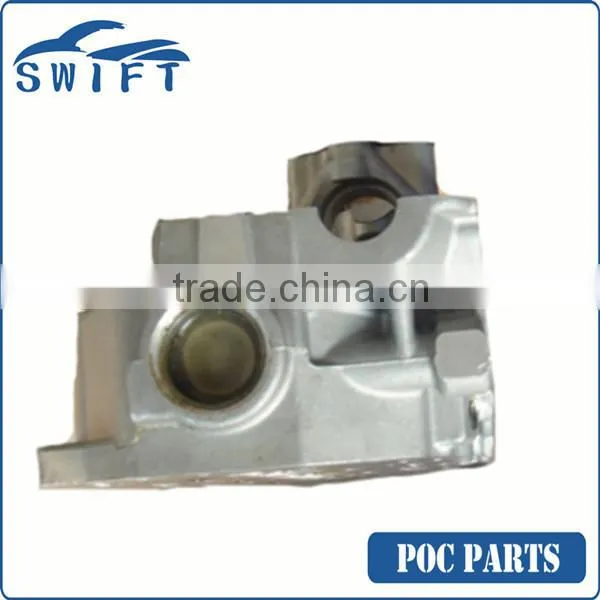

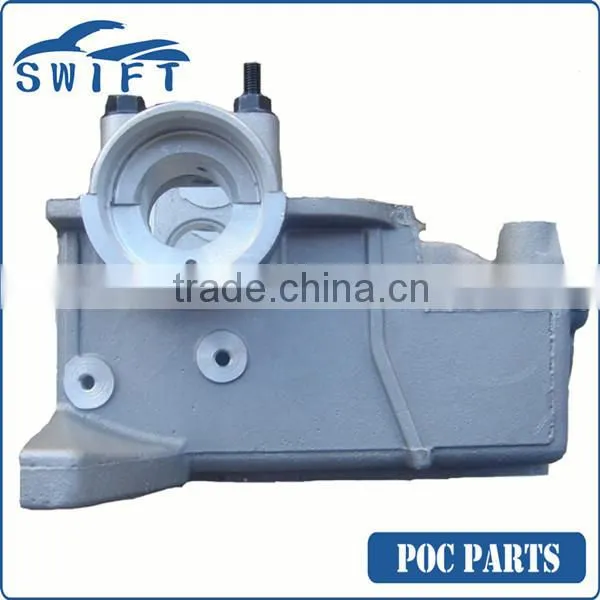

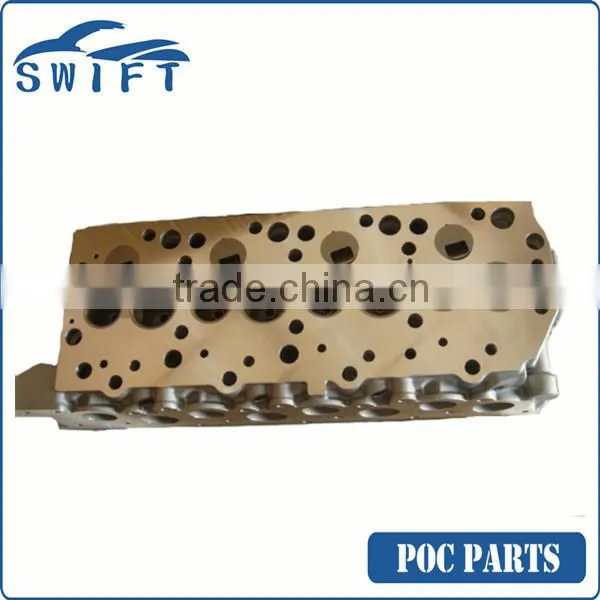

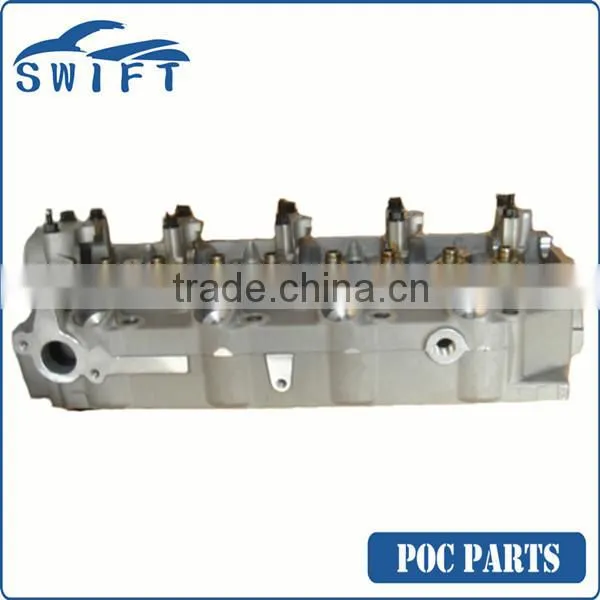

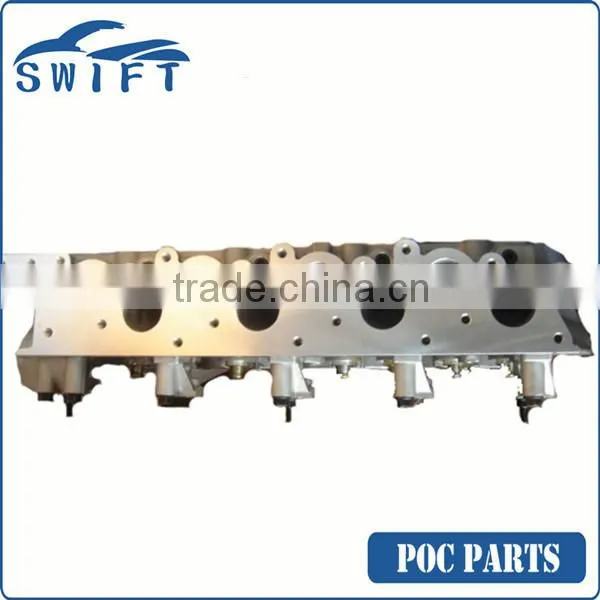

4D56-D Cylinder Head For Mitsubishi

Shenyang SWIFT Auto Parts Trading Co., Ltd.
4D56-D Cylinder Head For Mitsubishi thumbnail-1
4D56-D Cylinder Head For Mitsubishi thumbnail-2
4D56-D Cylinder Head For Mitsubishi thumbnail-3
4D56-D Cylinder Head For Mitsubishi thumbnail-4
4D56-D Cylinder Head For Mitsubishi thumbnail-5
4D56-D Cylinder Head For Mitsubishi thumbnail-6
4D56-D Cylinder Head For Mitsubishi photo-1
4D56-D Cylinder Head For Mitsubishi photo-2
4D56-D Cylinder Head For Mitsubishi photo-3
4D56-D Cylinder Head For Mitsubishi photo-4
4D56-D Cylinder Head For Mitsubishi photo-5
4D56-D Cylinder Head For Mitsubishi photo-6
US$ 1 - 500 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Type:
Other, Cylinder Head, Piston Cylinder SOHC 8V
Car Make:
Mitsubishi/Hyundai/ Kia
OE NO.:
22100-42700/AMC 908770/22100-42700
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
DALIAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Cylinder Head, Piston Cylinder SOHC 8V
Car Make Mitsubishi/Hyundai/ Kia
OE NO. 22100-42700/AMC 908770/22100-42700
Place of Origin Liaoning, China
Brand Name POC
Model Number 4D56-D, 4D56-D
Warranty 12 Months
Product Description
4D56
Displacement - 2.5 L (2,476 cc)
Bore - 91.1 mm
Stroke - 95.0 mm
Fuel type - Diesel

This engine is also built by Hyundai in South Korea, meaning it also sees use in some products made by their Kia subsidiary.

Non-Turbo
Power - 55 kW (74 hp) at 4,200 rpm
Torque - 142 N·m (105 lb·ft) at 2,500 rpm
Engine type - Inline 4-cylinder SOHC
Fuel system - Distribution type jet pump
Compression ratio - 21:1

Non-intercooled Turbo
Power - 84 PS (62 kW) at 4,200 rpm
Torque - 201 N·m (148 lb·ft) at 2,000 rpm
Engine type - Inline 4-cylinder SOHC

Non-intercooled Turbo (TD04 Turbo)
Power - 90 hp (67 kW) at 4,200 rpm
Torque - 197 N·m (145 lb·ft) at 2,000 rpm
Engine type - Inline 4-cylinder SOHC
Fuel system - Distribution type jet pump
Compression ratio - 21:1

Intercooled Turbo (TD04 water-cooled Turbo)
Power - 78 kW (104 hp) at 4,300 rpm
Torque - 240 N·m (177 lb·ft) at 2,000 rpm
Engine type - Inline 4-cylinder SOHC
Rocker arm - Roller Follower type
Fuel system - Distribution type jet pump (indirect injection)
Combustion chamber - Swirl type
Bore x Stroke - 91.1 x 95mm
Compression ratio - 21:1
Lubrication System - Pressure feed, full flow filtration

Intercooler Type - Aluminium Air-to-Air, Top-mounted
Turbocharger - Mitsubishi TD04-09B
Also known as Hyundai D4BH

Intercooled Turbo (1st Generation DI-D)
Power - 85 kW (114 hp) at 4,000 rpm
Torque - 247 N·m (182 lb·ft) at 2,000 rpm
Engine type - Inline 4-cylinder
Fuel system - 1st Generation Common Rail Direct Injection (CRDi)
Compression ratio - 17:1

Intercooled Turbo (2nd Generation DI-D)
Power - 100 kW (134 hp) at 4,000 rpm
Torque - 320 N·m (236 lb·ft) at 2,000 rpm
Engine type - Inline 4-cylinder
Fuel system - 2nd Generation Common Rail Direct Injection (CRDi)
Compression ratio - 17:1

Intercooled Turbo (3rd Generation DI-D with variable geometry turbo)
With manual transmission
Power - 131 kW (178 PS) at 4,000 rpm
Torque - 400 N·m (295 lb·ft) at 2,000 rpm
Engine type - Inline 4-cylinder
Fuel system - 2nd Generation Common Rail Direct Injection (CRDi)
Compression ratio - 16.5:1

With automatic transmission
Power - 131 kW (178 PS) at 4,000 rpm
Torque - 350 N·m (258 lb·ft) at 1,800 rpm
Engine type - Inline 4-cylinder
Fuel system - 2nd Generation Common Rail Direct Injection (CRDi)
Compression ratio - 16.5:1
