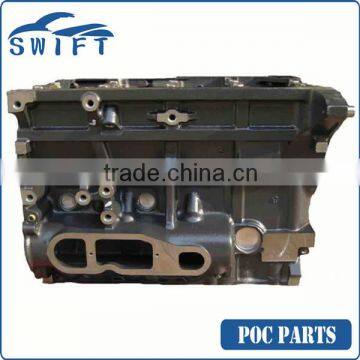

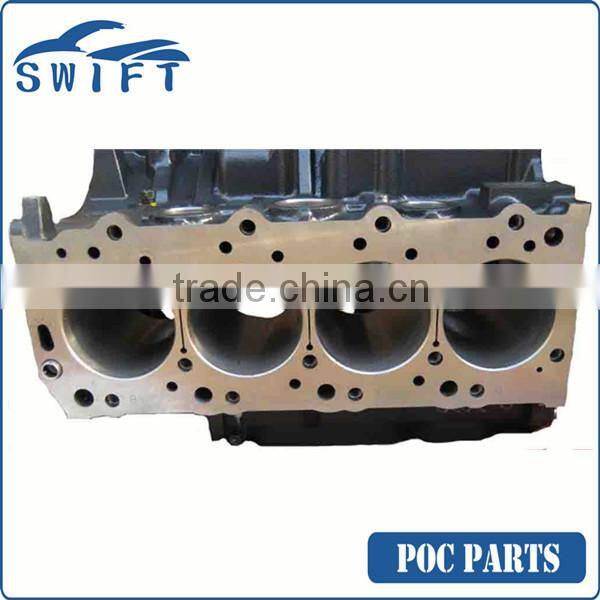

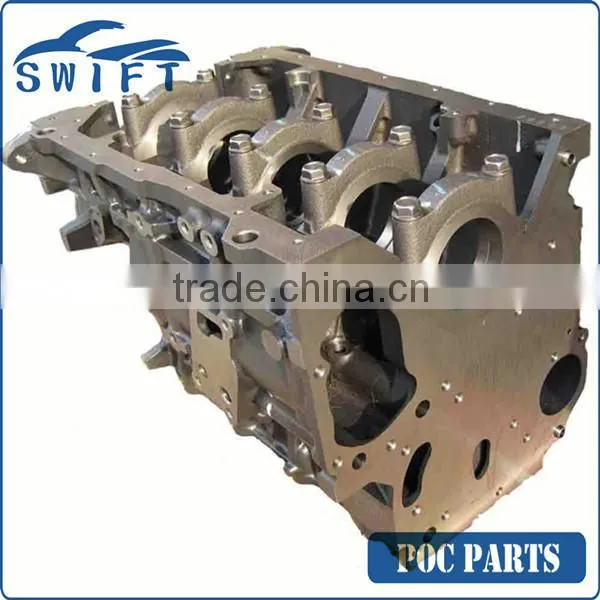

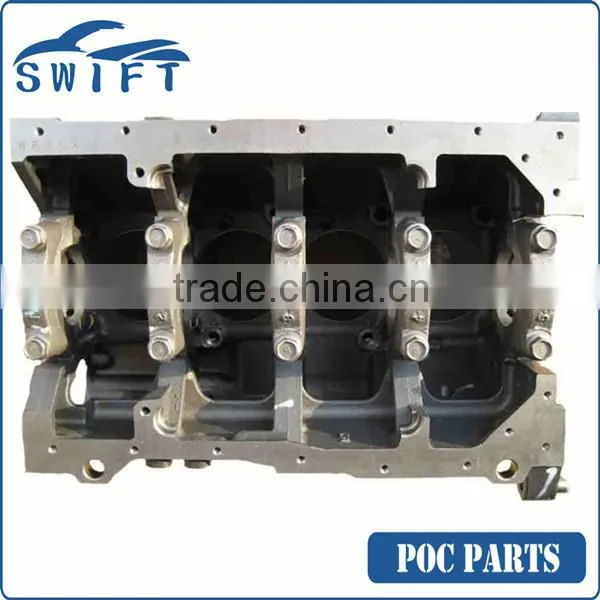

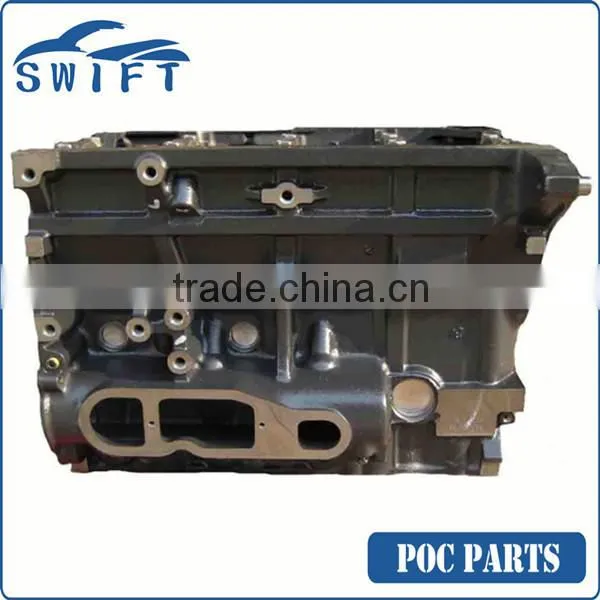

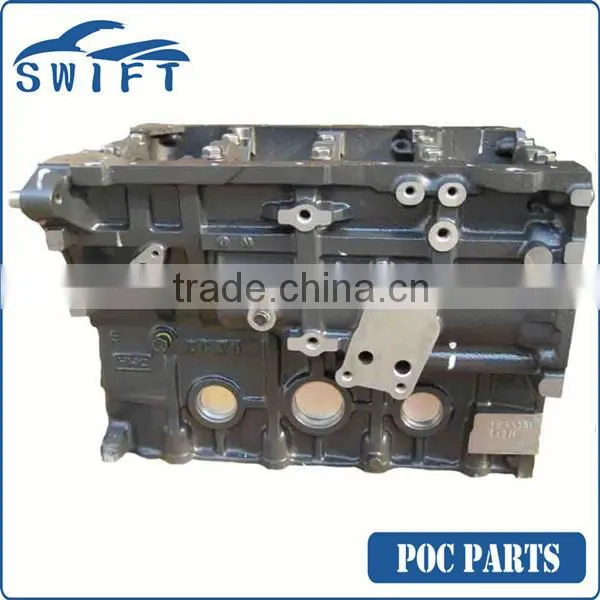

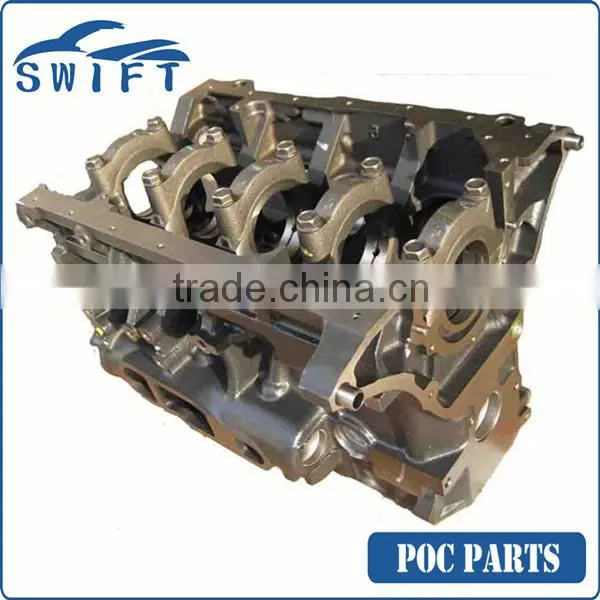

4D56 Engine Block for Mitsubishi

4D56 Engine Block for Mitsubishi thumbnail-1
4D56 Engine Block for Mitsubishi thumbnail-2
4D56 Engine Block for Mitsubishi thumbnail-3
4D56 Engine Block for Mitsubishi thumbnail-4
4D56 Engine Block for Mitsubishi thumbnail-5
4D56 Engine Block for Mitsubishi thumbnail-6
4D56 Engine Block for Mitsubishi photo-1
4D56 Engine Block for Mitsubishi photo-2
4D56 Engine Block for Mitsubishi photo-3
4D56 Engine Block for Mitsubishi photo-4
4D56 Engine Block for Mitsubishi photo-5
4D56 Engine Block for Mitsubishi photo-6
US$ 1 - 500 MOQ: 10 Sets
Key Specifications
Get Latest Price
Type:
Other, Cylinder Block, Piston Cylinder
Car Make:
Mitsubishi
OE NO.:
4D56
Contact Supplier Request Quote Chat Now
Shenyang SWIFT Auto Parts Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
DALIAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Cylinder Block, Piston Cylinder
Car Make Mitsubishi
OE NO. 4D56
Place of Origin Liaoning, China
Brand Name POC
Model Number 4D56, 4D56
Warranty 12 Months
Product Description



Displacement - 2.5 L (2,476 cc)
Bore - 91.1 mm
Stroke - 95.0 mm
Fuel type - Diesel

This engine is also built by Hyundai in South Korea, meaning it also sees use in some products made by their Kia subsidiary.

Non-Turbo

·         Power - 55 kW (74 hp) at 4,200 rpm

·         Torque - 142 N·m (105 lb·ft) at 2,500 rpm

·         Engine type - Inline 4-cylinder SOHC

·         Fuel system - Distribution type jet pump

·         Compression ratio - 21:1

Non-intercooled Turbo

·         Power - 84 PS (62 kW) at 4,200 rpm[

·         Torque - 201 N·m (148 lb·ft) at 2,000 rpm

·         Engine type - Inline 4-cylinder SOHC

Non-intercooled Turbo (TD04 Turbo)

·         Power - 90 hp (67 kW) at 4,200 rpm

·         Torque - 197 N·m (145 lb·ft) at 2,000 rpm

·         Engine type - Inline 4-cylinder SOHC

·         Fuel system - Distribution type jet pump

·         Compression ratio - 21:1

Intercooled Turbo (TD04 water-cooled Turbo)

·         Power - 78 kW (104 hp) at 4,300 rpm

·         Torque - 240 N·m (177 lb·ft) at 2,000 rpm

·         Engine type - Inline 4-cylinder SOHC

·         Rocker arm - Roller Follower type[

·         Fuel system - Distribution type jet pump (indirect injection)

·         Combustion chamber - Swirl type

·         Bore x Stroke - 91.1 x 95mm

·         Compression ratio - 21:1

·         Lubrication System - Pressure feed, full flow filtration

·         Intercooler Type - Aluminium Air-to-Air, Top-mounted

·         Turbocharger - Mitsubishi TD04-09B

Also known as Hyundai D4BH

Intercooled Turbo (1st Generation DI-D)

·         Power - 85 kW (114 hp) at 4,000 rpm

·         Torque - 247 N·m (182 lb·ft) at 2,000 rpm

·         Engine type - Inline 4-cylinder

·         Fuel system - 1st Generation Common Rail Direct Injection (CRDi)

·         Compression ratio - 17:1

Intercooled Turbo (2nd Generation DI-D)

·         Power - 100 kW (134 hp) at 4,000 rpm

·         Torque - 320 N·m (236 lb·ft) at 2,000 rpm

·         Engine type - Inline 4-cylinder

·         Fuel system - 2nd Generation Common Rail Direct Injection (CRDi)

·         Compression ratio - 17:1

Intercooled Turbo (3rd Generation DI-D with variable geometry turbo)

With manual transmission

·         Power - 131 kW (178 PS) at 4,000 rpm

·         Torque - 400 N·m (295 lb·ft) at 2,000 rpm

·         Engine type - Inline 4-cylinder

·         Fuel system - 2nd Generation Common Rail Direct Injection (CRDi)

·         Compression ratio - 16.5:1[

With automatic transmission

·         Power - 131 kW (178 PS) at 4,000 rpm

·         Torque - 350 N·m (258 lb·ft) at 1,800 rpm

·         Engine type - Inline 4-cylinder

·         Fuel system - 2nd Generation Common Rail Direct Injection (CRDi)

·         Compression ratio - 16.5:1
