180 Degree t8 Blue Tube Saa Tube Led Tube 8tube Ani

180 Degree t8 Blue Tube Saa Tube Led Tube 8tube Ani thumbnail-1
180 Degree t8 Blue Tube Saa Tube Led Tube 8tube Ani photo-1
US$ 4 - 26 MOQ: 100 Pieces
Key Specifications
Get Latest Price
LED Light Source:
LED
Warranty(Years):
3
Input Voltage(V):
85~265
Contact Supplier Request Quote Chat Now
Shenzhen GCL Opto-Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shekou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source LED
Warranty(Years) 3
Input Voltage(V) 85~265
Lamp Power(W) 18
Lamp Luminous Flux(lm) 1800
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Other, blue
Working Temperature(℃) -20, 45
Working Lifetime(Hour) 30000
Lamp Body Material Aluminum
IP Rating IP33
Certification CE, EMC, LVD
Place of Origin Guangdong, China
Brand Name GCL
Model Number T8

180 degree t8 blue tube saa tube led tube 8tube ani





1. LED : SMD3014 / SMD2835 / SMD3528

2. PF:>0.95         CRI:≥70Ra        Beam Angle : 160°

3. Material : Aluminum housing + PC cover

4. LED Base : G13 / Fa8s Pins / Integrative

5. Life-span : ≥30000H



No.

Model No.

Length

Power

Luminous Flux

Input Voltage

Colour Temprature

1

SL-TL-001-9W

600mm / 2ft

9W

850±100LM









AC100-240V

50/60Hz









2700K~6500K

2

SL-TL-002-12W

900mm / 3ft

12W

1120±100LM

3

SL-TL-008-18W

1200mm / 4ft

18W

1700±100LM

4

SL-TL-003-20W

1200mm / 4ft

20W

1900±100LM

5

SL-TL-003-26W

1200mm / 4ft

26W

2350±100LM

6

SL-TL-004-23W

1500mm / 5ft

23W

2150±100LM

7

SL-TL-004-28W

1500mm / 5ft

28W

2650±100LM

8

SL-TL-005-32W

1800mm / 6ft

32W

2950±100LM

9

SL-TL-011-45W

2400mm / 8ft

45W

4150±100LM

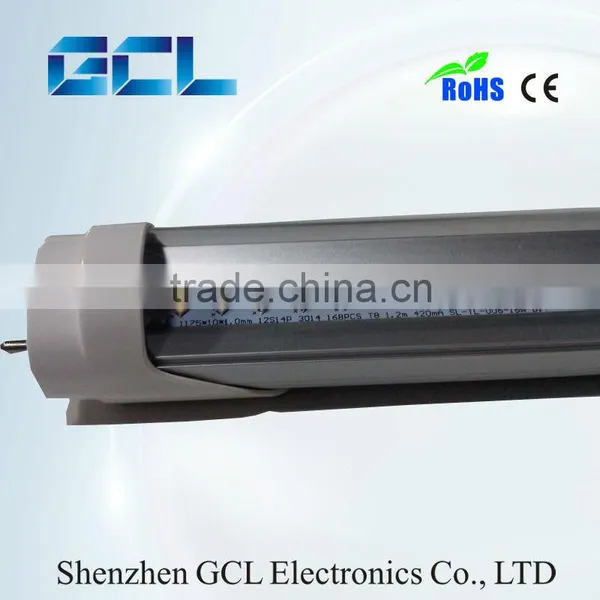

T8 Integrated LED Tube light

All above T8 models can be “T8 Integrated LED Tube Light” with the same specifications. This Integrated    does not need the T8 bracket. It only use the fixture for installation(accessory as the picture show).

180 degree t8 blue tube saa tube led tube 8tube ani

 180 degree t8 blue tube saa tube led tube 8tube ani



Compared with traditional lamp



1. LED Tube Light adopt high brightness SMD3014 / SMD2835 / SMD3528 as its illuminant, with excellent optical performance.

2. High light efficiency with 50% energy saving effect than traditional fluoresecent tube light.

3. Environmental protection. no Hg,and very long life-span ( 10 times than traditional fluoresecent tube light ).

4. Can be compatible with triac dimming

5. Can be configured as Microwave sensor, Infrared sensor, Sound sensor



Application Areas



Office Building, Hotel,  Shopping Mall,  Subway

Railway  station,  Bus  Station

Underground Parking,  Factory,  Home

Advertisement lighting and Decoration lighting and so on.

180 degree t8 blue tube saa tube led tube 8tube ani


Packaging & Shipping

Installation:



1. Open the packaging,check whether the products have any damage.



2. Cut off the total swith.

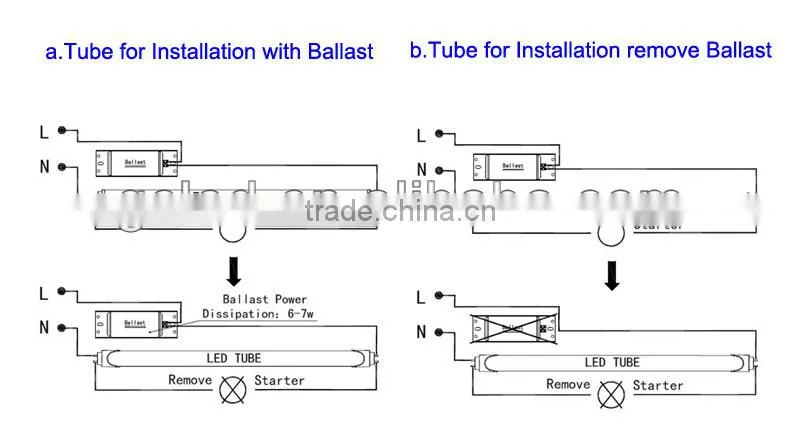

3. If the original ballast is electronic ballast,shown as picture. 1 at the time of installation.Remove the original electronics ballast



and old tube at first.then change wiring and install this product according to picture



180 degree t8 blue tube saa tube led tube 8tube ani

180 degree t8 blue tube saa tube led tube 8tube ani

                                                                          Specify LED Tube manufacturer available

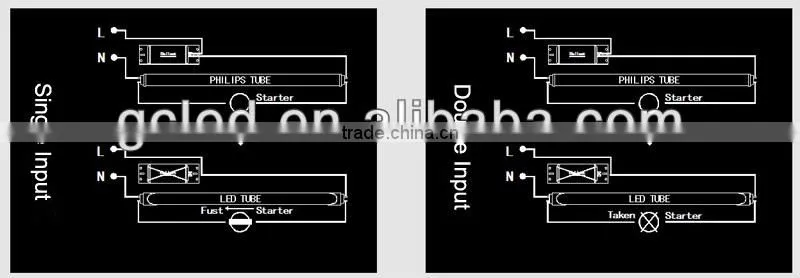

Single side input and Double sides input led tube lamp      &      led tube with ballast and without ballast





Package:



a) Package for led tube in straight



180 degree t8 blue tube saa tube led tube 8tube ani



b) Package for led tube in EPE



180 degree t8 blue tube saa tube led tube 8tube ani





Shenzhen GCL Electronics Co., LTD

ADD: Block B,Yasen Technology Park,No.8 Chengxin Road,Longgang District,Shenzhen,China





180 degree t8 blue tube saa tube led tube 8tube ani



 180 degree t8 blue tube saa tube led tube 8tube ani



FAQ & terms

1. MOQ: 100 PCS

2. Certifications: UL SAA CE & RoHS FCC

3. Available Length: 1ft 2ft 3ft 4ft 5ft 6ft 8ft

4. Tube Holder: Normal T8 tube, Integrated, FA8s Pin

5. Tube Fuction: Microwave sensor, Infrared sensor, Sound sensor

6. Delivery Time: 5~7 working days for sample, 15~20 working days for mass order

7. Payment: L/C, TT, Western Union, PayPal

8. Skype : Jam_Zhan      Tel:+86 755 27117707      Contact Person: Jam Zhan
