Shenzhen factory supplier 18W T8 1.2m 4ft led tube light SAA Approval
Parameters
GCL Shenzhen factory price T8 1.2m 4ft 18W led tube light with CE ROHS SAA Approval
| Product Model | Length | Specifications |
| SL-TL-001-9W-B | 60CM(2ft) | 1. Input Voltage: 100-277V 50/60Hz 2. CRI ≥80Ra PFC: >0.95 3. CCT: 2700-3300K; 4000-4500K; 5500-6500K 4. LED Standard: 84pcs SMD3014 5. Product Material: Aluminum +PC 6. PCB:Aluminum substrate 7. Life-span: >30000H |
Features & Advantages
- Comfortable
1) Uniform light
2) Wide beam angle - 120 degree
3) Comfortable light over lifetime
- Safety
1) Pin safety design
2) 3 fuses protection
3) UL & cUL & DLC & FCC & CE & RoHS certificate
Long lifetime
1) High quality chip & High quality driver - 35000 hours
2) Thoughtful & Professional after sale - 7*24h
Details

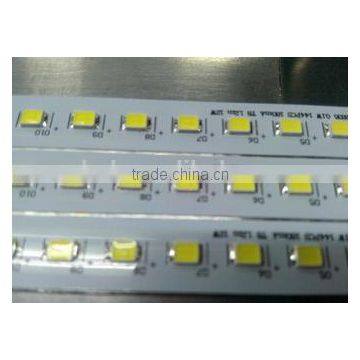

1) SMD3014 within the high brightness and Perfect heat dispersion Aluminum substrate

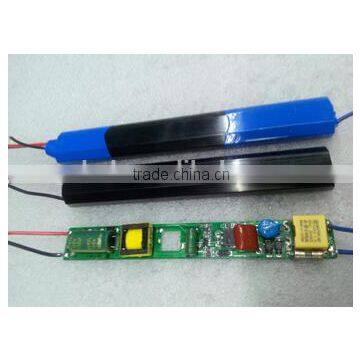

2) High quality driver within 3 year warranty
3) Enough thick Aluminum housing with 1 mm thickness, will get the prefect heat dispersion
4) PC cover within 95% transmittance (Here is the transparent)
5) Durable G13 lamp cap
6) Precise assembly, Solid soldering and Perfect insulation protection (LEDs in Single row and Two rows)

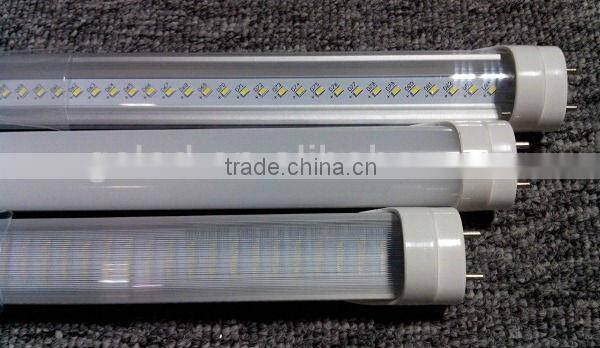

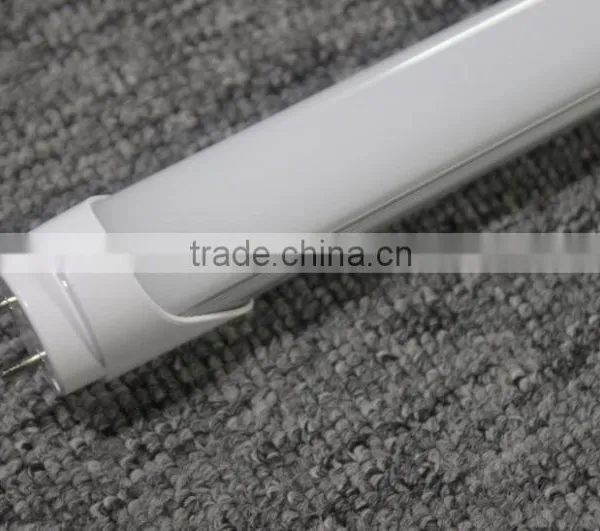

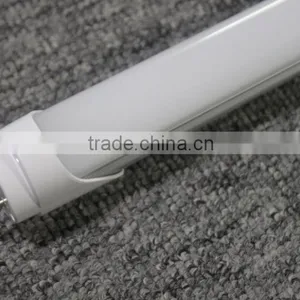

- Figure Photos (Frosted, Transparent, Striped)
Main Applications
- Indoor Lighting

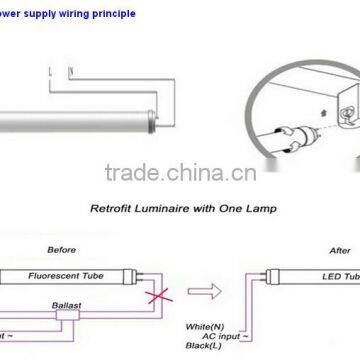

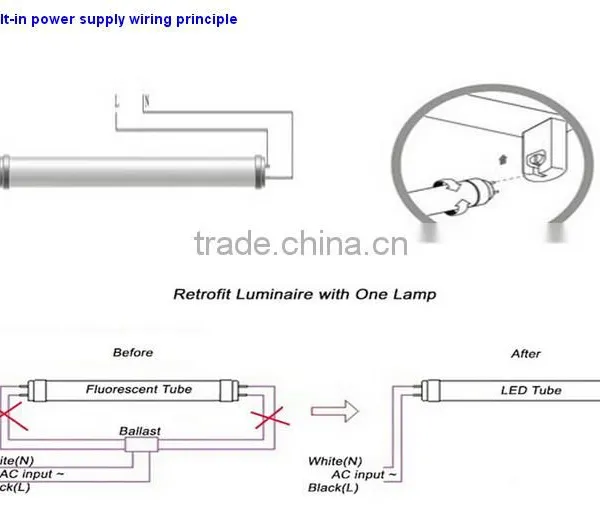

Installation Steps
1) Turn off the electricity supply before installation

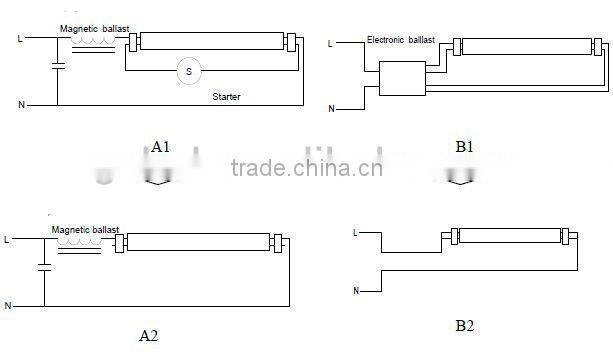

2) Make sure the circuit of the base is as following A2 and B2.For old circuit originally for conventional T8/T10 fluorescent,please following the illustrated steps to adjust djust the circuit as follow
3) For Figure A1 circuit, after removing the starter, the LED tube can be installed directly onto the G13 base (see Figure A2)
4) For Figure B1 circuit, please removing the electronic ballast, and connect L and N to the joints in the base separately(see Figure B2)
5) After adjusting the circuit , install the LED tube in the same way as installing the traditional fluorescent tube light.Turn on the power supply of the base to check whether the tube light is working properly or not
Warning Notes
a) Working Voltage: AC 85V~265V 50/60Hz. Do not exceed the operating voltage range.
b) This product is prohibited material immersed in liquid.
c) The tube is designed for moisture-proof use only. Don't put it into water.
d) It's normal that the device will delay starting 2 seconds due to carrier charging after the turning on.
Packing
Type 1 - for samples or small quantity
Use the paper tube for each tube within 25pcs/carton, will be protect the lamp
Type 2 - for bulk order
Use the EPE foam wihin the Punching plate, will be protect the lamp and let shipment cost down, 25pcs/carton as well

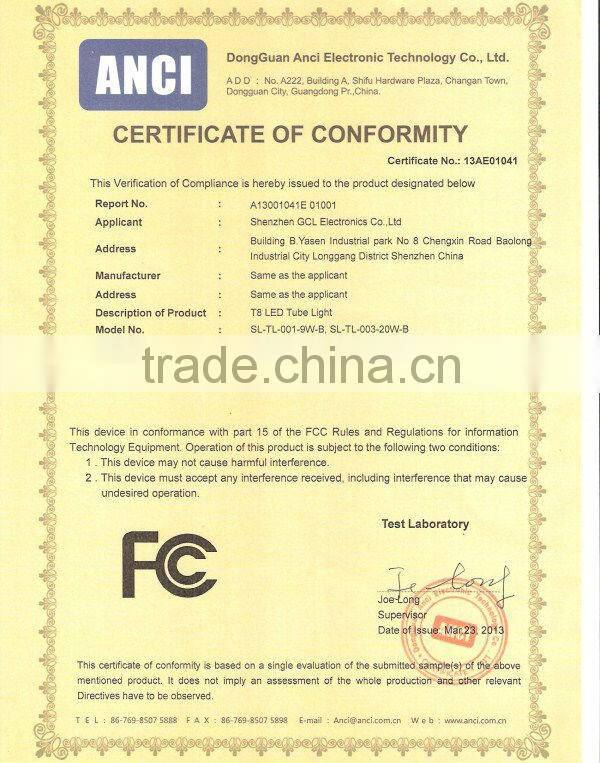

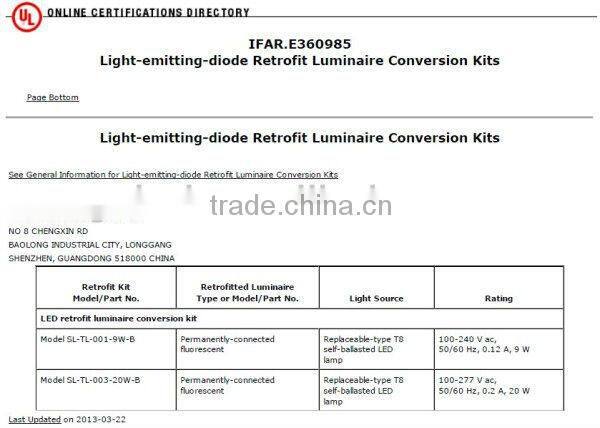

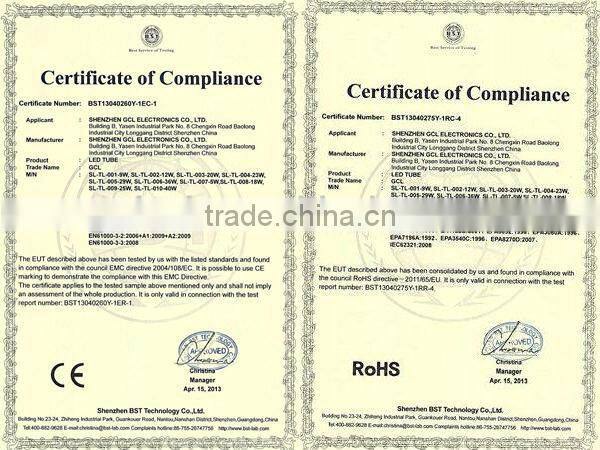

Certificates
After-sales Service Letter of Commitment:
All products purchased in our company are guaranteed to keep in good repair for 3 years. If quality problems happen within the warrwanty, our company will maintained or replaced for free. Additionally, we provide technical support and fittings for life. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time. Whenever you are caught in problems using our products, welcome to contact us.

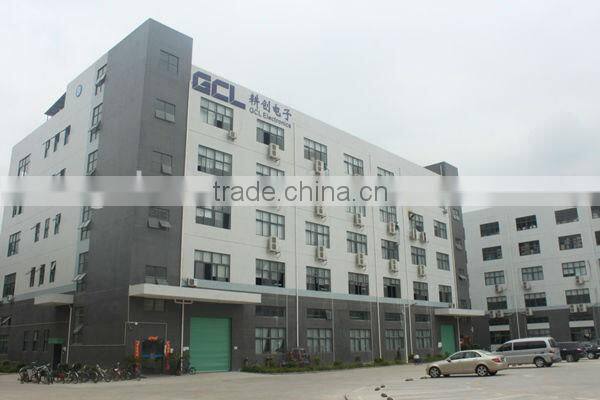

Here is our factory
Contact us now! Welcome to visit GCL factory in Longgang Shenzhen!!!
Jaycie
Manager of Overseas Department
GCL Electronics CO;LTD
Website:
Whatsapp/Mobile:0086-13602400457
Skype: jaycie.woo
