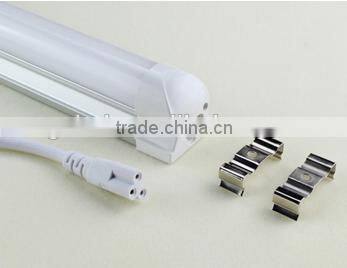

CE RoHS approved AV100-240V 18W 120cm T8 led tube integrated led
Technical Parameters
| Model No. | SL-TL-008-18W-YN |
| Norminal Power | 18 |
| Color Temperature | 3000k, 4000k, 5000k 6000k |
| Lumen Flux | 1800±100LM |
| Length | 4ft/1200mm/1.2m |
| Cover | milky/clear/strip |
| Housing Material | Aluminum+PC |
| Color Rendering Index | >70Ra |
| Power Factor | >0.95 |
| Input Voltage | AC100-240v |
| Frequency | 50/60Hz |
| IP Rating | IP33 |
| Operating Temperature | ‘-20°C~+40°C |
| Storage Temperature | -40°C~+80°C |
| Single Package | Poly Bag+Fiber container |
| Carton Size | 1260*210*230 |
Discription & Advantage
3 Years warranty
50,000 hours lifespan
90-100lm/w
Three wire grounded,less danagerous
AC powered(Self-ballasted)
Linkable,Units plugged together by interconnect cord or End to End (Seamless connection)
Quick installation with installation kits included
Instant start
No radio frequency interference, noise, flickering.
No mercury and other hazardous materials.

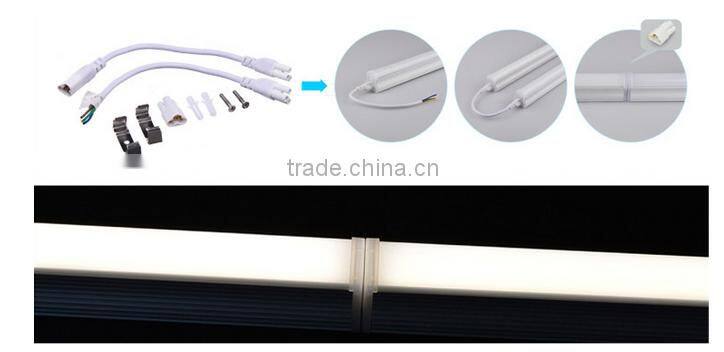

Picture show
Package
20pcs in on carton package
Installation steps
1. First install the tube on the supplied hanging board.
2. Insert the power cord supplied by our company into the holder at the either end (regardless of the positive and negative),and then connect the AC220V power to light the tube up.
3. This product integrated product with T8 tube and bracket together, you shouldn’t not remove and assemble it.
4. You can use the special wire supplied by our company to connect the multiple lamps in series.
5.If there is any unusual situation when using, pls contact us. The product couldn’t be opened optionally, or no warranty for it.

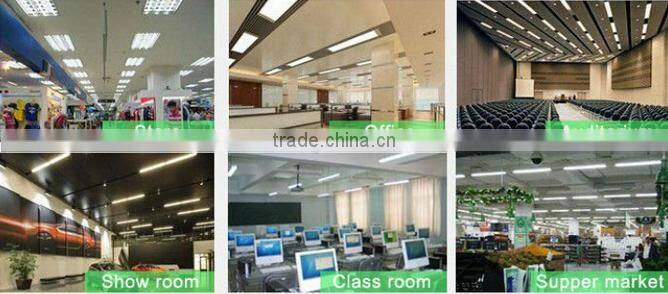

Application
* Hotels, schools, supermarket
* Commercial buildings
* Residential buildings
* Hospital and library
* Place where need high CRI and high brightness
1. Any of your enquiry about us or our products will be replied quickly in detail in 24hours
2. Experienced and passionate staffs are ready to answer all your enquires in fluent English without barriers
3. OEM&ODM, we can help design and product your own lighting
4. Protection of your sales area, ideas of design and all your private information
1. Have your products got any certificates?
Answer:Yes, our products have passed CE&ROHS&DLC&GS&SAA etc.
2. How long is the warranty period?
Answer:Our tube light's warranty is 3 years .
3. What will you do if there are any problem founded in use?
Answer:You will get a replacement for free within warranty and just need to pay the cost price if it is beyond the warranty period.
Factory advantage
