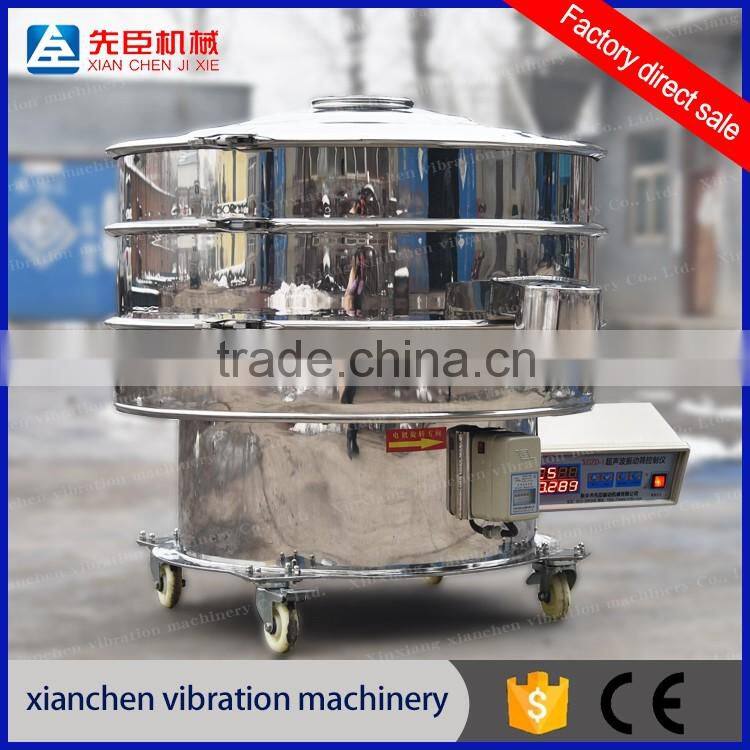

2016 HX-high Efficency Rotary Ultrasonic Vibration Sieve

XinXiang Xianchen screening machinery Co.,Ltd is specialized in producing vibrating machinery manufacturers, with well-equipped, strong technical force, detection means complete, high-quality after-sales sevice being perfect cnditions. Advanced product design, production precision, reliable performance, with international advanced level, best-selling country, in the same industry enjoys high reputation and well received by the user's trust. The main products are rotary vibration screen, vertical screen, powder sieve, linear vibrating screen, vibrating sieve mining, cement, sieve, vibration to the hopper, vibrating feeder, conveyor motor vibration level, electrical vibration vertical lifting machine, warehouse wall vibration, vibration motors and screw conveyor and so on.

• Ultrasonic uses integrated circuit board, all closed, aviation special interface; can 12-24 hours of uninterrupted work, no cooling treatment.
• Screening accuracy is improved by 70% ,the amount of processing is 2-10 times the normal screening machine, the difficult screening materials comparison is particularly significant, such as: silicon carbide powder, tungsten carbide powder, coffee powder, etc.
• The sieving mesh can reach 600 , and can completely clean, easy operation and maintenance.
• Really solve the strong adsorption, easy to reunite, high static, high precision, high density, light weight and other screening problems.
• To ensure that the characteristics of the materials are not changed.( Special design of plus nitrogen equipment for afraid of oxide materials.)
• Ultrasonic transducer
• The sealing structure prevents the powder and the liquid entering the structure.

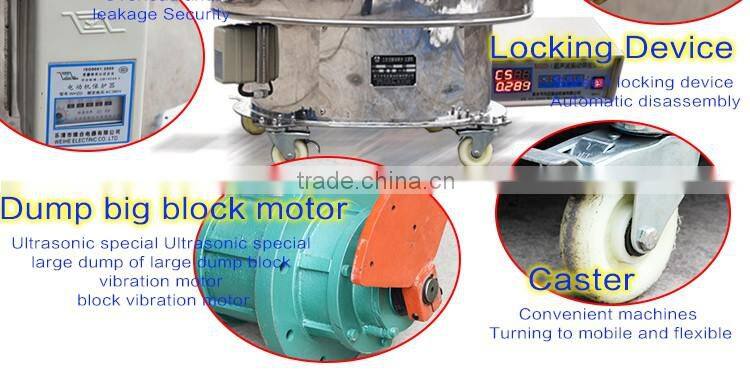

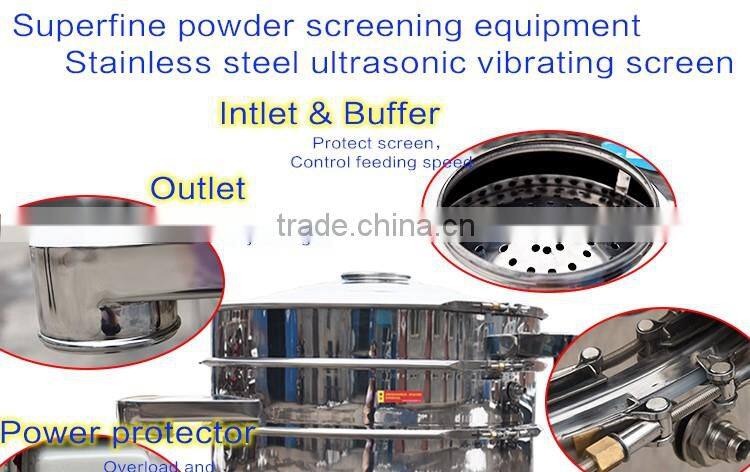

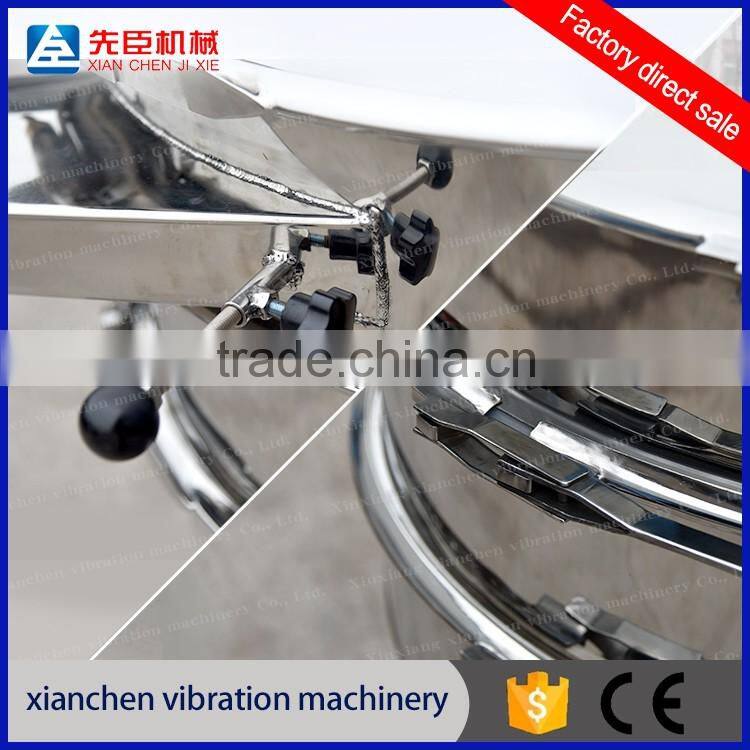

Protuct details









Technical parameters





model	Sieve surface diameter	Effective diameter	power	Net layer	Screen specifications	external dimensions
XCC400-1S	400mm	360mm	0.18KW	1---3	60-600	580*580*560
XCC600-1S	600mm	520mm	0.55KW	1---3	60-600	800*800*680
XCS800-1S	800mm	720mm	0.75KW	1---3	60-600	900*900*780
XCC1000-1S	1000mm	890mm	1.5KW	1---3	60-600	1160*1160*880
XCC1200-1S	1200mm	1090mm	1.75KW	1---3	60-600	1360*1360*980
XCC1500-1S	1500mm	1390mm	2.2KW	1---3	60-600	1660*1660*1280







In addition to having XC series three dimensional vibration sieve the same specifications, There are also many special design form, screening of special materials, XCC series of ultrasonic vibrating screen have different special design, especially the design of the intelligent vibration ultrasonic controller, Especially targeted intelligent ultrasonic vibration controller design, the structure of the equipment under the protection of the lazy gas,etc.





 Application









 Have been applied: 400, 500, 600 mesh sieving silicon carbide, alloy powder, molybdenum powder, stainless steel powder, tungsten powder, nickel powder, cobalt powder, carbon powder, powder coating, quartz powder, Ding Michler's ketone powder, malt powder, ribavirin, coffee powder, magnetic powder, anode material, fluorescent powder.





Workshop process









FAQ



 a: Customers who are familiar with technical performance and parameters can directly order.
Note: You had better send us the pictures you have ever used.
b: Customers who need us to choose the models, please follow the information, tell us:

• Name and feature of the raw material?



• Aim of using: get rid of impurity, filtration, grading

• Handling capacity: kg /h, L/h
• The raw material size: (mesh or mm)
• How many final materials you want, or how many layer you need?
Note: You had better send us the relevant pictures about the details.
2.How many kinds of material are supported?
• All stainless steel (304, 316L)
• All carbon steel Q235
• Contact part Stainless steel
3.Is it special requirement available?
Packaging & Delivery
Wooden case or as your payment
20 days after receipt of your require
This machine also could be customized by clients' specific production line requirement.
