textile printing adhesive

Specifications

Excellent adhesion and laundry&dry cleaning resistance. Applied in all kinds of fabric, zipper cloth adhesive and shoe material.

Technical Data Sheet

update: 2011.03.23

Reference Product properties		HT-5110
Appearance Form		Granule&Powder
Components		COPES(Copolyester)
Optical Brightener Additives		Yes
Melting range      (°C)		110-120
Melt-index           (g/10min) (160°C/21.18N)		35-45
Density                      (g/cm3)		1.3

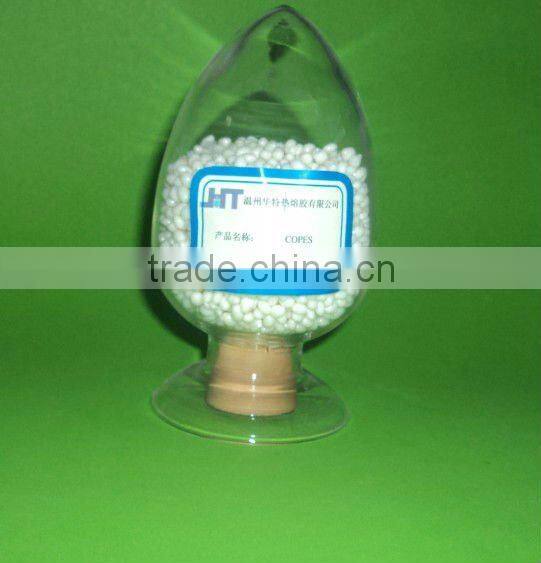

Specifications	Granule	Φ(3-4)×(5-6)mm

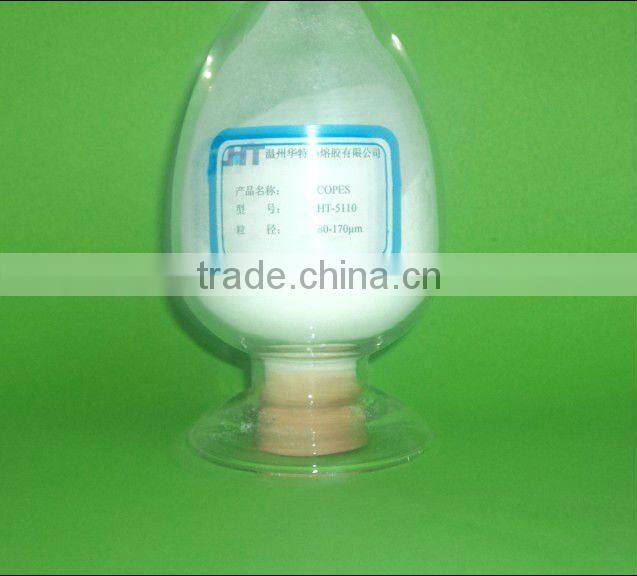

	Powder Particle sizes	0-80µm
		0-120µm
		0-160µm
		80-170µm
		100-400µm
Bonding condition  (for reference only)	Temperature (°C)	140-160
	Press (kg/cm2)	1.0-3.0
	Time (S)	10-15
Laundry resistance	40°C	excellent
	60°C	good
	90°C	-----
Dry-cleaning resistance		good



 The characteristic and application of COPES

     COPES granule shows good adhesion to various surface, excellent laundry resistance, heat resistance and cold resistance, thermal stability, impact resistance, elasticity and wide temperature range. It can widely bond with various object, especially in fiber, leather and so on. Application fields: blouses, shirts, zipper cloth adhesive, leather felt, shoe industries, adhesive film, etc.
