Automatic terminal crimping machine with Exchangeable Die Sets electric connector crimping tools crimper EM-6B2
- 5000 Set / Sets per Month
- Ningbo/Shanghai
- T/T L/C D/P D/A Credit Card
You May Like
-
Electrical crimping Tool EM-6B2 used for crimping different kinds of terminals Electric automatic crimping machine/crimper tool
-
Copper tube terminals and non-insulated cable links crimping tool LX-245B heavy duty machinery/electrical type crimping tools
-
Copper pipe terminal and non-insulated cable links crimping tool LX-150B heavy duty machinery/electrical type crimping tools
-
Long arm heavy duty crimping tool for crimping 6-50mm2 non-insulated cable lugs bare terminals,electrical crimping tools
-
EM-6B2 electrical crimping tools terminal crimping pliers machine 0.25-10mm2 automatic crimpng tools
-
EM-6B2 electrical crimping tools machine with Exchangeable Die Sets
Product Details
| Place of Origin | Zhejiang, China | Brand Name | LSD | |
| Model Number | EM-6B2 | Type | Other, Crimping tool machine | |
| Application | Crimping |
Product Description
Electrical crimping Tool used for crimping different kinds of terminals
Electric automatic crimping machine/crimper tool EM-6B2
==================================
Driven by fixed speed motor
Interchangeable jaws(dies)
electrical terminal electric crimping machine tools EM-6B1 EM-6B2
1.Power Source:Electricity
2.Rated Voltage:110V/220V
3.Crimping Time:1.5 seconds(60HZ)
1.8 seconds(50HZ)
Type EM-6B2 is an ideal crimper for connection in cabinet,it is applicable for pre-insulated terminal crimping from 0.25mm² to 10mm² and CU/AL cutting in 7mm.It is supplied with seven kinds of accurate and replaceable die sets.The crimper has high working efficiency and wide application.
The crimper is driven by fixed speed motor so that it owns advantages of high efficiency and high quality not only in crimping force but crimping speed,it is good for terminal crimping in large or medium quantity.If there are a lot of different kinds of terminals to be crimped,This crimper is the best choice.
| Specification | |
| Item No. | EM-6B1/EM-6B2 |
| Output | 12.7KN |
| Max. Crimping Force | Insulated terminals 5.5mm2 |
| Crimping Time | 1.5 S(60Hz) 1.8 S(60Hz) |
| Volts | AC100-125V/200-220V |
| Power Consumption | 90W |
| Range of Application | 03C crimping pre-insulated terminals 0.5-6mm2/AWG20-10 10 crimping non-insulated terminals 1.5-6mm2/AWG18-10 101 crimping non-insulated terminals 1.5-10mm2/AWG18-8 04WFL crimping wire-end ferrules 0.5-4mm2/20-/AWG20-12 03B crimping non-insulated open plug type terminals 02H crimping coaxial cable connectors 6.5, 5.4, 1.72mm/RG55, RG28, RG59… |
| External Dimention | 325mm ×265mm×150mm |

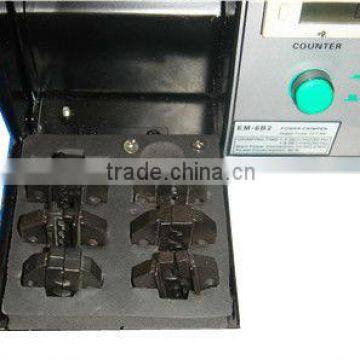

| Accessories | Six die sets, one foot valve, plugs |
(If you do not need the die sets listed above, Please contact us. Other crimping die sets are aslo selectable.) sleeves

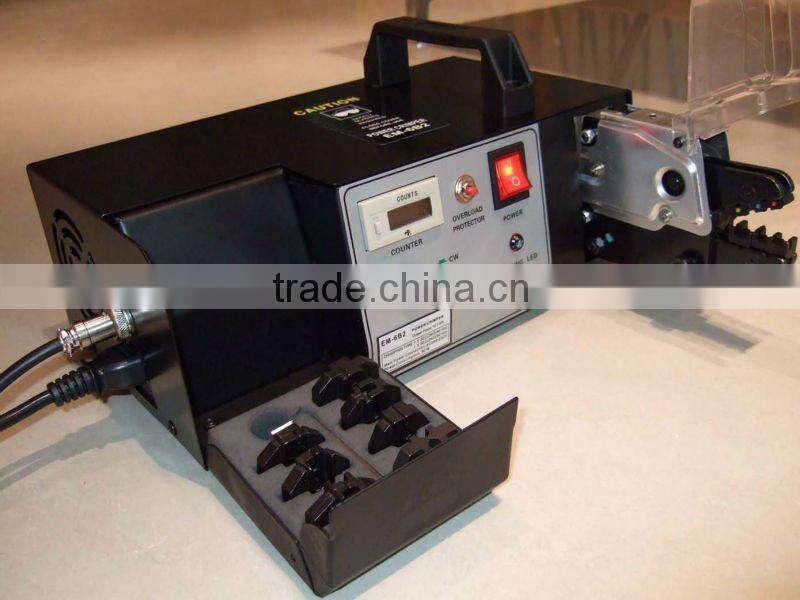

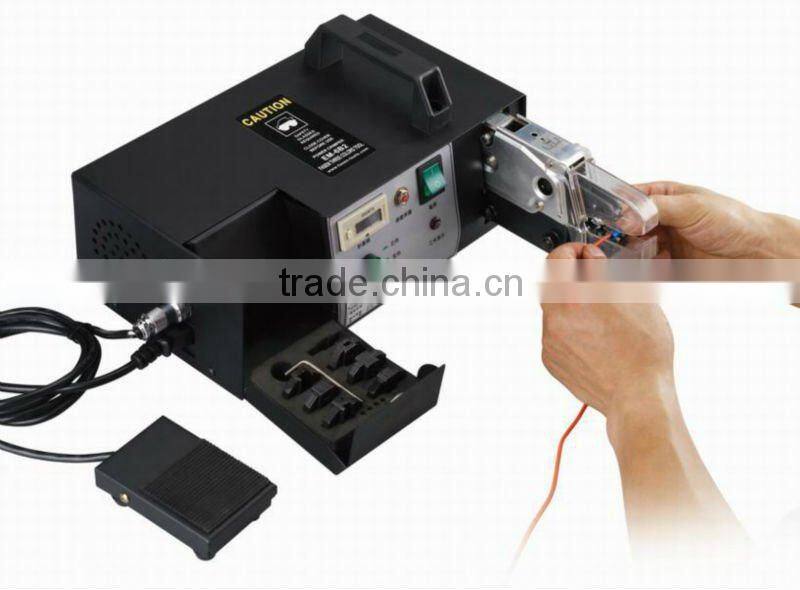

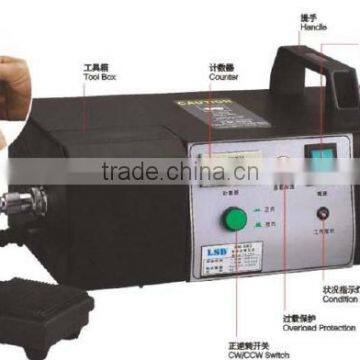

Pictures of EM-6B2 automated machine tools
1.Trade Items Of Products
| Payment | L/C,T/T,Western Union |
| Port | Shanghai or Ningbo |
| MOQ | 1 set |
| Supply Ability | 5000 sets/Month |
| OEM | Accept |
| Delivery | A.By Courier: 4-7 Working days by special offer |
| B.By Air: 7 Working days at appointed airport | |
| C.By Sea: 20-25 Working days at appointed port |

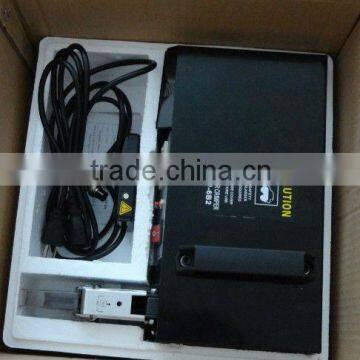

2.Packaging Of Products
A. Common Packing: Certain Pcs + Blister card + Export Carton
B. Customized Packing: OEM Label, Inner Box, Blister, etc.
Wenzhou LiSiDa Tools Co., Ltd is specialized in the manufacture of Electrician's tools, the products are included in the: Hand Crimping tools,Hydraulic tools, Cable Cutter,Cable Stripper,Network tools,tool set and other tools etc.
• Our products are direct from factory, there is no middle man, no high markup
• So we can provide quality items yet very competitive price
• We have always been doing our best to provide the best service and reliable products for our customer
If you have any questions or want to know more information about our products you can contact us at any of your convenience time, we will be happy to serve you and welcome to our company !
