Specifications
extruded potato chips processing line1.Excellent quality
2.Easy operation
3.Best after sale service
4.different shapes

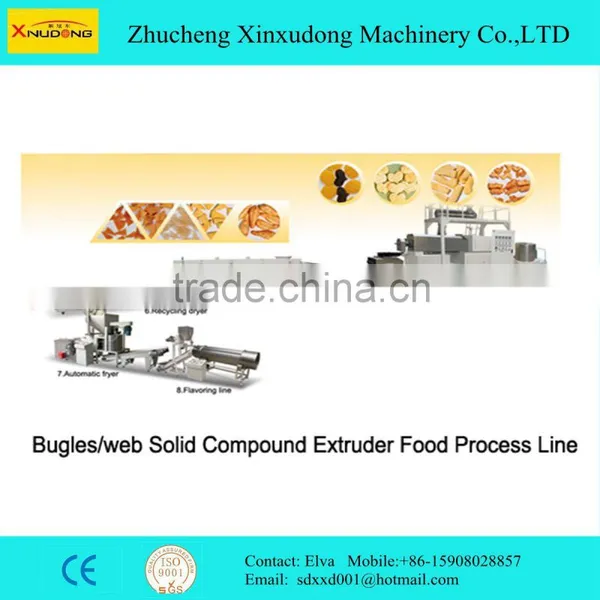

Extrude bugles chips food production line
· The processing line use potato starch, corn starch, cassava starch, wheat flour as material produced various shapes second inflating food. Different shapes are popular in the market, such as crisp pea,shell,screw,square tube,round tube,wave etc.
· This line is reasonable design, high automation,extruding parameter exactitude controlled.Main extruder has high and low pressure screw, enwide the scope of raw material.
· We have both half-automatic processing and automatic processing line
Main equipments
1.Mixer
2.Single screw extruder
3.Cutter
4.Pulling and cutting machine
5.Dryer machine
6.Automatic fryer
7.Flavoring machine
NO. |
EQUIPMENT |
QUANTITY |
TECHNICAL PARAMETER |
IMAGE |
FUNCTION |
1 |
Mixer |
1 |
Power:4kw Output:50kg/tube Size:0.8*0.7*1.2m |
|
To mix the raw materals with the water
|
2 |
Screw conveyer |
1 |
Power:1.1kw Output:100-500kg/h Size: 0.2*0.8*3.0m |
|
To send the materials to the extruder |
3 |
CYS-100 single screw extruder |
1 |
Power:22kw Length-diameter ratio: 1640/100 Output:60-100kg/h Size: 2.5*1.0*2.0m |
|
To extrude and inflate the food.the main machine of the line |
4 |
cutting machine For cutting 3D/screw shape food |
1 |
Power:1.1kw Output:100-500kg/h Size: 2.5*1.5*0.8m |
|
To shape the food, like3D,screw etc |
5 |
Cooling machine |
1 |
Power:0.75kw Output:100-500kg/h Size: 1.2*0.6*0.6m |
|
To cool the food |
6 |
Dryer machine |
2 |
Power:0.75kw Output:100-250kg/h Size: 2.5*0.6*2.0m |
|
To drying the food |
7 |
Fryer machine |
1 |
Power:4kw Output:150kg/h Size: 4.55*1.98*2.0m |
|
To fry the food |
8 |
Single roller flavoring system
|
1 |
Power:3kw Output:180kg/h Size: 4*0.8 *1.6m |
|
To flavor the food |
flow chart
Finised products
Package:Wooden package or make package as customers' requirments.
Shipping: Shipping is strictly followed the contract signed with customers.
1, Supply all informaton about the machinery to seller if customer require, such as the price list, the operation instruction, the video or other.
2, we will prepare and send all documents before goods reaching destionation port. The documents include sales contract, Immercial invoice, Packing list and other certificate.
3, If customer can not install and operate the machine, we will show clients the install instruction or video. If cusotmer stil can not do it, we will send our engineer to install and teach them to use.
4, One year warranty. Within one year from the signed contract, we can provide free service.
Zhucheng Xinxudong Machinery Co.,Ltd has been in the line of food processing machinery for more than 10 years and have a good reputation in China and word. The main products are following:
1, Various types of fryers: small deep fryers, medium and large continuation frying machine
2, potato chips / Frech Fries processing line
3, Corn flake processing machinery
4, Pet food processing machinery
5, Bean and peanut processing machinery
6, vegetable and fruit processing machinery.
and other food proeessing machinery.
