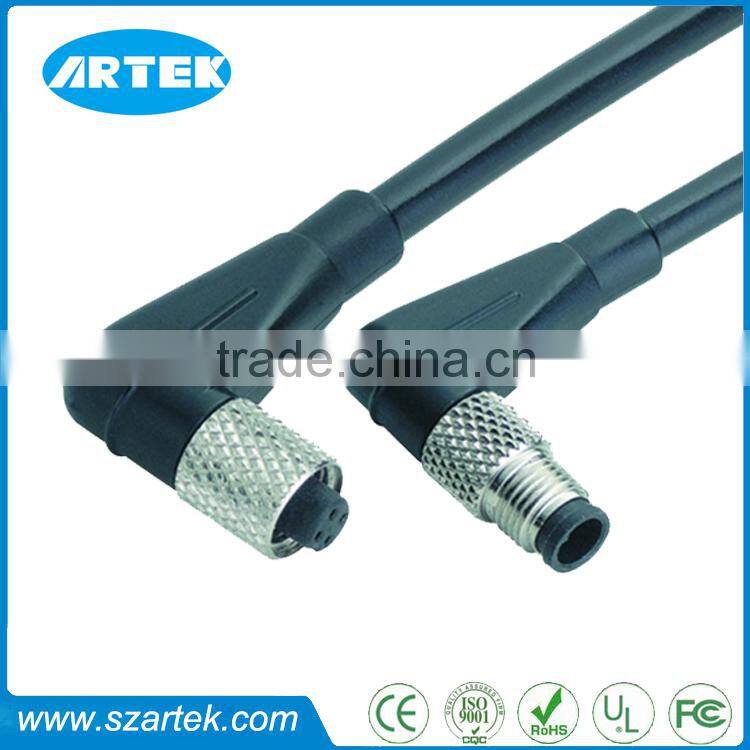

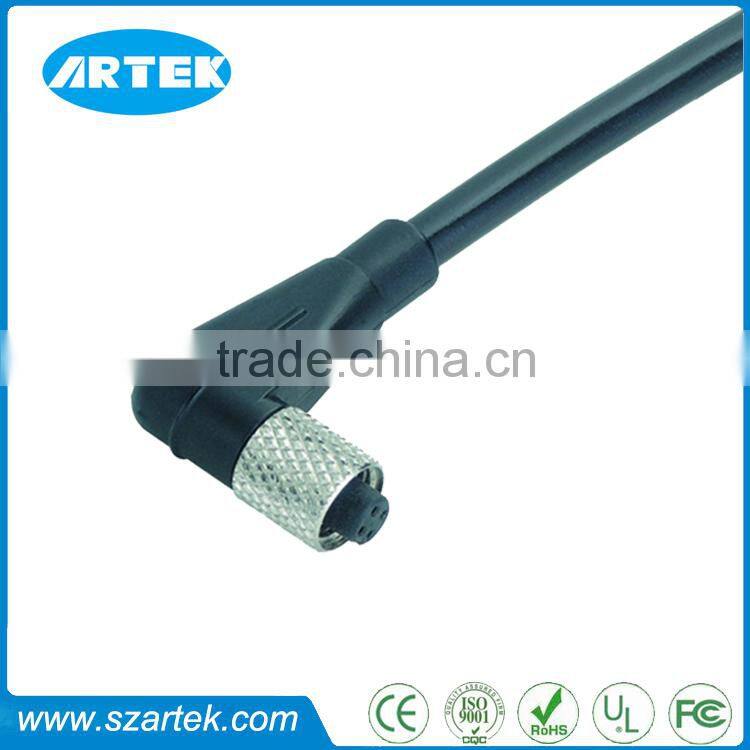

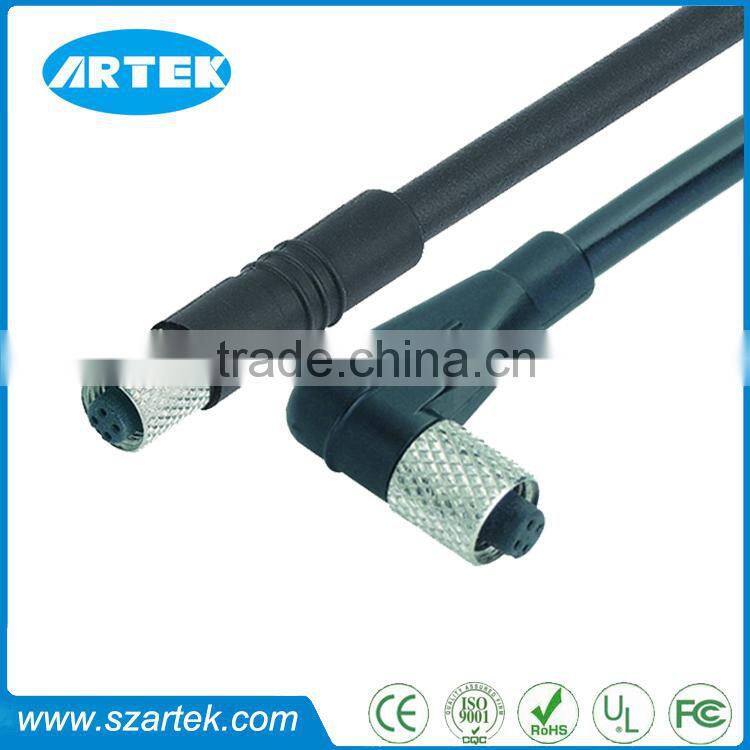

90 degree 4pin female m5 molded waterproof connector cable
Technical data :
Standard :IEC 61076-2-101
Ambient temperature:-20°C~+80°C
Insulation resistance ≥ 100M Ω
Contact resistance:≤5MΩ
Degree of peotection : IP67 in locked condition
Certified:CE & UL
connector specification:
Insert : PA+GF
Contac: brass with gold plating
Screw/nut: Brass with nickel plated
Overmold:TPU
Cable Jacket:
Cable Jacket:PVC or PUR
Wire insulation:PVC
Cable length:Option

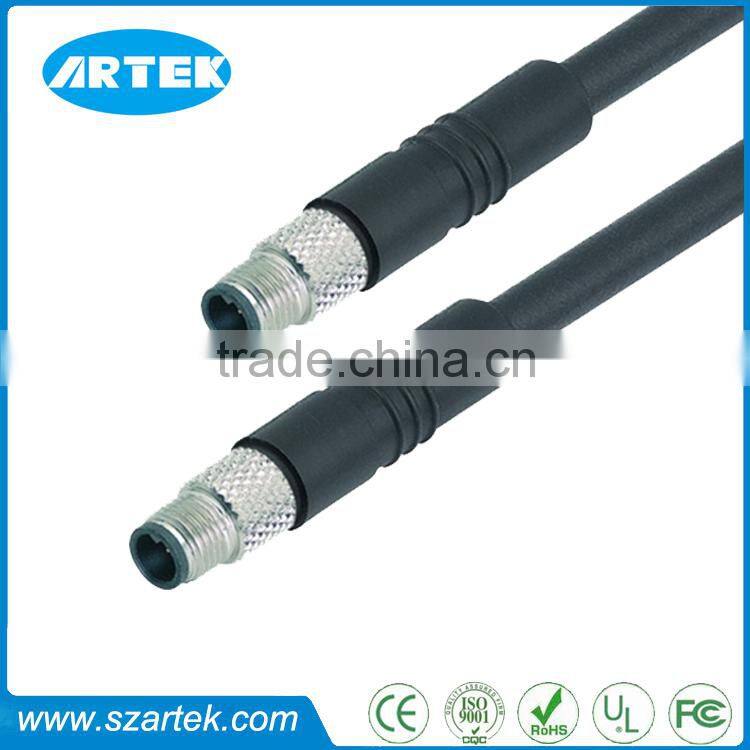

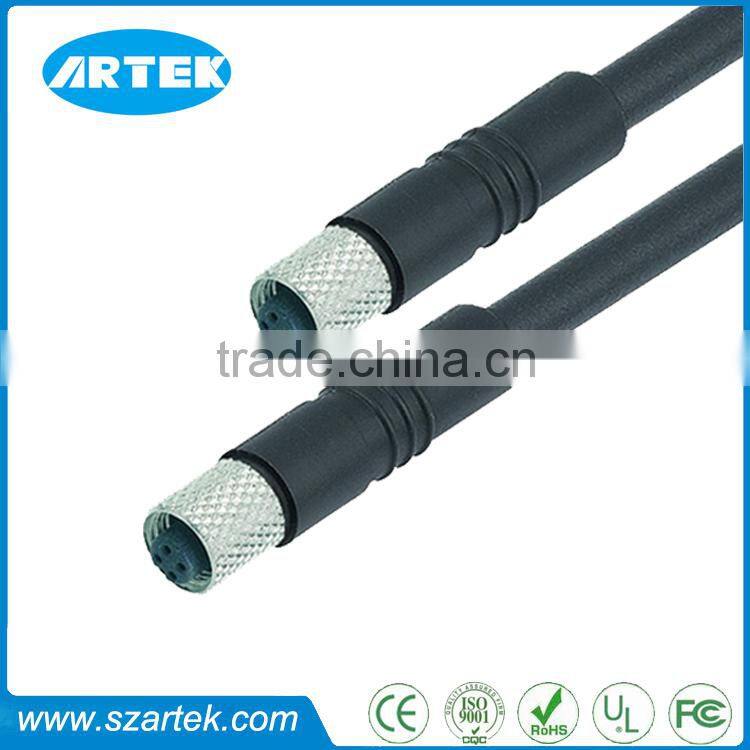

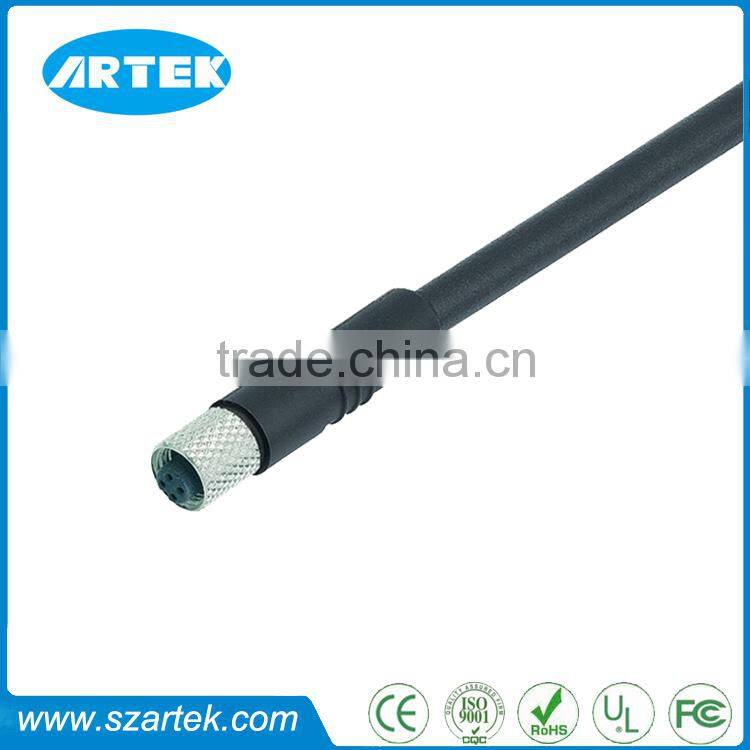

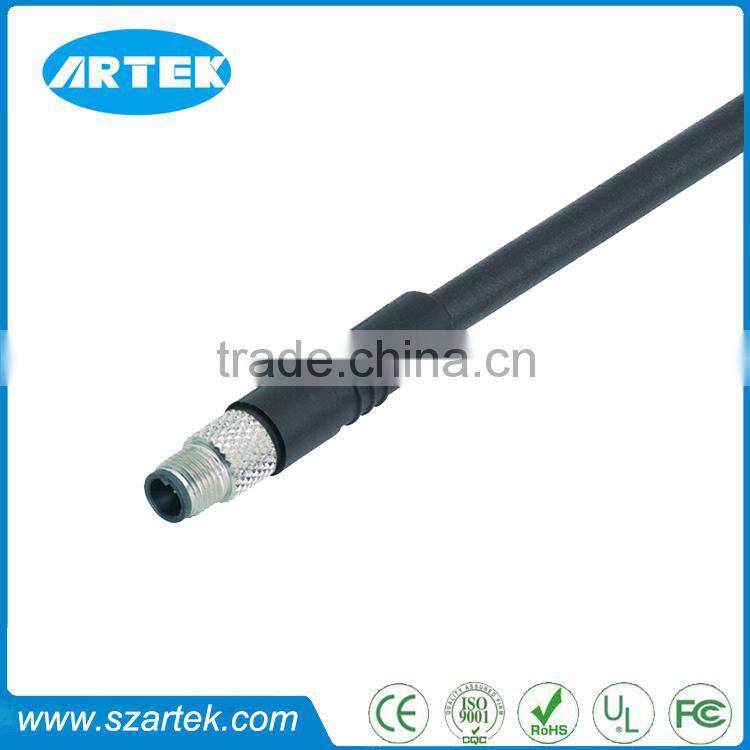

waterproof M5 connector,fix screw with self-locking threaded joint,waterproof IP67 M5 cable connector.
Protected from dust and water during immersion,resistance to many oils and chemical.
Can be easily connected to proximity switches,photoelectric barries,flow moitoring devices
and field bus components sensor devices and actuator devices.
Satisfy all the requirements of sensor devices and actuator devices in automation technology.
