Oval Flange Type Linear Bearing LMH20UU
US$ 0.101 - 0.999
/ Piece
1000 Pieces(Min. Order)
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Brand Name | neutral brand | Precision Rating | ABEC1,ABEC3,ABEC5,ABEC7,ABEC9,P0,P6,P5,P4,P2 | |
| Model Number | Oval flange type linear bearing LMH20UU | Place of Origin | Guangdong, China |
Product Description
Specifications
1. Oval flange type linear bearing LMH20UU2. Enough stock,competitive price.
3. 18 yearsf SGS Audited bearing manfuacture.
Oval flange type linear bearing LMH20UU Specifications
1.Structure : Linear
2. High accuracy.
3. Round Flange bearing
4. ISO9001:2000 Quality.
5. O OEM and ODM service.
6. Favorable price.
7. Size:20X32X42mm
Oval flange type linear bearing LMH20UU Applications:
Automobile,Motorbike,Electric tools ,Small appliances ,Textile machine,Printing machine, Fitness sports equipment,Medical device,Printer,Automatictellermachine,Modelairplane etc.
Precision rating: ABEC1,ABEC3,ABEC5,ABEC7,ABEC9,P0,P6,P5,P4,P2
Delivery time: 5-20days for standard,30days for non-standard .
Payment terms: L/C,T/T,Western Union.
Packaging details:
Tubes and cartons. We can provide other packaging materials according to customers' requirment.

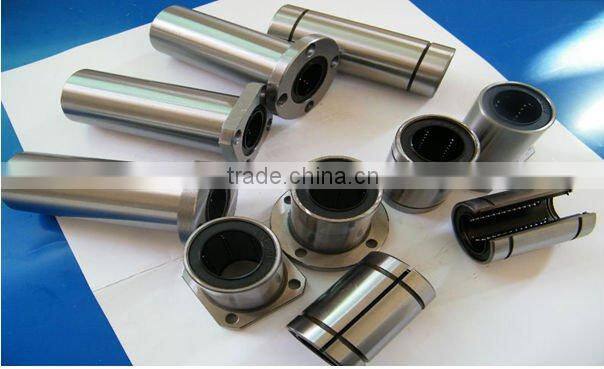

Flange linear bearing series:LMH6uu to LMH30UU
| Model | No of ball rows | Dimension | Basic load rating | ||||||||||||||
| Flanged | Hole for attachment | c | Co | ||||||||||||||
| dr | Tolerance | D | T | L | T | D1 | W | H | A | F | d1 | d2 | h | (kgf) | (kgf) | ||
| LMH6 | 4 | 6 | 0 | 12 | 0 | 19 | 0 | 28 | 18 | 5 | 20 | 3.5 | 6 | 3.1 | 21 | 27 | |
| LMH8 | 4 | 8 | -0.009 | 15 | -0.013 | 24 | -0.2 | 32 | 21 | 5 | 24 | 3.5 | 6 | 3.1 | 27 | 41 | |
| LMH10 | 4 | 10 | 19 | 0 | 29 | 40 | 25 | 6 | 29 | 4.5 | 7.5 | 4.1 | 38 | 56 | |||
| LMH12 | 4 | 12 | 21 | -0.016 | 30 | 42 | 27 | 6 | 32 | 4.5 | 7.5 | 4.1 | 42 | 61 | |||
| LMH13 | 4 | 13 | 23 | 32 | 43 | 29 | 6 | 33 | 4.5 | 7.5 | 4.1 | 52 | 79 | ||||
| LMH16 | 5 | 16 | 28 | 37 | 48 | 34 | 6 | 31 | 22 | 4.5 | 7.5 | 4.1 | 79 | 120 | |||
| LMH20 | 5 | 20 | 0 | 32 | 0 | 42 | 54 | 38 | 8 | 36 | 24 | 5.5 | 9 | 5.1 | 88 | 140 | |
| LMH25 | 6 | 25 | -0.01 | 40 | -0.019 | 59 | 0 | 62 | 46 | 8 | 40 | 32 | 5.5 | 9 | 5.1 | 100 | 160 |
| LMH30 | 6 | 30 | 45 | 64 | -0.3 | 74 | 51 | 10 | 49 | 35 | 6.6 | 11 | 6.1 | 160 | 280 | ||
