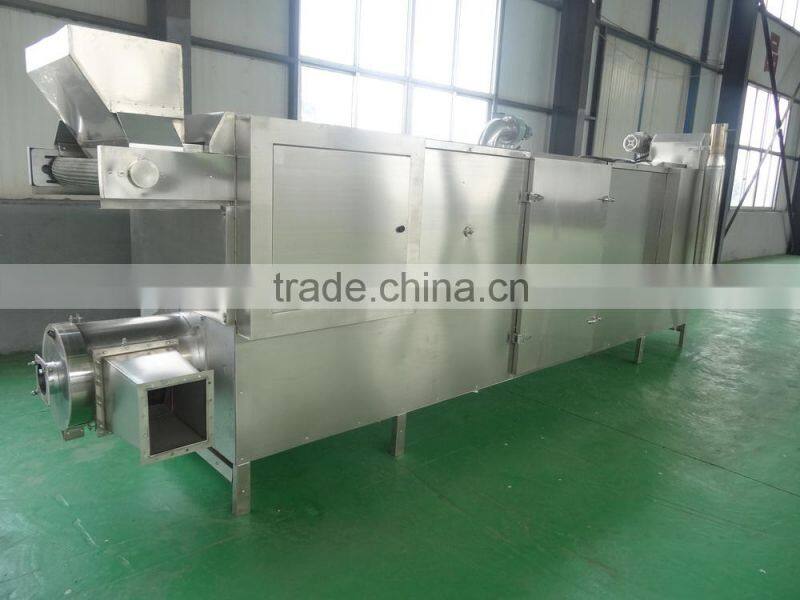

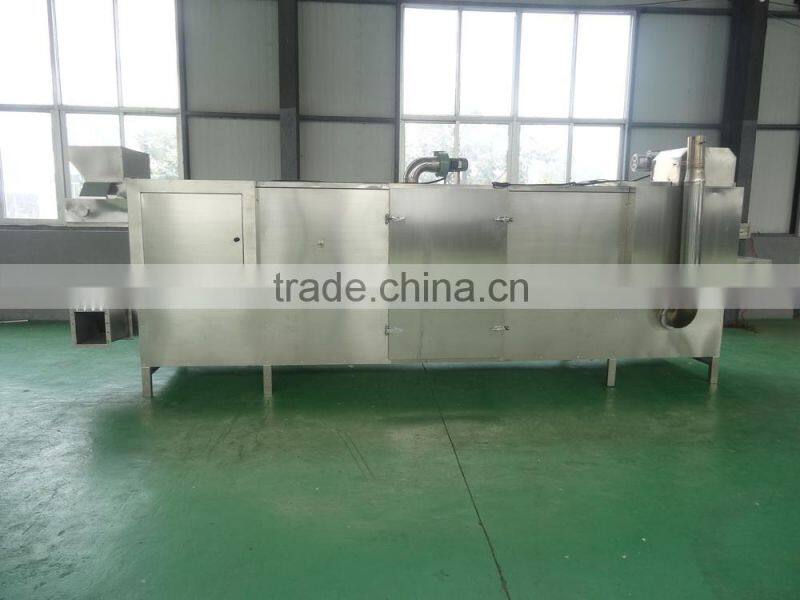

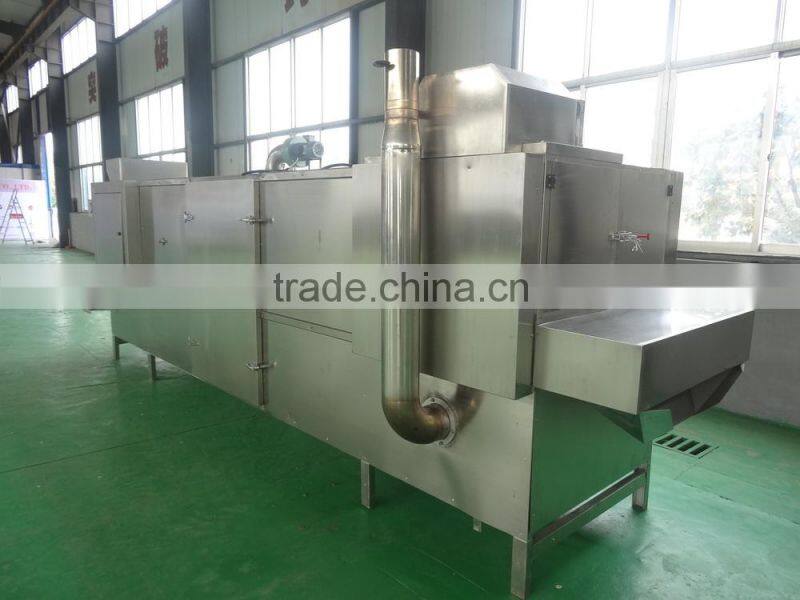

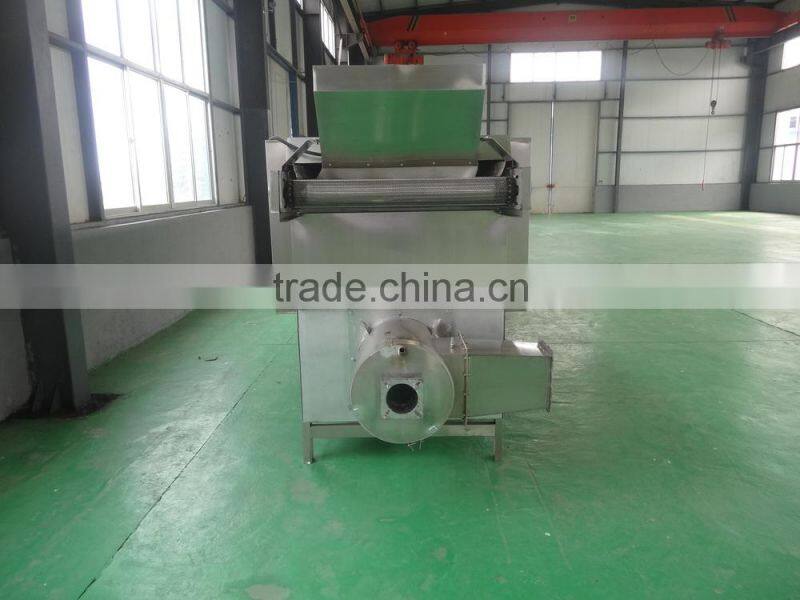

Fruit and Vegetable Dehydrator Machine

The baking oven is our company adopt international advanced food baking technology, combined with many years rich experience in the field of food machinery technology research of independent research and development of special equipment to produce food baking equipment. Is a special equipment, baking food by adjusting the temperature and speed of mesh belt transmission, can used to bake for different kinds of food. Is energy-saving equipment, adopts frequency control of motor speed, easy operation, multi-usage, greatly simplifies the production process, reduces the production cost. It has advantages of compact and reasonable structure, high automation, high output, the craft is advanced, small footprint, easy maintenance, long service life.

It can bake puffed food, pet food, peanut, melon seeds, jujube, histone and all kinds of nuts. Mesh belt and insulation board are all made of stainless steel materials, sanitation and health. Mesh belt speed is adjustable so as to adjust the food in the oven drying time. Automatic temperature control, can according to need to set; Automatic temperature control of temperature can be set between 0-220 degrees.

Model: HGJ-5000*1000/3

Heating method: steam heating

Steam inlet pressure: 0.3Mpa

Baking temperature range: 80—100 ℃

Baking time: 15—20 minutes

Dimension: 7300*1200*1900mm

Belt width: 1000mm

Mesh Belt type: Spiral mesh belt

Total power: 4.5 KW

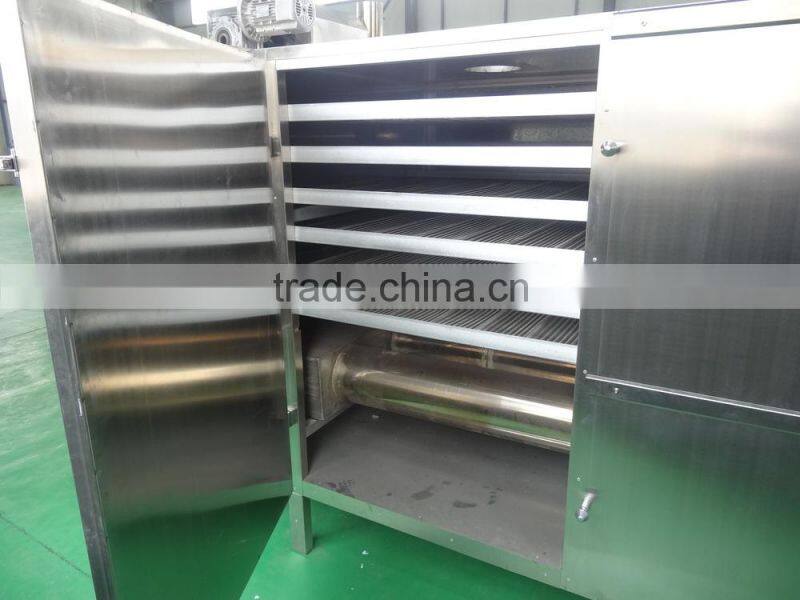

Adopt steam heat exchanger structure, three layer spiral mesh belt.
