Factory price high quality DC12-24V 3 Channel DMX512 Decorder
Technical Parameters
Working temperature: -20-60 ℃
Supply voltage: DC12~24V
Output:3 channels
External dimension: L166×W67×H41mm
Packing size: L170×W95×H50(mm)
Net weight: 360g
Gross weight: 408g
Static power consumption: <1W
Output current: each channel 4A or 8A optional
Output power: 4A each channel 12V:<144W, 24V:<288W
8A each channel 12V:<288W, 24V:<576W
DMX512standard:DMX512/1990
How to Use
This product is in compliance with DMX512 protocol, and compatible autoindex addressing and manual establishment address.
Each universal DMX controller takes up 3 DMX addresses. It adopts 2 ways (auto-index addressing and code switch) to set up the address. When adopting the auto-index addressing, all switches are “off” status. When adopting the code switch to set up address, the 10th bit(FUN) is “off” status, and other 9 bits are binary value code switch which are used to set up the DMX starting address code. The first bit is the lowest order bit, and the ninth is the highest order bit. That can set up 511 address codes. The DMX starting address code is equal to the sum of 1st to 9th bit. If move down one bit of code switch (“ON” set “1”), you can get the place-value of this bit. If move up (set “0”), the place-value is 0. For example: if you want to set up DMX starting address code for 73, you should move down the 7th, 4th, and 1st bit of code switch for “1”, and others for “0”, Then the place-value’s sum of 1st to 9th bit is 64+8+1. That is to say, the DMX512 starting address code is 73. (The correspondence dials code position is as follows)

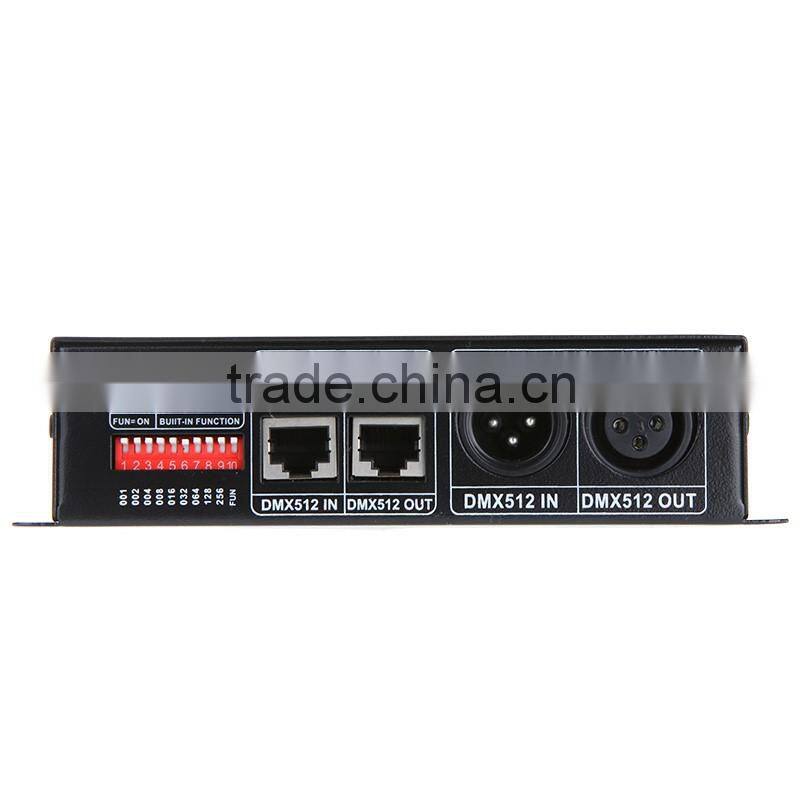

To choose the channel from the Dial in-line Package(DIP) Switch:
Decimals | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
Weight-number | 1 | 2 | 4 | 8 | 16 | 32 | 64 | 128 | 256 | FUN |

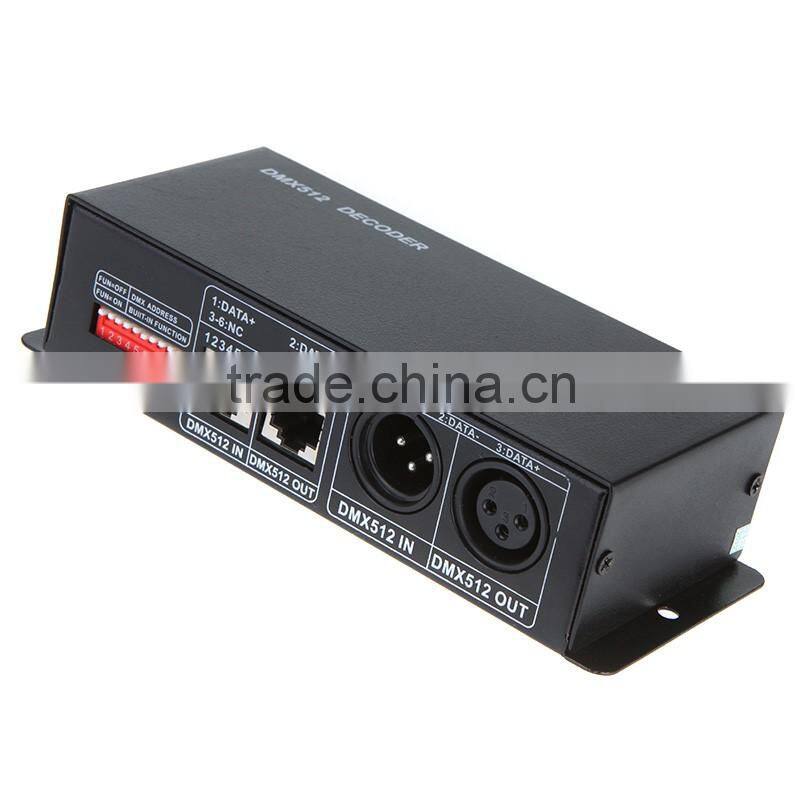

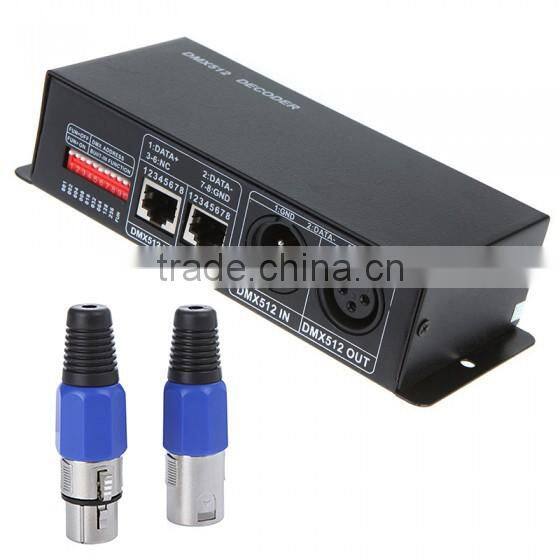

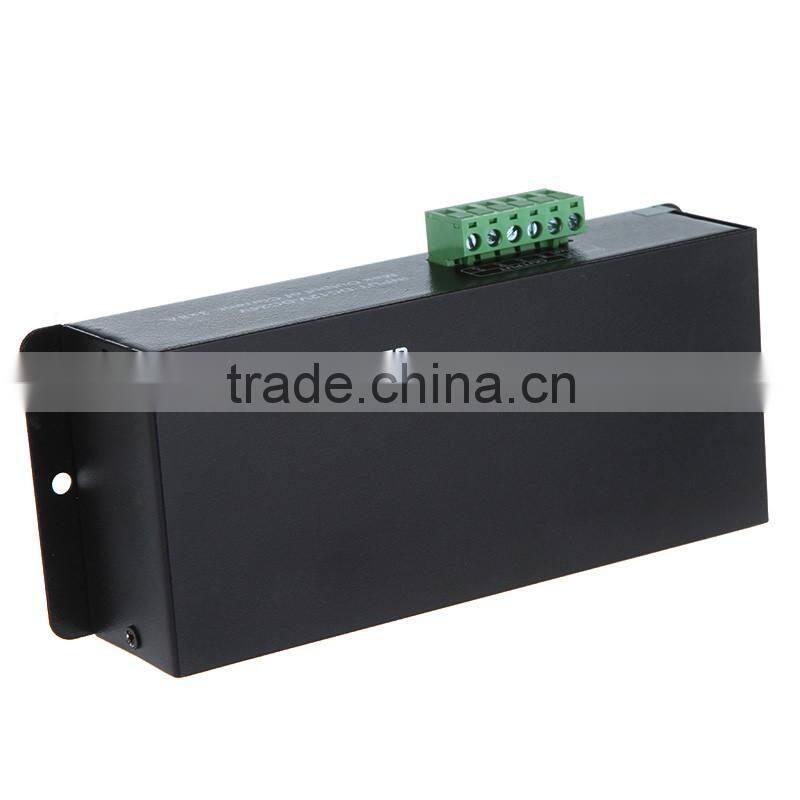

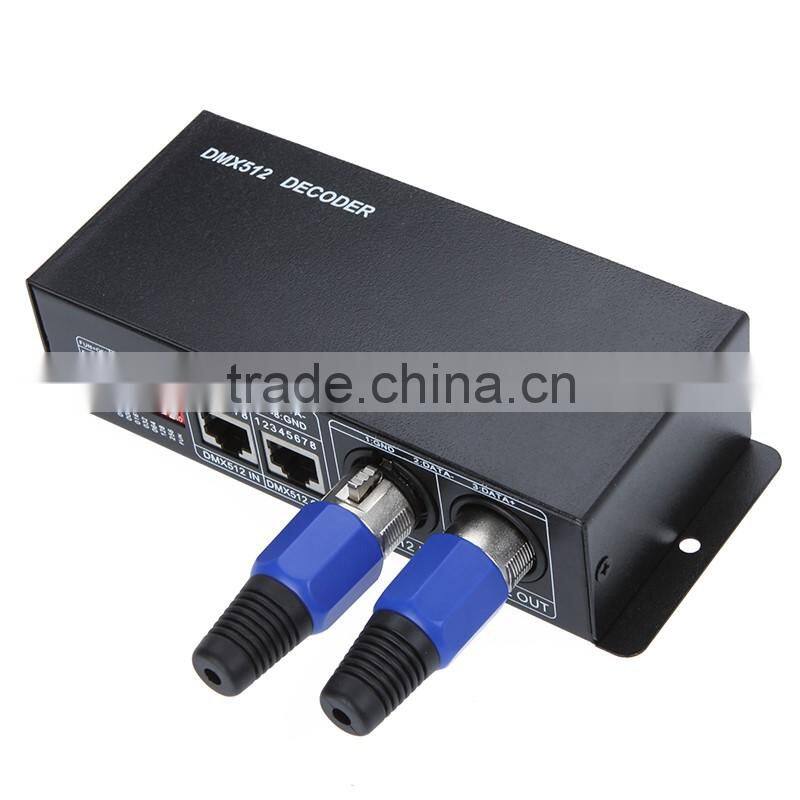

PProduct pictures for Factory price high quality DC12-24V 3 Channel DMX512 Decorder
Green Lantern Optoelectrical Light Factory Profile:
1) We are a large LED lighting manufacturer for 12 years
2) We founded in 2005 and already established 3 factories and 1 trading company
3) We specialize in producing LED lights, such as Smart led bulb,Milight serious,LED Rope Lights, Rope Lights, LED Panel light,LED Controller,LED tube,LED downlight..
4) We focus on Quality manufacture our lights in accordance with CE,GS, RoHS ,SAA ,TUV certification
5) We meet and exceed global quality standards
6) We now ship well over half of our output to countries and regions worldwide
1.Reply your inquiry in 12 hrs
2.Any professional question would get a professional answer.
3.ODM/OEM is accept.
4.All products offer CE&ROHS&FCC Approved,2 years warranty.
5.Product damaged in non-human factors would be replaced freely.
1.How could I trust you?
We are Alibaba gold supplier,registered in administration,supervised by Alibaba rule and Chinese law.
2.How about your company ability?
We have 2 professional production line,4 sets Yamaha chip mounter,50-100 workers,
We can offer 50,000 pcs tubes,100,000pcs bulbs per month at least.
3.How about payment?
We accept payment as below:
T/T:Bank transfer,30% deposit,70% balance before shipping for order >20,000USD
West Union:Fast,low charge
L/C:Only for order >50,000USD
Alibaba Escrow:Protected by Alibaba
Paypal:Good way for sample order
1. Payment: T/T, Western Union, Paypal available.
2. Lead time: Normally 3~5 working days.
3. Samples can be delivery within 2~3 working days.
4. Shipping cost are quoted according to your requirement.
5. Delivery ways:DHL,EMS,UPS,FedEx door to door service,by sea, air and etc.
6. MOQ:small order is available.
