Home > Products > Mono Solar Panel > 300w Monocrystalline156*156mm Cells Pv Panel
300w Monocrystalline156*156mm Cells Pv Panel
- Qingdao
- T/T L/C D/P D/A Credit Card
You May Like
-
High Efficiency 300w Monocrystalline Pv Solar Penal With Factory Direct Price
-
Best Price Panels Solar 250w Mono Solar Pv Panels High Efficiency Mono Solar Panel Made By A Class Solar Cell
-
2016 Most Popular 250w Best Price Per Watt Solar Panels
-
300w PV Module Monocrystalline Silicon Solar Panel Cheapest Price With Ce,Tuv,IEC,CEC Certificates
-
Low Price Photovoltaic 300 Watt Pv Panel
-
Panel Diellor 250w With TUV/IEC/CEC/CE
Product Details
| Place of Origin | Shandong, China | Brand Name | Hilight | |
| Model Number | HSPV-M-300W | Material | Monocrystalline Silicon | |
| Size | 1956*992*50mm | Number of Cells | 72 | |
| Max. Power | 305W |
Product Description
-----Why Choose 300w Monocrystalline Solar Panel -----
1.Long-term stability and reliability.
2.High cell efficiency with good-quality crystal silicon materials.
3. High transmit , low-iron tempered glass with enhanced stiffness and impact resistance.
4. Unique frame designed with high mechanical strength for easy Installation and durable requirement

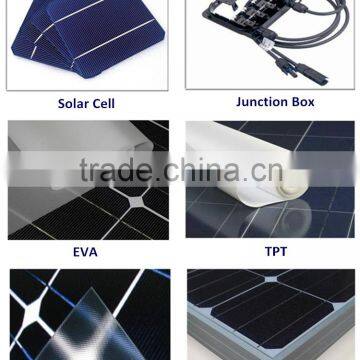

5. Advanced encapsulation materials to provide efficient protection from various environmental conditions.

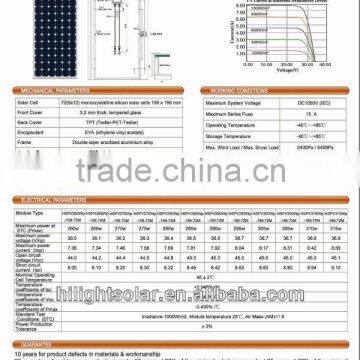

----- Specification of 300w Monocrystalline Solar Panel -----
| Module Type | HSPV280Wp-156-72M | HSPV290Wp-156-72M | HSPV300Wp-156-72M | HSPV310Wp-156-72M |
| Maximum power at STC (Pmax) | 280w | 290w | 300w | 310w |
| Maximum power voltage (Vmp) | 36.4 | 36.6 | 36.7 | 36.8 |
| Maximum power current (Imp) | 7.69 | 7.92 | 8.17 | 8.42 |
| Open circuit voltage (Voc) | 44.8 | 45.0 | 45.0 | 45.0 |
| Short circuit current (Isc) | 8.32 | 8.42 | 8.63 | 8.94 |
| Nominal Operating Cell Temperature | 45 ± 2°C | |||
| Temperature coefficients of Isc | +0.049% /°C | |||
| Temperature coefficients of Voc | -0.340% /°C | |||
| Temperature coefficients of Pmax | -0.430% /°C | |||
| Standard Test Conditions (STC) | Irradiance 1000W/m2, Module temperature 25°C, Air Mass (AM)=1.5 | |||
| Power Production Tolerance | ± 3% | |||

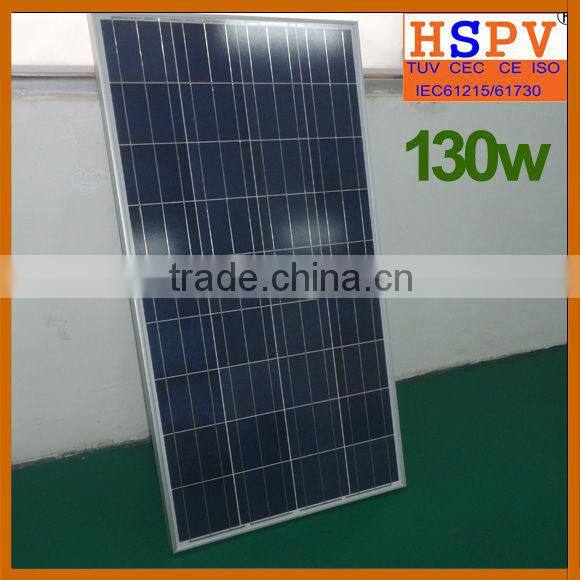

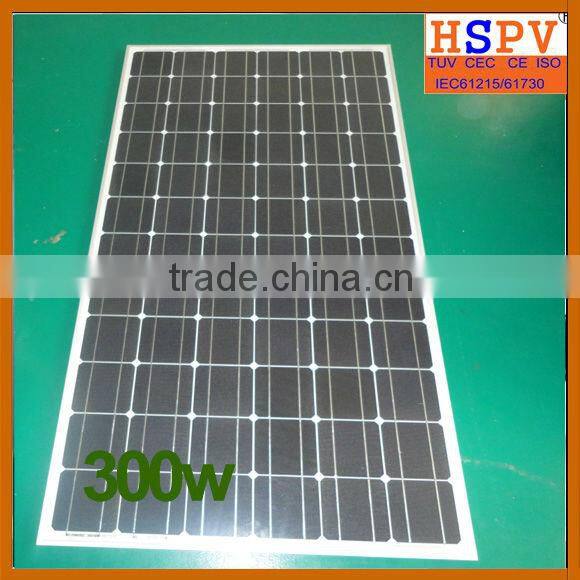

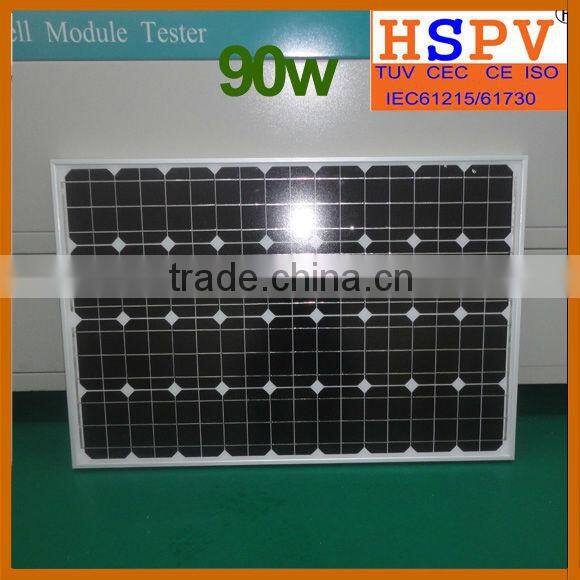

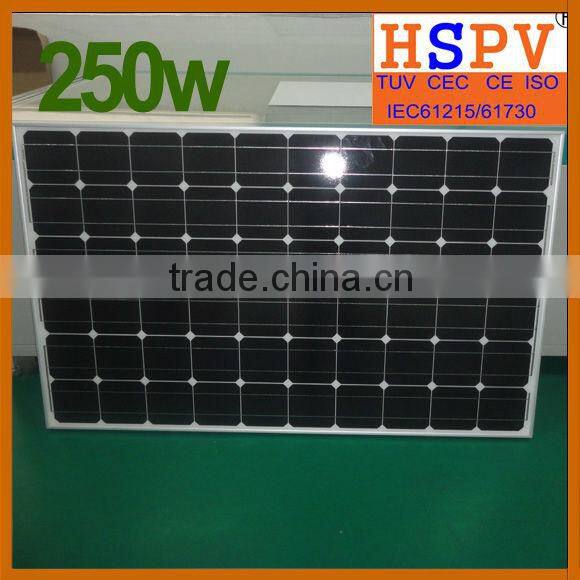

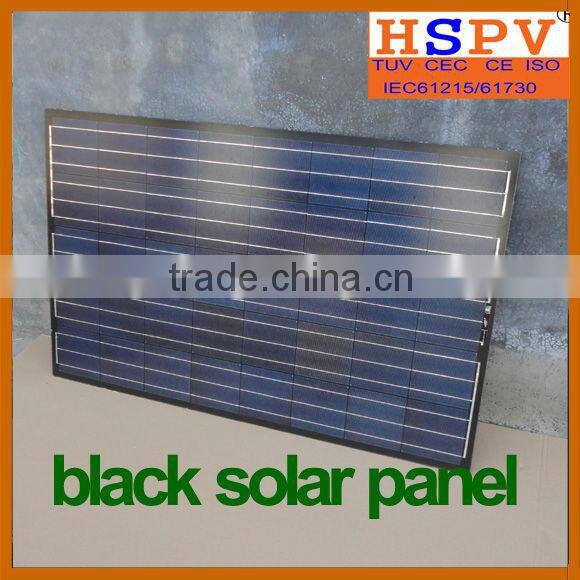

----- Our Products------

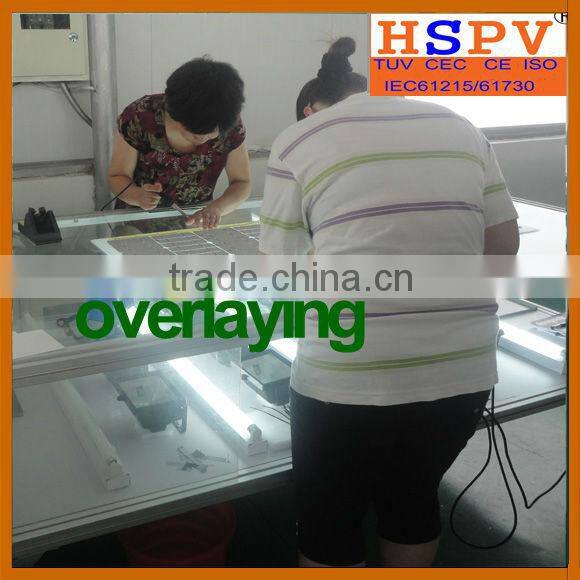

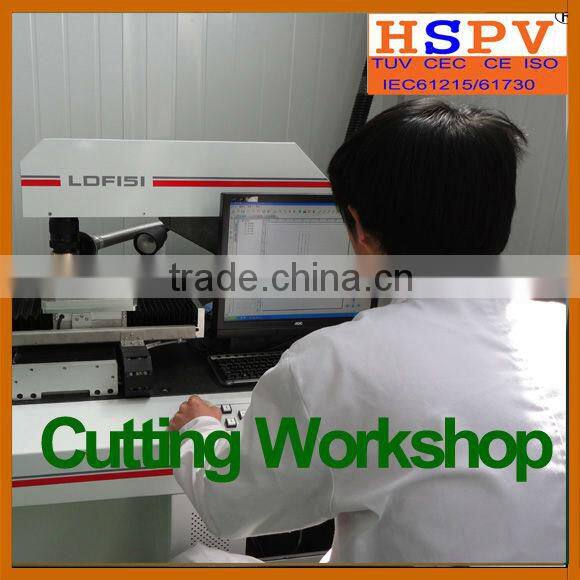

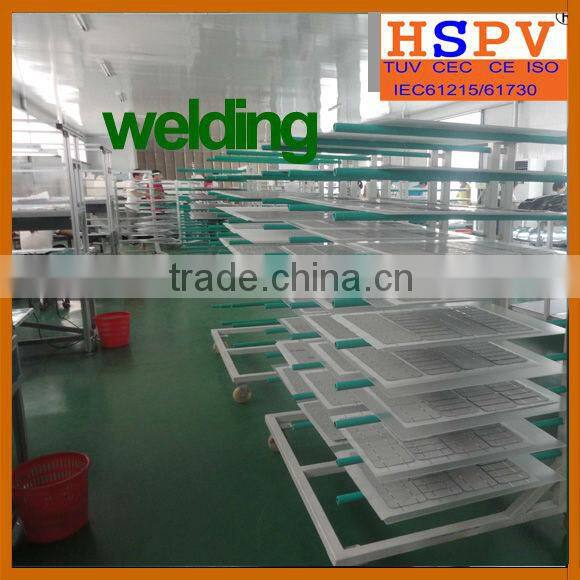

----- Our Workshop----

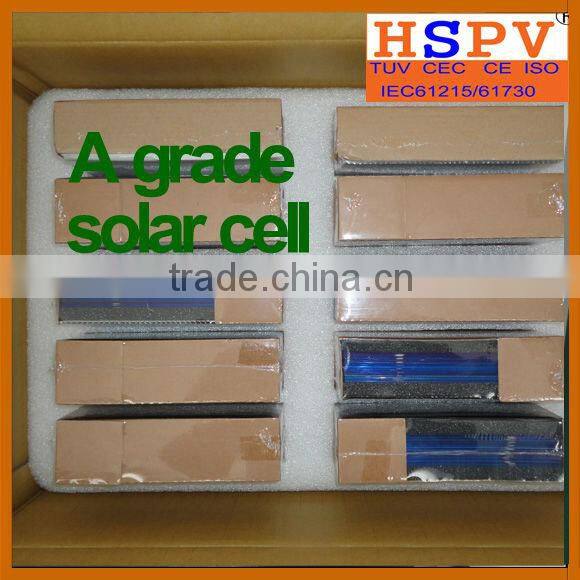

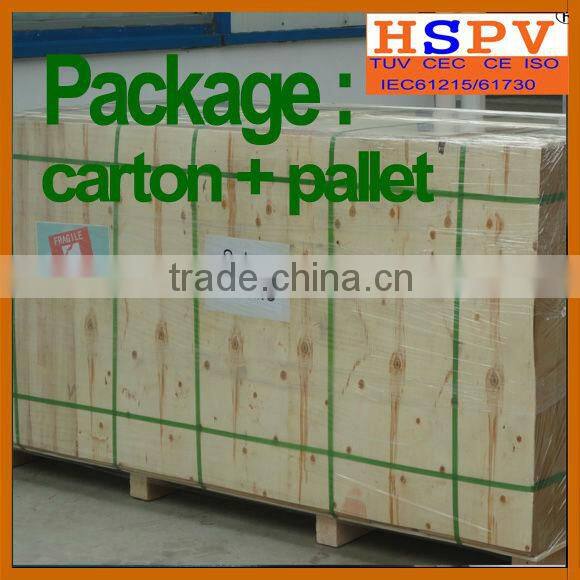

----- Our Package------
----- Our Certificates of 300w Pv System Photovoltaic Solar Panel ----
-----Kindly contact me if there is any question---------
Contact Us
- Shandong Hilight-Solar Co., Ltd.
- Contact nameAimei sun Chat Now
- Phone86-532-55570628
- AddressMazhuang Country Daixi Office Zouping county, Binzhou, Shandong
