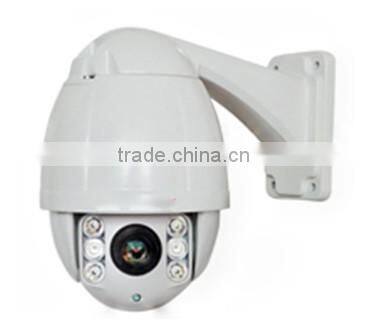

10X 1080P SONY CMOS HD PTZ CAMERA ,weatherproof IP66 outdoor HD-SDI IR High Speed Dome

milestone compatible PTZ Camera 10X 1080P SONY CMOS  HD PTZ CAMERA ,weatherproof IP66 outdoor HD-SDI IR High Speed Dome

Item

Dome Model

ESD80T-10H108

* Camera Module inside

10X 1080P SONY CMOS - FTZ10H108

Featuers

* 4.5” Metal case
* 50M IR. 3 groups PWM Smart IR technology enables clear picture in darkness.
* Internal temperature display
* Smart current/temperature control tech extends the IR LED working life greatly.
* Operation protection in low temperature, specially designed for cold area.
* External DIP configuration for add. & bps setting
* Configuration auto save function on power OFF

Pan Speed/Range

360° endless @ 0.1-270°/s

Tile Speed/Range

-5~90° (Auto Flip) @ 0.1-270°/s

Manual Operation Speed

High / Middle / Low

PTZ position display

ON / OFF

Digital Zoom

Support, change speed based on zoom

Scan between 2 presents

Support

Preset

220

Patrol

4, Max.16 guard points, dwell time user selectable

Pattern Scan

4

Park action

Support

Private Zone

 --

Audio / Video output

CVBS, SDI SMPTE 292M standard

OSD Menu

English, Spanish etc.

RS485 protocol

Pelco-D/P

Alert

Support

Power Supply

AC 24V 3A

Power consumption

25W Max, 30W Max with IR ON

Working Condition

-40°C~60°C,less than 90%RH (frostless)

Weather Proof

TVS6000V lightning protection, surge protection and voltage transient protection, IP66 outdoor

Bracket Options

Wall-mount / Hanging-mount

Package Size (mm)

240*240*260

G.W. (kgs)

3.4
