Help CenterCeramic Bearing 6902
Related Products
Specifications
1.ceramic bearing 69022. About us: Manufacture
3. OEM and ODM service
4. Seal type:OPEN 2RS ZZ
Shenzhen Xinchangsheng Hardware Co. Ltd.

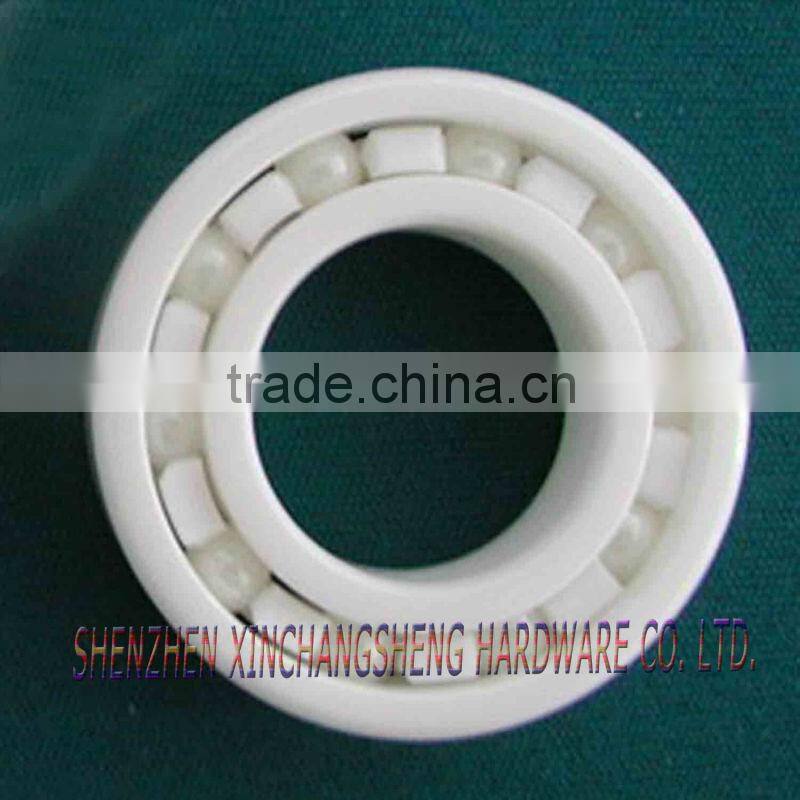

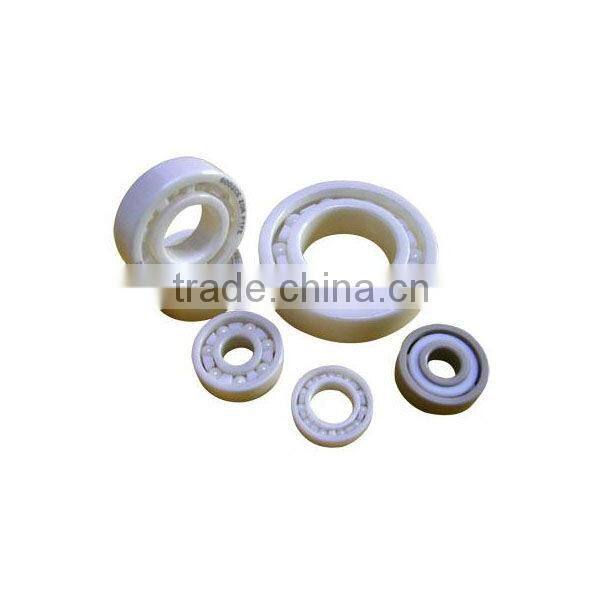

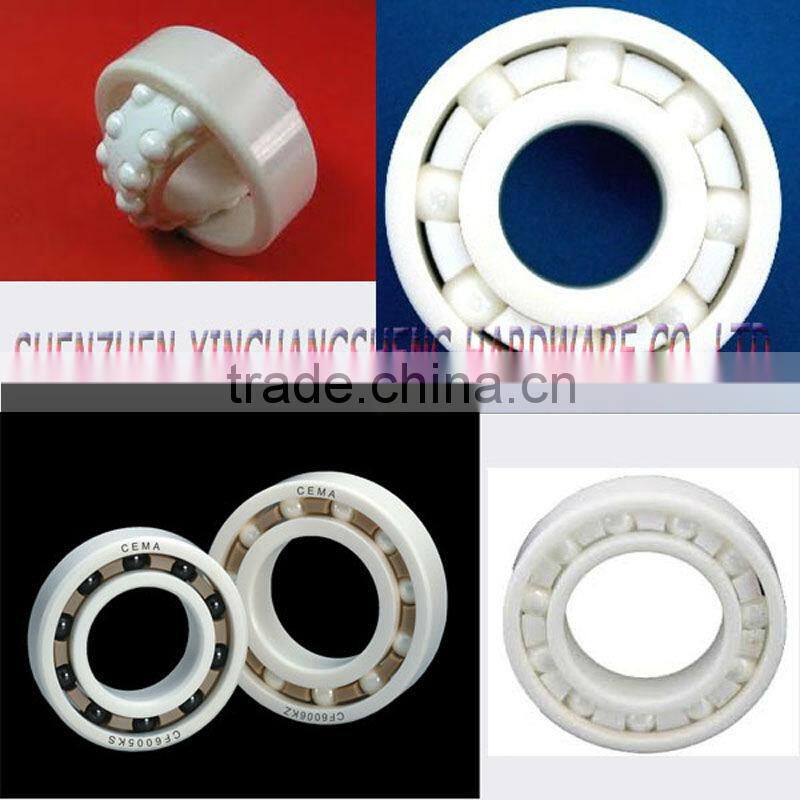

6902 Ceramic bearing Specifications
We accept customization , just tell me what's material and package you want. Huge stocks and sample are available for you. If you are interested in our products , welcome to contact us!
- Size: 15x28x7 mm, 6902 Ceramic bearing
- Structure : deep groove ball bearing
- High accuracy.
- Stock & Sample : Available
- ISO9001:2000 Quality.
- OEM and ODM service
- Favorable price.
- Low friction.
- Port: Shenzhen, China
- Condition : New and Original
- About us: Manufacture
- Supply Ability: 1500000 Piece/Pieces per Month
Quality Control:
Our company inspecter will check the products one by one before we sent it out, and we can also follow customers' special requests to control the quality. We have got little feedback of quality issue from customers these years. So please rest assure.
Precision rating: ABEC1,ABEC3,ABEC5,ABEC7,ABEC9,P0,P6,P5,P4,P2
Packaging Details:
Tubes and cartons, The packaging of inner box, anti-tarnish paper & outer carton. We can provide other packaging materials according to customers' requirment.
Payment terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal.
Delivery time:
5-20days for standard,30days for non-standard.
Applications:
Ball bearings are manufactured to a very high precision level in high volume quantities. Ball bearings are used primarily to support rotating shafts in mechanical equipment. They can be found in everything from personal computers to passenger cars. They are of simple design and can be precision made in mass production quantities. They can support heavy loads over a wide speed range and do it virtually friction free. They come in many different sizes and shapes, are relatively inexpensive, and require little or no maintenance. They have predictable design lives and operating characteristics and are truly a valuable asset to the rotating equipment industry of today.
- riction coefficient, low energy consumption, high mechanical efficiency;
- Dimension has been standardized, interchangeable, installation, removal and maintenance of a repair is very convenient;
- axially compact axial dimension of the machine greatly reduced;
- igh precision, wear, long life, and can guarantee a longer period of time a holding shaft mounting accuracy;
- with self-aligning bearing characteristics, there is a slight deflection or when the spindle engaging member with a different mind still work;
- suitable for specialized mass production, quality, reliability, producing a high efficiency, low cost;
Shenzhen Xinchangsheng hardware CO,Ltd, was founded in 1995. We specialize in producing all kinds of bearings for 18 years. 65% of bearings export to Europe, North America, South America, Southeast Asia, South Asia, Middle east and other countries and regions.We accept customization , just tell me what's material and package you want. Huge stocks and sample are available for you. If you are interested in our products , welcome to contact us!
6900 Series | |||||||||
| N0. | Bore | O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
| mm | mm | mm | mm | Dynamic | Static | Grease | Oil | Kg/pcs | |
| Cr | Cor | r/min | r/min | ||||||
| 693 | 3 | 8 | 3 | 0.15 | 0.56 | 0.18 | 44000 | 52000 | 0.0006 |
| 694 | 4 | 11 | 4 | 0.15 | 0.715 | 0.276 | 38000 | 47000 | 0.0018 |
| 695 | 5 | 13 | 4 | 0.2 | 1.08 | 0.43 | 34000 | 43000 | 0.0024 |
| 696 | 6 | 15 | 5 | 0.2 | 1.35 | 0.53 | 32000 | 40000 | 0.0038 |
| 697 | 7 | 17 | 5 | 0.3 | 1.61 | 0.715 | 30000 | 38000 | 0.0052 |
| 698 | 8 | 19 | 6 | 0.3 | 1.99 | 0.865 | 28000 | 36000 | 0.0073 |
| 690 | 9 | 20 | 6 | 0.3 | 2.48 | 1.09 | 27000 | 34000 | 0.0082 |
| 6900 | 10 | 22 | 6 | 0.3 | 2.7 | 1.27 | 25000 | 32000 | 0.009 |
| 6901 | 12 | 24 | 6 | 0.3 | 2.89 | 1.46 | 20000 | 28000 | 0.011 |
| 6902 | 15 | 28 | 7 | 0.3 | 3.65 | 2 | 19000 | 26000 | 0.016 |
| 6903 | 17 | 30 | 7 | 0.3 | 4.65 | 2.58 | 18000 | 24000 | 0.018 |
| 6904 | 20 | 37 | 9 | 0.3 | 6.4 | 3.7 | 17000 | 22000 | 0.036 |
| 6905 | 25 | 42 | 9 | 0.3 | 7.05 | 4.55 | 14000 | 18000 | 0.042 |
| 6906 | 30 | 47 | 9 | 0.3 | 7.25 | 5 | 12000 | 16000 | 0.048 |
| 6907 | 35 | 55 | 10 | 0.3 | 9.55 | 6.85 | 10000 | 14000 | 0.074 |
We accept customization, I will go through all the questions with you!
