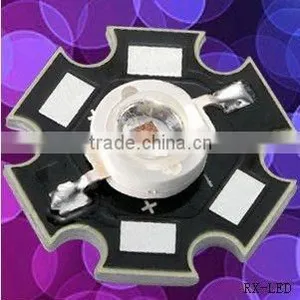

for led grow lighting 3W red 660nm high power led with PCB

FOB Price

USD $0.16 - $0.38 / Piece

100 Pieces(Min.Order)

Supply Ability 500000 Piece / Pieces per Month
Port Shenzhen
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	Green Lantern	Model Number:	GL-LED-COB-3W
Type:	LED	Package Type:	Surface Mount	Max. Forward Voltage:	3.4V
Max. Reverse Voltage:	5V	Max. Forward Current:	20mA	Max. Reverse Current:	5 uA

Product Description

for led grow lighting 3W red 660nm high power led with PCB

Specification :

3W high power LED chip 660nm for led growing light

Electrical and optical characteristics (Ta = 25℃)

Parameter	Symbol	Test Condition	Value			Unit
Parameter	Symbol	Test Condition	Min.	Typ.	Max.	Unit
Forward Voltage	VF	IF = 700mA	----	2.2	2.8	V
Luminous Flux	Φv	IF = 700mA	25	35	----	lm
Viewing Angle	2θ1/2	IF = 700mA	----	120	----	Deg.
Dominate Wavelength	λd	IF = 700mA	----	660	----	nm

3W high power LED chip 660nm for led growing light

Parameter	Symbol	Test Condition	Value		Unit
Parameter	Symbol	Test Condition	Min.	Max.	Unit
DC Forward Current	IF	----	----	700	mA
Peak Pulse Current	Ipeak	Duty=0.1,1kHz	----	1000	mA
Power Dissipation	Pd	----	----	2.5	W
LED Junction Temperature	Tj	----	----	120	℃
Operating Temperature	Topr	----	-25	+100	℃
Storage Temperature	Tstr	----	-40	+120	℃
ESD Sensitivity	---	HBM	8000	----	V
Soldering Temperature	---	----	260℃ for 5 Seconds max

1-5W high power led list

Color	Wavelength	Lumens	Forward Voltage	Forward current	Angle
1W white	2800-6500K	120-130LM	110-120V	10mA	140
2W white	2800-6500K	200-240LM	200-240V	10mA	140
1W pink	2000-2200K	40-50LM	3.0-3.6V	350mA	140
1W pink	2000-2200K	50-60LM	3.0-3.6V	350mA	140
3W pink	2000-2200K	120-140LM	3.2-3.8V	700mA	140
1W white	2700-8000K	90-110LM	3.0-3.6V	350mA	140
1W white	2700-8000K	100-110LM	3.0-3.6V	350mA	140
3W white	2700-8000K	200-240LM	3.0-3.6V	700mA	140
5W white	2700-8000K	400-450LM	6.5-7.5V	700mA	140
1W UV	365-370nm	10-30mW	3.0-3.6V	350mA	140
1W UV	370-375nm	20-40mW	3.0-3.6V	350mA	140
1W UV	375-380nm	30-50mW	3.0-3.6V	350mA	140
1W UV	380-385nm	40-60mW	3.0-3.6V	350mA	140
1W UV	385-390nm	50-70mW	3.0-3.6V	350mA	140
1W UV	390-395nm	60-90mW	3.0-3.6V	350mA	140
3W UV	390-395nm	200-300mW	3.2-3.8V	700mA	140
1W UV	395-400nm	70-90mW	3.0-3.6V	350mA	140
3W UV	395-400nm	300-400mW	3.2-3.8V	700mA	140
1W UV	400-410nm	5-10LM	3.0-3.6V	350mA	140
3W UV	400-410nm	10-18LM	3.2-3.8V	700mA	140
1W UV	410-420nm	8-16LM	3.0-3.6V	350mA	140
3W UV	410-420nm	15-25LM	3.2-3.8V	700mA	140
1W UV	420-430nm	6-12LM	3.0-3.6V	350mA	140
3W UV	420-430nm	12-24LM	3.2-3.8V	700mA	140
1W UV	430-440nm	6-10LM	3.0-3.6V	350mA	140
1W UV	430nm	20-30LM	3.0-3.6V	350mA	140
1W UV	430nm	30-40LM	3.0-3.6V	350mA	140
1W UV	430nm	40-50LM	3.0-3.6V	350mA	140
3W UV	430nm	80-90LM	3.2-3.8V	700mA	140

Color	Wavelength	Lumens	Forward Voltage	Forward current	Angle
1W blue	440-450nm	8-12LM	3.0-3.6V	350mA	140
3W blue	440-450nm	20-30LM	3.2-3.8V	700mA	140
5W blue	440-450nm	30-40LM	6.5-7.5V	700mA	140
1W blue	450-460nm	10-15LM	3.0-3.6V	350mA	140
3W blue	450-460nm	20-30LM	3.2-3.8V	700mA	140
5W blue	450-460nm	50-60LM	6.5-7.5V	700mA	140
1W blue	460-470nm	10-20LM	3.0-3.6V	350mA	140
1W blue	460-470nm	20-25LM	3.0-3.6V	350mA	140
3W blue	460-470nm	40-50LM	3.2-3.8V	700mA	140
5W blue	460-470nm	60-80LM	6.5-7.5V	700mA	140
5W blue	460-470nm	60-80LM	3.2-3.8V	1400mA	140
1W blue	495-500nm	55-65LM	3.2-3.8V	350mA	140
1W blue	495-500nm	95-105LM	3.2-3.8V	700mA	140
1W green	515-530nm	50-60LM	3.0-3.6V	350mA	140
1W green	515-530nm	60-70LM	3.0-3.6V	350mA	140
1W green	515-530nm	70-80LM	3.0-3.6V	350mA	140
3W green	515-530nm	100-120LM	3.2-3.8V	700mA	140
3W green	515-530nm	120-160LM	6.5-7.5V	350mA	140
3W green	515-530nm	120-160LM	3.2-3.8V	700mA	140
5W green	515-530nm	200-240LM	6.5-7.5V	700mA	140
5W green	515-530nm	240-260LM	3.2-3.8V	1400mA	140
1W yellow	590-595nm	30-40LM	2.0-2.4V	350mA	140
1W yellow	590-595nm	40-50LM	2.0-2.6V	350mA	140
3W yellow	590-595nm	60-70LM	2.2-2.8V	700mA	140
3W yellow	590-595nm	70-90LM	4.0-4.5V	350mA	140
3W yellow	590-595nm	70-90LM	2.2-2.8V	700mA	140
5W yellow	590-595nm	120-160LM	4.5-5.5V	700mA	140
5W yellow	590-595nm	120-160LM	8-10V	350mA	140

Color	Wavelength	Lumens	Forward Voltage	Forward current	Angle
1W orange	595-605nm	30-40LM	2.0-2.4V	350mA	140
1W orange	595-605nm	40-50LM	2.0-2.4V	350mA	140
3W orange	595-605nm	60-70LM	2.2-2.8V	700mA	140
3W orange	595-605nm	80-100LM	2.2-2.8V	700mA	140
5W orange	595-605nm	120-180LM	4.5-5.5V	700mA	140
1W red	615-630nm	30-40LM	2.0-2.6V	350mA	140
1W red	615-630nm	40-50LM	2.0-2.6V	350mA	140
1W red	615-630nm	50-60LM	2.0-2.6V	350mA	140
3W red	615-630nm	60-80LM	2.2-2.8V	700mA	140
5W red	620-630nm	120-180LM	4.5-5.5V	700mA	140
1W red	660nm	10-20LM	2.0-2.6V	350mA	140
1W red	660nm	15-25LM	2.0-2.6V	350mA	140
3W red	660nm	25-35LM	2.2-2.8V	350mA	140
1W IR 730	730-740nm	60-100mW	1.4-1.8V	350mA	140
1W IR 740	730-740nm	60-100mW	1.4-1.8V	350mA	140
3W IR 730	730-740nm	160-240mW	1.7-2.4V	700mA	140
1W IR 850	850nm	40-80mW	1.4-1.8V	350mA	140
1W IR 850	850nm	120-200mW	1.4-1.8V	350mA	140
3W IR 850	850nm	200-240mW	1.7-2.4V	700mA	140
5W IR 850	850nm	800-1200mW	1.8-2.4V	1000mA	140
1W IR 940	940nm	60-100mW	1.4-1.8V	350mA	140
3W IR 940	940nm	180-260mW	1.7-2.4V	700mA	140
5W IR 940	940nm	400-600mW	1.8-2.4V	1000mA	140

Feature:
1.Long life span.
2.High intensity.
3.Silica package.
4.More energy efficient than incandescent lamps.
5.Low voltage DC operated ,Cool beam, safe to the touch.
6.Fast start ,Superior ESD protection,
7.Environmently friendly, no radiation.
8.RoHS compliant.

Application:

1.Architectural high power lighting.
2.Extensively applied in backlighting, industrial lighting.
3.Emergency & security lighting, advertisement sign lighting.
4.Applicable for automobile and bicycle decoration, border or contour lighting.
5.Widely used forminding industral lighting.
