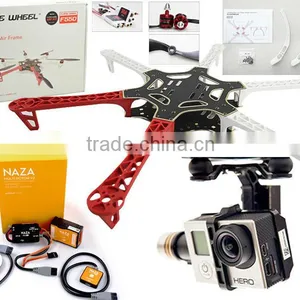

FLAME WHEEL is a multi-rotor designed for all pilots for fun or AP. With DJI WooKong-M or Naza-M autopilot system, it can achieve hovering, cruising, even rolling and other flight elements. It can be applied for entertainment, aerial photography, FPV and other aero-modeling activities.
Ultrastrength Material
Frame Arms adopt PA66+30GF ultrastrength material design, provide better crashworthiness.
Integrated PCB Wiring
Using high strength compound PCB frame board, which makes wiring of ESCs and battery more safe and easier.
Huge Assemble Space
Optimized frame design, which provides abundant assemble space for autopilot systems.
Gorgeous Frame Arms
Provide different color frame arms: red, white, black, which makes your flight more colorful.
Specifications
Frame Weight 478g
Diagonal Wheelbase 550mm
Takeoff Weight 1200g ~ 2400g
Recommended Propeller 10 × 3.8in ; 8 × 4.5in
Recommended Battery 3S~4S LiPo
Recommended Motor 22 × 12mm (Stator size)
Recommended ESC 30A OPTO
The XG8 is the first JR transmitter to come with a 2S Li-Fe battery, being fitted with a 1400 mAh pack. This has greatly reduced the weight of the transmitter, which weighs in at only 770 grams. It also ensures perfect balance. The transmitter has an integrated charging circuit so just plug in the AC adapter supplied and the charging unit will shut down automatically once it detects that the battery is fully charged. No more worries overcharging! The XG8 offers Aeroplane, Helicopter and Glider modes, a 30 model internal memory, stick modes 1 to 4 and an SD card slot for model data sharing, expanded storage and software updates (SD card not supplied).
The XG8 offers Aeroplane, Helicopter and Glider modes, a 30 model internal memory, stick modes 1 to 4 and an SD card slot for model data sharing, expanded storage and software updates (SD card not supplied).
Programming is easy thanks to JR's well-proven, intuitive user interface with data entered using the familiar scroll bar and four push-button entry keys. The programming information is clearly displayed on the large, graphical back lit screen.
XG8 uses the new JR DMSS 2.4 technology which, besides offering a secure, robust radio link to control your models, also offers advanced telemetry functions and JR's new Intelligent Output System. Receiver voltage telemetry is built in as standard and other forthcoming add-on sensors will give you real time feedback of information from your model such as the RPM of an aircraft propeller or helicopter rotor blades, temperature and variometer/altimeter readings.
JR's Intelligent Output System automatically selects control signals that need to be transmitted at exactly the same time and transmits the data for these channels as one complete signal frame. This ensures that there is no time delay when commanding servos used for critical functions such as a CCPM swash plate on a helicopter or when operating a four servo aileron wing.
Other features include side-lever controls on either side of the transmitter, a Touch Select System for switch selection, dual trim options, a user selected menu for frequently used functions, failsafe on all eight channels, user assigned switch function, programmable throttle cut and two independent programmable timers.
Helicopter Functions
Six flight modes with programmable delay.
Adjustable electronic E-ring system prevents overdriving of the cyclic servos.
Five swash plate types.
Five-point graphical tail curve.
Five-point graphical throttle and pitch curves with safety system.
Advanced trim input system; allows in-flight adjustment of gyro gain and governor.
Throttle and Pitch Curve settings can be copied between flight modes.
JR Easy Swash Plate Correction' system.
Aeroplane Functions
Three flight modes with programmable delay.
Three-position flap switch with flap delay and elevator compensation programming.
Various wing types, including:
- Normal: Dual servo selection on AIL/ELEV/RUDD/FLAP
- Flaperon: Dual servo selection on ELEV/RUDD
- Delta: Dual servo selection on RUDD/FLAP
- Four Aileron: Dual servo selection on ELEV or RUDD
V-Tail setting.
Advanced Trim Input System: allows in-flight mixing adjustment for manoeuvres such as knife-edge flight or landing with flap.
Glider Functions
Five flight modes with programmable delay.
Advanced programmable brake system with elevator compensation programming.
Various wing types, including:
- Flaperon: Dual servo selection on ELEV/FLAP/SPOI
V-Tail setting.
Advanced Trim Input System: allows in-flight mixing adjustment.
ZENMUSE H3-3D GIMBAL
The Zenmuse H3-3D Gimbal is a motorized 3-axis gimbal that will allow you to mount a GoPro HERO3 or HERO3+ action camera. It helps isolate the GoPro from vibration generated by the helicopter and also features the ability to tilt the camera from -130 to +50°. An add-on rocker that attaches to the back of the transmitter allows you to operate the tilting mechanism. Note that a pre-HERO3 GoPro camera cannot be attached to this gimbal, and that to send video wirelessly a separate, 5.8GHz video transmission system will be required.
The Zenmuse H3-3D 3-Axis Gimbal offers excellent stabilization features for aerial hobbyist and professional aerial photographers. Powered by built-in IMU (Inertial Measurement Unit) and special servo module, this gimbal provide unique stable quality visual experience for the users
The Zenmuse H3-3D 3-axis Gimbal is a motorized stabilizer for mounting a GoPro HERO3 or HERO3+ action camera. It helps isolate the camera from vibration incurred by the rotors to give you the smoothest possible aerial video. In addition, it allows the camera to tilt between -130 to +50° with a precision of ±0.08°. Tilting is controlled via an attachment that goes on the back of the transmitter.
Included with this "ready-to-fly" version of the Phantom 2 Quadcopter is a 6-channel, 2.4GHz transmitter (TX) that comes pre-bound with the aircraft. It features an operational range extending up to 3,280' line-of-sight, depending on conditions. The controls are configured in "Mode 2", which is the most popular mode among RC pilots in the U.S.
Because of the complexity associated with multi-rotor aircraft, the Naza-M V2 flight control system in the Phantom 2 relies on a GPS-based navigation as well as gimbal, compass, and other data to maintain flight stability and provide other assisted-flying features. While fully manual operation is possible, and can be unlocked using the Naza Assistant Software, most users, especially videographers hoping to get the smoothest possible shoots, will opt for GPS or GPS Attitude flight mode. In GPS Mode the Naza system keeps the Quadcopter stable and right-side-up when moving, and holds it in a fixed horizontal and vertical position whenever you release the sticks.
New for this model, the Phantom 2 features a 5200 mAh battery system that has been simplified from the previous Phantom version. The battery now slots in without having to connect any DC leads, and features four LED indicators visible on the outside, tail-end of the aircraft helping you keep track of battery levels in flight. Charging is also simplified, with all of the charging circuitry now built into the battery itself, there is no more separate balance lead to worry about plugging in. Because of this design, the Phantom 2 battery cannot be charged with all-purpose balance chargers, only chargers made specifically for it.
For a complete first-person view (FPV) experience you will probably want to add a wireless video transmitter. Because the Wi-Fi system on the GoPro operates on the same 2.4GHz band as the Phantom 2's transmitter it may cause interference with aircraft operation and should never be used. Instead an option such as DJI's own AVL58 5.8 GHz Video Link Kit, or a third-party solution that can be set to 5 GHz or higher, may be used for live video transmission.
GOPRO HERO3+ BLACK CAMERA
Features video resolutions up to 4K, 12MP photos up to 30 frames per second, built-in Wi-Fi, SuperView™ and Auto Low Light modes. Waterproof to 131’/40m.
AUDIO
• Mono, 48kHz, AAC compression with AGC (automatic gain control)
• Increased audio range by approx. 10dB compared to HERO3: Black Edition
• Handles approx. 2x greater volume without distortion compared to HERO3: Black Edition
• Supports 3.5mm stereo microphone via optional adapter (sold separately)
PHOTO + VIDEO PLAYBACK
• HDTV: Micro HDMI to HDMI cable required (sold separately)
• TV: Mini USB to composite cable required (sold separately)
• LCD Touch BacPac™ (sold separately): Attach to your camera for preview and play back of videos and photos
• GoPro App (free): Use your smartphone or tablet to preview and play back videos and photos
• Computer: Connect via mini USB to USB cable (included), or copy files from the microSD card to your computer
MINIMUM SYSTEM REQUIREMENTS FOR BEST PLAYBACK ON MAC® AND WINDOWS® PCS:
• Mac OS® X 10.5 and later / Microsoft Windows® Vista, 7 and later
• 2ND generation Intel® Core™-based processor or AMD equivalent (3RD generation Intel Core-i7 recommended)
• 2GB RAM (4GB or greater recommended)
• Graphics processor comparable to an Intel HD Graphics 3000, nVidia GeForce 600 Series, AMD Radeon HD6000 Series or better
F550 LANDING GEAR
A durable and useful set of landing gear that mounts easily to the underside of the DJI 550 bottom plate. Legs and crossmembers are 1/16" FR4 fiberglas epoxy; top connecting straps from 3/32" FR4. New photos will soon reveal a notch in the landing gear for more secure placement of batteries or accessories, similar to what we have on our AV130 Landing Gear. Crossmembers are machined with interlocking tabs that accept a M3 nut and screw. 12 inch Velcro cinching straps are included. They pass through slots in the crossmembers so they do not fall off when you loosen them. Skids are 12 inches long, spaced 12 inches apart, and are made of thick walled carbon tubes with rubber grommets and vinyl end caps. Easy to assemble. Includes two 12 inch Velcro cinching straps for batteries or accessories. Materials manufactured and machined in the USA. 170 grams. Also available as a carbon fiber version, which is 130 grams.
DJI NAZA M - V2
Naza is a light weight multi-axis control platform, specially designed for multi-rotor model hobbyists. Different from WooKong-M for heavy payloads and aero photography, Naza not only inherits the outstanding flight stability of DJI products, but also provides excellent maneuverability, which gives hobbyists a wonderful flight experience.
Basic Performance
Supported Multi-Rotor Quad-rotor I4, X4 Hex-rotor I6, X6, IY6, Y6 Octo-rotor I8,V8,X8
Supported ESC Output 400Hz refresh frequency
Recommended Transmitter PCM or 2.4GHz with minimum 4 channels
Working Voltage Range MC:4.8V~5.5V VU Input: 7.4V ~ 26.0 V (recommend 2S ~ 6S LiPo) Output(V-SEN port red wire): 3A@5V (burst current:7.5A)
Power Consumption MAX: 1.5W(0.3A@5V) Normal:0.6W(0.12A@5V)
Operating Temperature -10°C ~ 50°C
Assistant Software System Requirement Windows XP sp3 / Windows 7 / Windows 8
Flight Performance
Hovering Accuracy(GPS Mode) Vertical:±0.8m Horizontal:±2.5m
Max Yaw Angular Velocity 200°/s
Max Tilt Angle 35°
Ascent / Descent 6m/s,4.5m/s
Hardware
Weight
MC:27g
PMU:28g
GPS:27g
LED:13g
Dimensions
MC: 45.5mm x 32.5mm x 18.5mm
PMU: 39.5mm x 27.5mm x 10.0mm
GPS & Compass 46mm(diameter)x10mm
LED: 25mm x 25mm x 7.0mm
Built-In Functions
Multiple Autopilot Control Mode
Enhanced Fail-safe
Low Voltage Protection
S-Bus Receiver Support
PPM Receiver Support
Independent PMU Module
iMAX B6-AC CHARGER
This item is for a rapid charger/discharger for all kind of battery of RC hobby, with built in balancer for lipo battery. Battery that can be charged by this charger,Lipo / Li-ion / LiFe / NiMh / NiCad / Pb / Lead Acid Feature:
1. High-power and high-performance circuit
2. Microprocessor controlled
3. Maximen safety: Delta-peak sensitivity, Capacity limit, processing time limit, tempreture limit, input power monitor
4. Monitoring the voltage of individual cell
5. Can charge Li-ion / LiPo / LiFe 1-6 cells, and Ni-Cd / NiMH 1 -15 cells
6. Dual Power, built-in AC adapter
7. UndefinedLarge range of charge currents
8. Store function, allows safe storage current, and data storage (Store up to 5 packs in memory)
9. Battery break in and cycling
10. Built-in temperature sensor
11. Separate voltage detector for balance charge mode
5200mAh 25C LIPO BATTERY
Features:
1. Adopted the world's key material-LiCo02.
2. Used fully automatic lamination machine with Nano Tech.
3. Laminated structure, Nano Coat Technology. Advanced Nano ultrasonic welding electrode.
4. Industry most stringent single cell capacity, voltage, resistance and discharge curve (competition level) matching process.
5. Safety performance is strong and self-discharge is extremely low.
6. No memory effect, high discharge and charge current.
7. High energy density with quite low weight and IR.
8. Good storage performance, Green & Environmental protection without any pollution.
