Stretch Vacuum Packaging Machine
thermoformer machine is able to perform tray thermoforming,material or product filling, vacuum and gas flushing thermo-sealing, cross and vertical cut operations continuously.
Features:
• Stainless steel construction make the machine more durable and more smooth.
• New waste film collector.
• Touch screen control panel.
• Easy accessiblity of machine frame.
• Flexible in use of material, mold and cutting system.
• Patented cutting knife.
• Modular design.
• Friendly to most of additional mechanism,such as filling system,conveyor system,printing system...
with options below:
- Filler
- Weigher
- Vibrator
- Recycle Water Cooling System
- Photoelectric Sensor
- Printer
- Additional Vacuum Pump
- Power Voltage customized
• Multiple choices for thermoform films:
- Flexible and rigid containers
- Sealable monofilms, multilayer films, foamed films,
laminates with an aluminium layer, paper and Tyvek webs
Technical Data:
| Model | HM-320 | HM-420 | HM-520 |
| Normal Film Width (Special Size To Order) | 320mm | 420mm | 520mm |
| Thermoforming Area | Max. 600mm*800mm | ||
| Depth Range | Depending On Thermoforming Area, Max.150mm | ||
| Loading Length | Standard 1 Meter,Additional(Optional) | ||
| Electrical Specifications | 3 Phases,220V/380V,50Hz/60Hz | ||
| Electrical Power | 10-20Kw | ||
| Pneumatic Consumption | 800-1000L/min,6 bars | ||

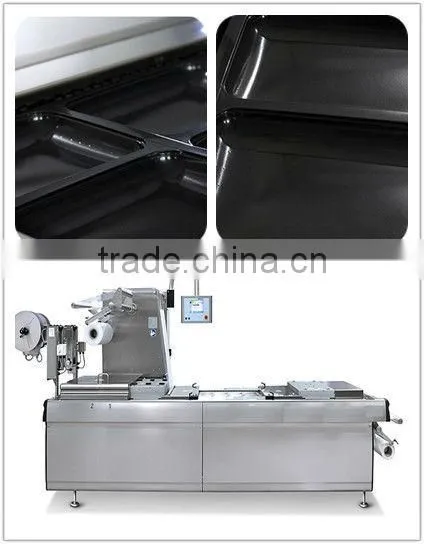

Picture show:
