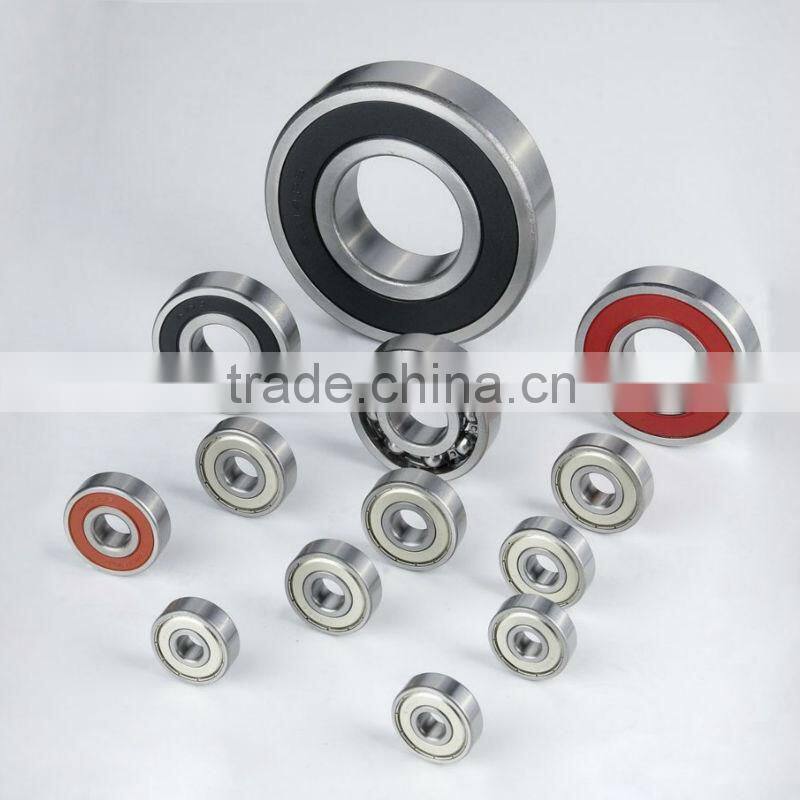

6200 Bearing

6200 Bearing thumbnail-1
6200 Bearing photo-1
US$ 0.1 - 99.9 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
neutral
Bore Size:
0.6, 140
Outside Diameter:
2.5, 210
Contact Supplier Request Quote Chat Now
Shenzhen Xinchangsheng Hardware Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name neutral
Bore Size 0.6, 140
Outside Diameter 2.5, 210
Model Number 6200 series bearing
Precision Rating ABEC-1,ABEC-1.ABEC-3.ABEC-5.ABEC-7.ABEC-9.
Seals Type Z,ZZ,RS,2RS
Number of Row Single Row
Place of Origin Guangdong, China

Specifications

1.6000 6100 6200 6300 6400 Series Deep Groove Ball Bearing
2.standard and nonstandard bearing
3.18 years bearing manufacture.

6200  bearing Specifications

1.high temperature 500
2.high speed 10000r/min
3. ISO9001:2000 Quality.

4. OEM and ODM service.

5. Seal type: Z,ZZ,RS,2RS.

6. Low price high quality.



Model Number 6000 6100 6200 6300 6400 Series Deep Groove Ball Bearing
Type Ball Bearing
Specification 0.6--140mm
Cage and material TH glass fiber reinforced phenolic resin/ Pressed Steel & Brass,Rubber seal,metal seal.
Row number Single row
Bearing material high temperature bearing steel,Chrome steel,Stainless steel
Raceway Deep Groove Raceway

6000 Series Miniature Deep Groove Ball Bearing

N0.

Bore

 O.D Width Chamfer Load Rating Maximuum Seed Weight

mm

 mm mm mm

Dynamic

Cr

Static

Cor

Grease

r/min

Oil

r/min

 Kg/pcs
604 4 12 4 0.2 0.97 0.36 36000 44000 0.0021
605 5 14 5 0.2 1.33 0.505 32000 40000 0.0035
606 6 17 6 0.3 2.19 0.865 30000 38000 0.006
607 7 19 6 0.3 2.24 0.91 28000 36000 0.008
608 8 22 7 0.3 3.35 1.4 26000 34000 0.012
609 9 24 7 0.3 3.4 1.45 24000 32000 0.014
6000 10 26 8 0.3 4.55 1.96 22000 30000 0.019
6001 12 28 8 0.3 5.1 2.39 19000 26000 0.021
6002 15 32 9 0.3 5.6 2.83 18000 24000 0.03
6003 17 35 10 0.3 6.8 3.35 17000 22000 0.039
6004 20 42 12 0.6 9.4 5.05 15000 19000 0.069
6005 25 47 12 0.6 10.1 5.85 14000 18000 0.08
6006 30 55 13 0.6 13.2 8.3 12000 15000 0.116
6007 35 62 14 1.0 16 10.3 10000 14000 0.115
6008 40 68 15 1.0 16.8 11.5 8000 11000 0.19

6200 Series Deep Groove Ball Bearing

N0.

Bore

 O.D Width Chamfer Load Rating Maximuum Seed Weight

mm

 mm mm mm

Dynamic

Cr

Static

Cor

Grease

r/min

Oil

r/min

 Kg/pcs
624 4  13  5  0.2  1.15  0.4  36000  45000  0.0032
625 5  16  5  0.3  1.76 0.680 32000  40000  0.0050
626  6  19  6  0.3 2.34  0.885  28000  36000  0.0080
627  7  22  7  0.3 3.35  1.400  26000  34000  0.0130
628  8  24  8  0.3 4.00  1.590  24000  32000  0.0170
629  9  26 8  0.3 4.55  1.960  22000  30000  0.0190
6200  10  30 9  0.6 5.10  2.390  19000  26000  0.0300
6201  12  32 10  0.6 6.10  2.750  18000  24000  0.0360
6202  15  35 11  0.6 7.75  3.600  17000  22000  0.0460
6203  17  40  12  0.6 9.60  4.600  16000  20000  0.0650
6204  20  47 14  1.0 12.80  6.650  14000  18000  0.1070
6205  25  52  15  1.0 14.00  7.850  12000  16000  0.1250
6206 30  62  16  1.0 19.50  11.300  10000  13000  0.2010

6300 Series Deep Groove Ball Bearing

N0.


Bore

 O.D Width Chamfer Load Rating Maximuum Seed Weight

mm

 mm mm mm

Dynamic

Cr

Static

Cor

Grease

r/min

Oil

r/min

 Kg/pcs
6300

10

 35 11 0.6

8.2

3.5

18000

24000

 0.053
6301 12 37 12 1.0 9.7 4.2 17000 22000 0.06
6302 15 42 13 1.0 11.4 5.45 16000 20000 0.082
6303 17  47  14  1.0  13.5  6.55  15000  19000  0.115
6304  20  52 15  1.1  15.9  7.9  14000  17000  0.144

6800 Series Miniature Deep Groove Ball Bearing

N0.



Bore

 O.D Width Chamfer Load Rating Maximuum Seed Weight

mm

 mm mm mm

Dynamic

Cr

Static

Cor

Grease

r/min

Oil

r/min

 Kg/pcs
685

5

 11 3 0.15

0.715

0.282

35000

45000

 0.0011
686 6 13 3.5 0.15 1.08 0.44 33000 42000 0.0019
687 7 14 3.5 0.15 1.17 0.505 31000 40000 0.0021
688 8 16 4 0.2 1.61 0.715 29000 38000 0.0031
689 9 17 4 0.2 1.72 0.82 28000 36000 0.0032
6800 10 19 5 0.3 1.83 0.925 26000 34000 0.005
6801 12 21 5 0.3 1.92 1.04 22000 30000 0.006
6802 15 24 5 0.3 2.08 1.26 20000 28000 0.007
6803 17 26 5 0.3 2.23 1.46 19000 26000 0.008
6804 20 32 7 0.3 4 2.47 17000 22000 0.019
6805 25 37 7 0.3 4.3 2.95 15000 19000 0.022
6806 30 42 7 0.3 4.7 3.65 13000 17000 0.026
6807 35 47 7 0.3 4.9 4.05  11000  15000  0.029

6900 Series Deep Groove Ball Bearing

N0.




Bore

 O.D Width Chamfer Load Rating Maximuum Seed Weight

mm

 mm mm mm

Dynamic

Cr

Static

Cor

Grease

r/min

Oil

r/min

 Kg/pcs
693

3

 8 3 0.15

0.56

0.18

44000

52000

 0.0006
694 4 11 4 0.15 0.715 0.276 38000 47000 0.0018
695 5 13 4 0.2 1.08 0.43 34000 43000 0.0024
696 6 15 5 0.2 1.35 0.53 32000 40000 0.0038
697 7 17 5 0.3 1.61 0.715 30000 38000 0.0052
698 8 19 6 0.3 1.99 0.865 28000 36000 0.0073
690 9 20 6 0.3 2.48 1.09 27000 34000 0.0082
6900 10 22 6 0.3 2.7 1.27 25000 32000 0.009
6901 12 24 6 0.3 2.89 1.46 20000 28000 0.011
6902 15 28 7 0.3 3.65 2 19000 26000 0.016
6903 17 30 7 0.3 4.65 2.58 18000 24000 0.018
6904 20 37 9 0.3 6.4 3.7 17000 22000 0.036
6905 25 42 9 0.3 7.05 4.55 14000 18000 0.042
6906 30 47 9 0.3 7.25 5 12000 16000 0.048
6907 35 55 10 0.3 9.55 6.85 10000 14000 0.074





Deep groove ball bearings features :

Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.The bearing ring grooves are circular arcs made slightly larger than the radius of the ball.

The balls make point contact with the raceways (elliptical contact when loaded). The inner ring shoulders are of equal height (as the outer ring shoulders). Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. Standard ball retainers (cages) are made from pressed steel. Machined cages are used in bearing operation at very high speed or for large diameter bearings.

Deep Groove ball bearings with seals or shields are standardized. They contain proper amount of grease in advance.

deep groove ball bearings types:1, single row deep groove ball bearings
2, single row deep groove ball bearings with dust cover
3, with a dust cover, a ring of single row deep groove ball bearings
4, the outer ring on the stopper groove and snap ring of single row deep groove ball bearings
5, deep groove ball bearings ball gap
6, double row deep groove ball bearings
In accordance with the sizes of deep groove ball bearings can be divided into:
(1) miniature bearings ---- nominal diameter size range of 26mm bearings;
(2) small bearing ---- nominal diameter size range of 28-55mm bearings;
(3) small and medium-sized bearings ---- nominal diameter size range of 60-115mm bearings;
(4) large bearing ---- nominal diameter size range of 120-190mm bearings
(5) large bearing ---- nominal diameter size range of 200-430mm bearings;
(6) ---- large bearing diameter size range of 440mm or more bearings.





Deep groove ball bearing Applications:



Automobile,Motorbike,Electric tools ,Small appliances ,Textile machine,Printing machine, Fitness sports equipment,Medical device,Printer,Automatictellermachine,Modelairplane etc.





Precision rating: ABEC1,ABEC3,ABEC5,ABEC7,ABEC9,P0,P6,P5,P4,P2





Packing details:



plastic tubes and cartons.  We can provide other packing materials according to customers' requirment.
