single Chamber vacuum packing machine
I. Description
A. Instruction:
At your request of equipment, we suggest the following full set of machines: Automatic Lifting Machine
1 unit(DT5) + Electronic weighing machine 1unit(CJS2000)+ Automatic vertical bag packaging machine 1 unit(VFS5000D)+ ZB500A1 unit Automatic vacuum machine + Finish product conveyor 1 unit(SS2000)in total full set.
B. Technical Parameter:
| Bag type | Vacuum bag / Vacuum bag |
| Weighing type | Spiral weigher, Multihead weigher,Volume weigher (Dependent on material) |
| Packing speed of vacuum bag | 5-20 bags /min (Dependent on material and weighting range) |
| Max. Bag width | 200mm |
| Max. Bag height | 280mm |
| Max. Packing film width | 420mm |
| Packing film thickness | 0.04-0.12mm (40-120mic.) |
| Packing film roll outer diameter | Φ400mm |
| Packing film roll inner diameter | Φ75mm |
| Power supply | AC380V/50Hz, 3phase (optional) |
| Power consumption of packing machine | 3kW |
| Compressed air requirement of packing machine | 0.6Mpa, 0.36m3/min |
| Dimension of packing machine | 1400 x 1050 x 1500mm |
| Weight of packing machine | 800kg |
| Power consumption of vacuum system | 5.5kW |
| Compressed air requirement of vacuum system | 0.65Mpa, 0.65-1.2 m3/min |
| Dimension of vacuum system | 3125 x 660 x 1050mm |
| Weight of vacuum system | 600kg |
C. Instruction:
Used to complete automatic weighting packing of powder products.It has accurate measurement,
Exquisite packaging, high degree of automation, High degree of health. Machine can automatic
measurement, automatic bag making , and also can print Date of production. Automatic filling,
automatic sealing, automatic cut off ,
and Automatic delivery of finished products.
D. working process:
powdery material:Lifting Powder →Feeding Powder, measure(CJS2000electronic scale) → Bag Making ,Automatic filling material→ Automatic cut off(and print date)→ Automatic Vacuum Packing Machine to vacuumize and Sealing →Conveyor
E. Equipment Description:(Good grade)
Electrical control part:
1) Controller and the instrument accord with CE Certificate.
2) Voltage 380AC,3 phase,50Hz .
3) Equipment have necessary wiring and the interlocking system
4) Control panel with power control
5) Load sensor use Japan or Germany Sensor.
6) Touch screen adopt Taiwan whalen touchscreen
7) PLC us Omron.
8) Japanese panasonic servo motor
9) Use Japan Sunx photoelectric switch
10) Pneumatic components use Japan SMC or YSC

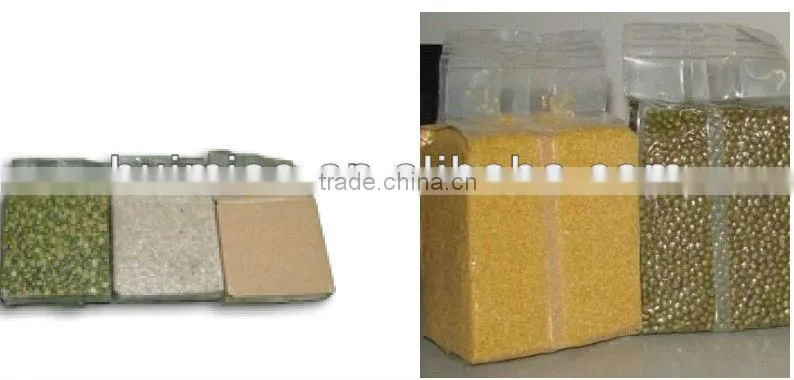

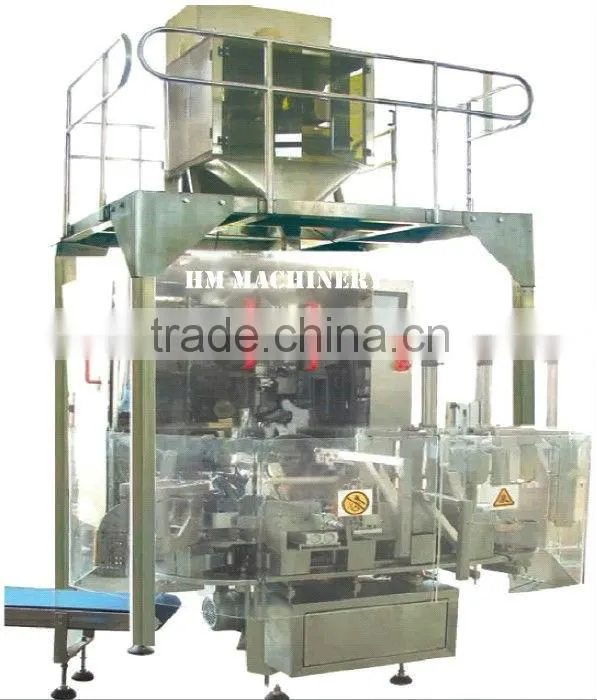

Picture Show:
