Automatic Shrinking Sleeving Machine

Automatic Shrinking Sleeving Machine thumbnail-1
Automatic Shrinking Sleeving Machine photo-1
US$ 1 - 99,999 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Textiles
Packaging Type:
Bottles
Contact Supplier Request Quote Chat Now
Shanghai HM Machine Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Apparel, Beverage, Chemical, Commodity, Food, Textiles
Packaging Type Bottles
Packaging Material Paper, Plastic, Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 380V
Power 1.5kw
Place of Origin Shanghai, China
Brand Name HM Machinery
Model Number HMT
Dimension(L*W*H) 2100L*850W*200H
Weight 400kg
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

Automatic Shrinking  sleeving machine



Instrution:

1) Sealing type: L-sealing by means of L-bar

2) Power supply: 380V/50-60Hz/3phase

3) Packing capacity: 35 packs per minute  (depends on product size and film width)

4) L-bar size: 570x480 mm

5) Max height of sealing frame: 125 mm

6) Film type: center-folded film with 12-80 micron

7) Max film size: width: 520mm (folded), outer diameter: 400mm

8) Conveyor speed: 19 m/min

9) Working height: 780-850 mm

10) Rated power consumption: 1.25 kW

11) Air pressure: ≤0.5MPa (5 bar)

12) Sealing system: permanently heated seal bar with easy-exchangeable sealing blade without odorous

13) Machine material: carbon steel and painted

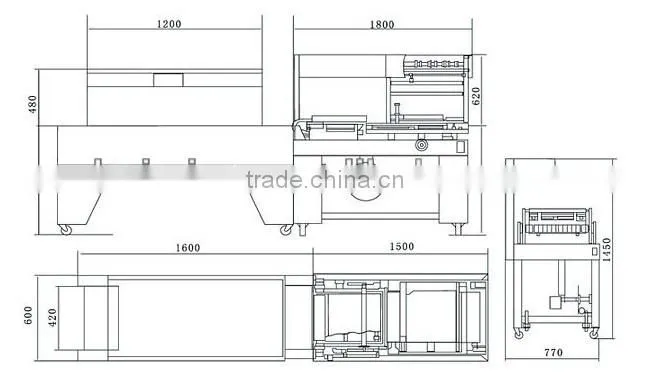

14) Machine dimension: 1600x770x1450mm







Technical parameters:



Input power

1.5KW

Input voltage

380/220VAC

Production Efficiengcy

150bottles/min

Size of Host Machine

2100L*850W*200H

Applicable Diameter of Bottle Body

Φ28mm-Φ125mm

Applicable Length of Label

30mm-250mm

Applicable Thickness of label

0.03mm-0.13mm

Applicable internal diameter of paper tube

5”-10” adjust it at will

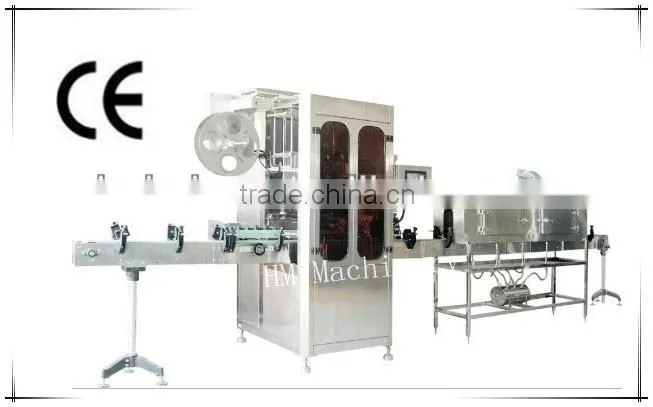

Picture Show:

Automatic Shrinking sleeving machineAutomatic Shrinking sleeving machineAutomatic Shrinking sleeving machine

Automatic Shrinking sleeving machine

Automatic Shrinking sleeving machineAutomatic Shrinking sleeving machine
