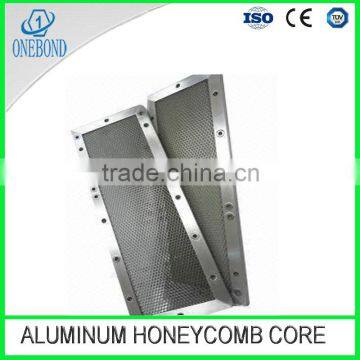

Honeycomb Core With Special Stainless Steel Frame

Honeycomb Core With Special Stainless Steel Frame thumbnail-1
Honeycomb Core With Special Stainless Steel Frame thumbnail-2
Honeycomb Core With Special Stainless Steel Frame thumbnail-3
Honeycomb Core With Special Stainless Steel Frame photo-1
Honeycomb Core With Special Stainless Steel Frame photo-2
Honeycomb Core With Special Stainless Steel Frame photo-3
US$ 6 - 6 MOQ: 1000 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ONEBOND
Usage:
Indoor
Contact Supplier Request Quote Chat Now
Foshan Onebond Building Materials Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port fo China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ONEBOND
Usage Indoor
Function Anti-Static, Antibacterial, Fireproof, Mould-Proof
Surface Treatment Anodized, Printing
Product Description
Product Name
Aluminum honeycomb core
Cell Size(inch)
1/30, 1/25, 1/15, 1/10, 1/8, 1/6, 1/5, 1/4, 1/3, 3/8, 1/2, 3/4, 4/5, 1inch
Aluminum Foil THK(mm)
0.03mm, 0.04mm, 0.05mm, 0.06mm, 0.007mm, 0.08mm
Sheet THK(mm)
4 to 300mm
Size(mm)
Standard size is 1220*2440mm, other size can be customized
Node(mm)
Cell size(mm)
Foil THK(mm)
Max Size(W*L)(mm)
0.6
1/25
0.02
300*500
1
1/16
0.03/0.04
1000*1000
1.5
1/10
0.03/0.04
1200*1500
1.83
1/8
0.04
1600*2000
0.06
1600*1200
2
1/8
0.04
1600*2000
0.06
1600*1600
2.5
1/6
0.04
1600*2200
0.06
1600*2000
3
1/5
0.04
1600*2200
0.06
1600*2000
0.08
1600*2000
0.1
1600*1800
4
1/4
0.04
1600*3100
0.06
1600*2400
0.08
1600*2200
0.1
1600*2000
5
1/3
0.04
1600*4000
0.06
1600*3000
0.08
1600*2200
0.1
1600*2000
6
3/8
0.04
1600*4600
0.06
1600*3200
0.08
1600*2800
7.5
1/2
0.04
1600*6000
0.06
1600*4000
10
3/4
0.04
1600*7500
0.06
1600*5000
12
4/5
0.04
1600*9000
0.06
1600*6000
15
1
0.04
1600*12000
0.06
1600*7500
20
1+3/8
0.04
1600*15000
0.06
1600*10000
30
2
0.04
1600*20000
0.06
1600*15000

Freature:
1. Light weight, High intensity, High rigidity, Steady structure and High wind-resistance performance.
2. Flat and Straight in vision and Diverse in color, Elegant and Bright.
3. Excellent performance in Sound insulation, Heat insulation, Fireproof and quakeproof.
4. Fine decoration effect, Easy and rapid installation.
5. Environmental protection and saving resources.

Quality Index

Density

ALU THK/Node
Mechanical Features under Room Temperature(Mpa)
Flatwise compressive Strength
Vertical Shear Strength
Flatwise Sheaer Strength
27
0.03/5
0.53
0.44
0.24
31
0.04/5
0.66
0.53
0.30
33
0.03/4
0.73
0.58
0.33
39
0.04/4
0.98
0.75
0.43
41
0.05/5
1.07
0.80
0.47
44
0.03/3
1.18
0.89
0.52
49
0.06/5
1.43
1.03
0.60
52
0.04/3
1.60
1.15
0.67
53
0.05/4
1.65
1.18
0.69
Related Products

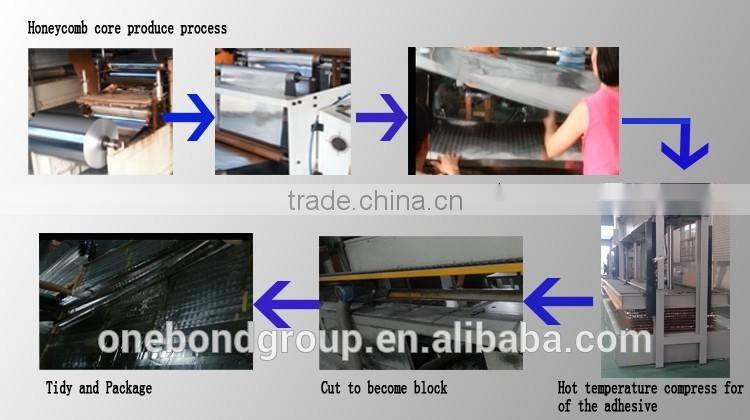

Produce Processing

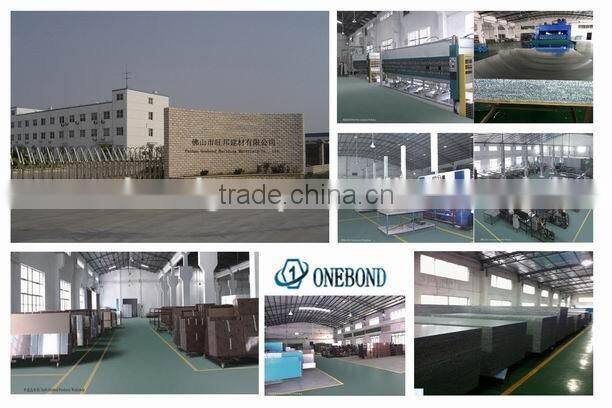

Company Profile

Foshan ONEBOND Building Materials Co.,Ltd, was established in 2006, headquartered in Foshan, Guangdong Province of China. We have company existing staff more than 300 people, has a large-scale professional production equipment more than 60.Annual production capacity: aluminum honeycomb core, corrugated core is more than 450000 square meters, aluminum honeycomb composite panels and other more than 100000 square, aluminum curtain wall veneer more than 30000 square meters.

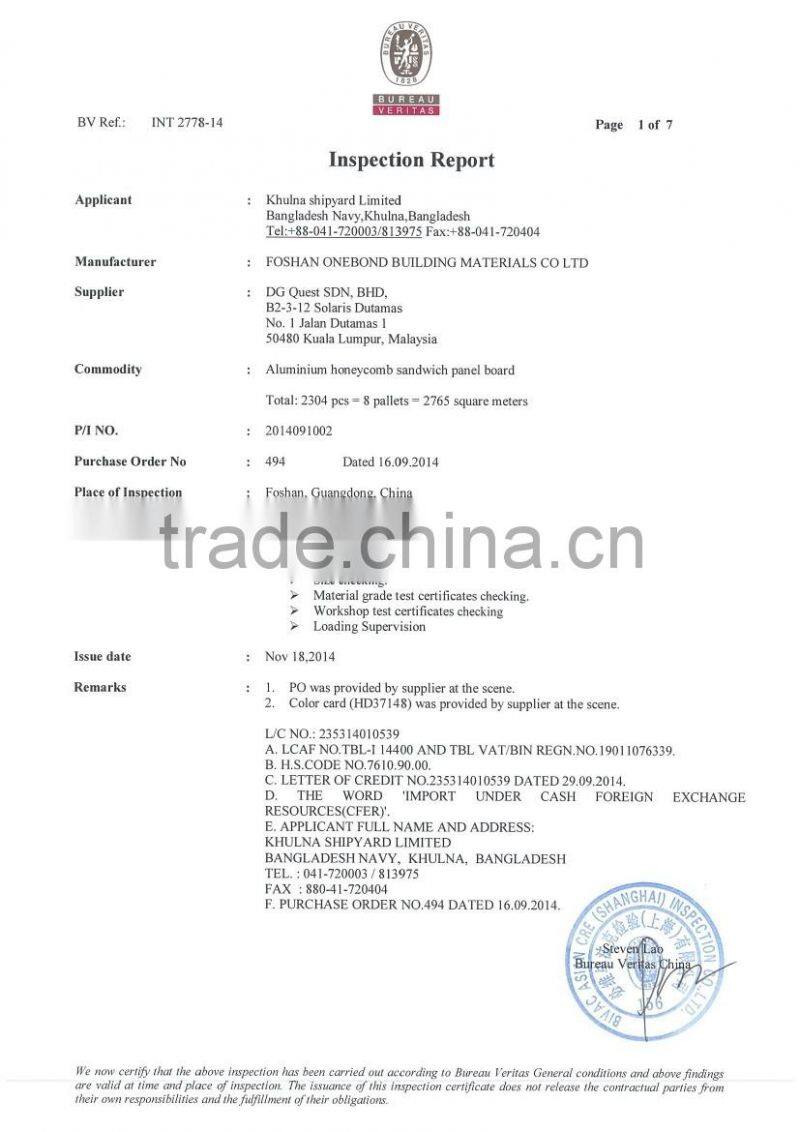

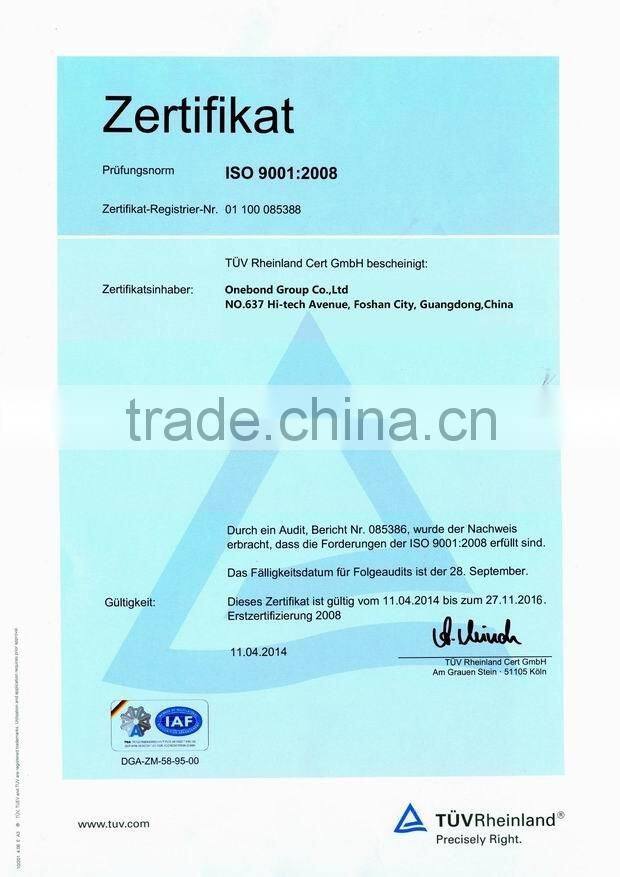

Certifications
Package & Delivery

 Domestic Package.

We usually use paper case package, also can according to clients' reuqirement.

Export Package.

We often use plywood wood box for honeycomb core package, also can according to clients' inquiry.

Loading and Delivery.

3-15days after payments and delivery depend on clients' requirement.
