Specifications
Concrete Pump:1.Output: 7m3/h
2.Max. Aggregate. Size:20mm
3.Hose inner size:64mm
4.Long life use
Different Models Durable Thin Concrete Pump Factory Supply

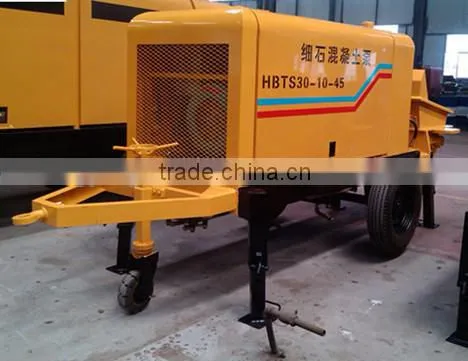

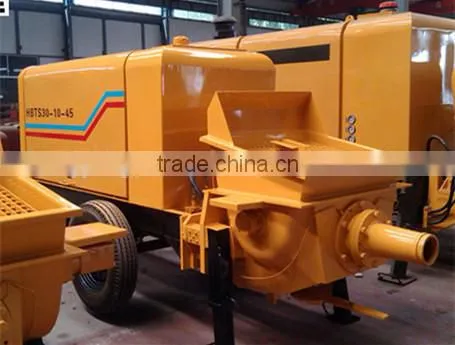

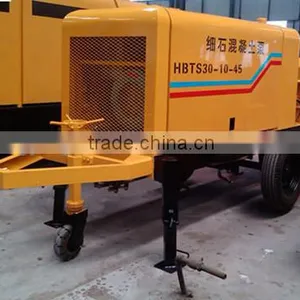

PICTURER OF CONCRTE PUMP:
Technical Parameter of Concrete Pum:
Model |
Unit |
15-22 |
20-30 |
30-45 |
40-55 |
|
Theoretical Concrete Delivery Capacity |
m³/h |
15 |
20 |
30 |
40 |
|
Maximum Theoretical Pumping Pressure |
MPa |
6 |
8 |
10 |
10 |
|
Distributing Valve Type |
|
S-pipe Swing Valve |
||||
Internal Diameter of Delivery Pipe |
mm |
Φ125A/80A |
Φ125A/90A |
Φ125A/100A |
||
Maximum Theoretical Delivery Distance (Horizontal/Vertical) |
m |
350/120 |
350/130 |
500/150 |
500/150 |
|
Concrete Cylinder Diameter/Stroke |
mm |
Φ140/575 |
Φ140/750 |
Φ160/1000 |
Φ160/1000 |
|
Hopper Capacity/Loading height |
m³/h |
0.3 / 900 |
0.4 /1100 |
0.4 /1100 |
||
Maximum Aggregate Size |
mm |
30 |
30 |
30 |
30 |
|
Concrete Slump Range |
mm |
120-230 |
||||
Main Motor Power |
Kw |
22 |
30 |
45 |
55 |
|
Rated Rotational Speed |
r/min |
1480 |
||||
Voltage |
V |
380 |
||||
Oil Tank Capacity |
L |
130 |
130 |
200 |
200 |
|
Cleaning Method |
|
High-pressure washing |
||||
Dimension (length,width,height) |
mm |
2550x1050x1250 |
3850x1050x1250 |
4500x1500×1800 |
4500×1500×1800 |
|
Weight (including oil) |
kg |
1700 |
1900 |
3000 |
3200 |
|
PICTURES OF DIFFERENT PIPES ALONG WITH THE PUMP:
Our company has Gone through the international BV certification authority, and we have the ability to provide you the products with reliable quality, competitive price and timely service.
Sincerely welcome you to visit,consult and negotiate business.
FAQ:
1.OEM and ODM:
Changing on design or color: acceptable(welcome)
Develop on artwork and sketch : acceptable
2.QC:
Third party inspection:acceptable
1 year guarantee for quality problems.
3.Delivery time:
1 week for Standard Model(motor:380v 50hz 3phases)
15-25days for Cusmoized Model.
4.Payment:
TT, 30% deposit ,70% before shippment.
L/C at sight (high bank charge, not suggest , but acceptable).
100%TT in advance (specially for air shipment or small amount).
5.Available Shipment:
FOB Qingdao
FOB Shanghai
