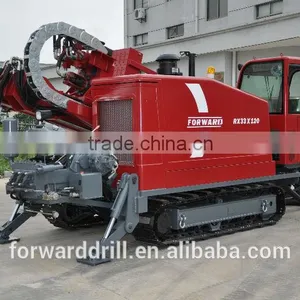

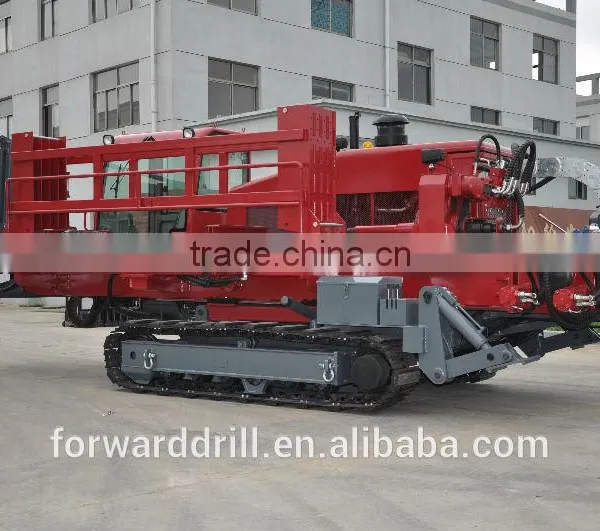

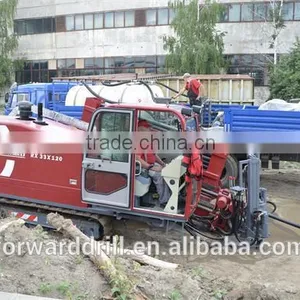

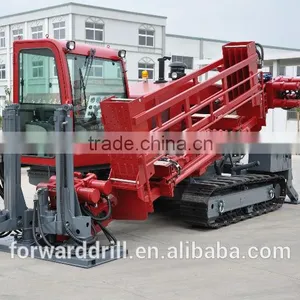

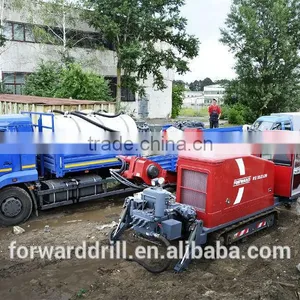

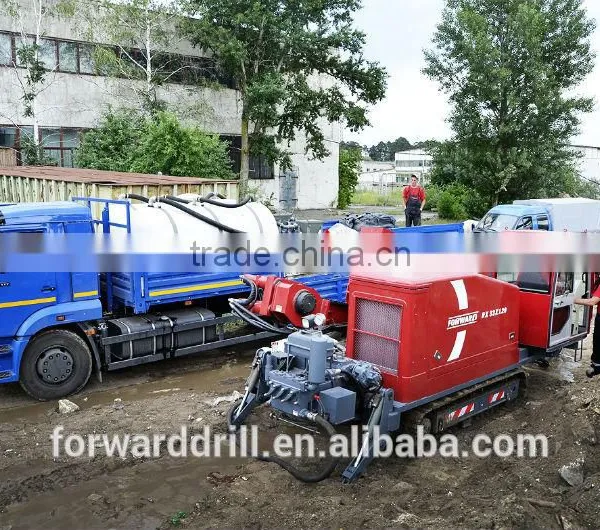

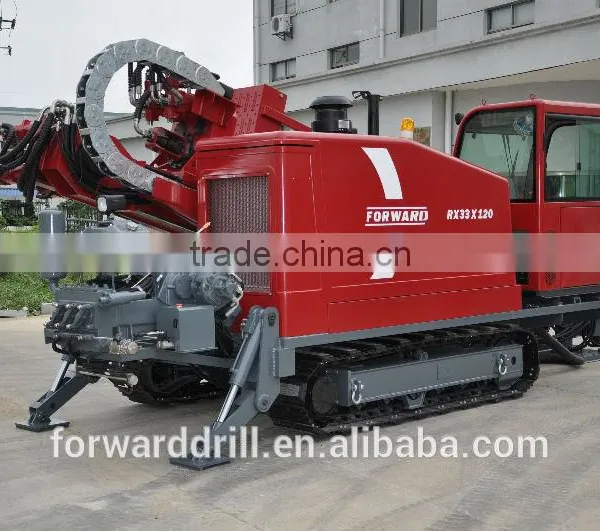

Horizontal directional drilling machine FORWARD RX33×120
RX33×120 is equipped with reliable hydraulics of European and American known brands: SAUER DANFOSS, EATON, etc, durable drilling tool made of high-solid steel.
RX33×120 is equipped with motor power of 176 kW. A unique system of rotation and the feed-traction provides traction up to 33 000 kg and spindle torque up to 14 000N.m. The maximum rotation speed is 180 rpm and a feed rate of 42m/min-traction guarantees the high efficiency of operations. Automatic drill rods feeding system and the anchor hydraulic system shorten running period and increase productivity.

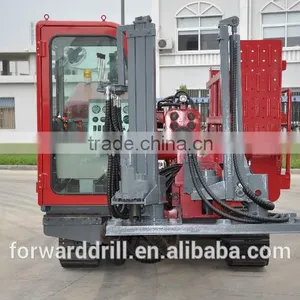

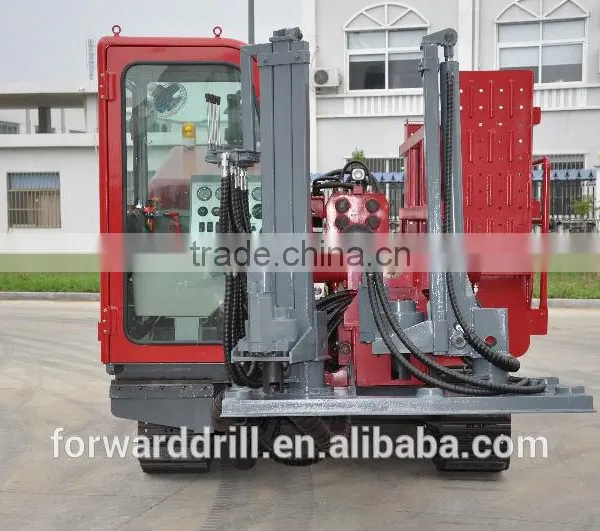

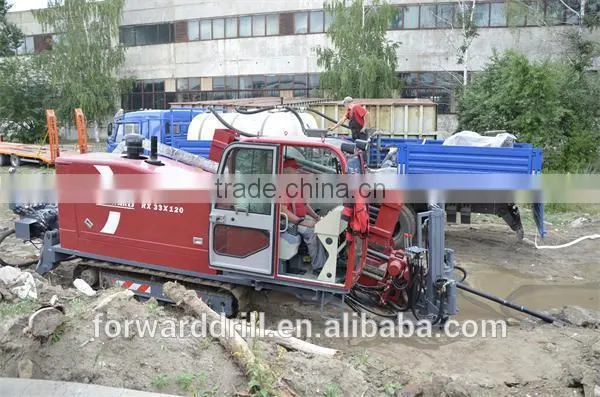

RX33×120 is equipped with operator cabin, which is provided with air condition and hitting system. A monitor and exterior cameras can be provided additionally.
Diesel Engine | |||
Model |
DEUTZ-WEUCHAI |
||
Power |
176 Kw |
||
Cylinders |
6 |
||
Rotation |
2 200 RPM |
||
Cooling Type |
Water Cooling |
||
Fuel Consumption |
16-23 L/h |
||
Rotation | |||
Gears |
2 |
||
|
Low Speed |
Rotation Speed |
0-90 rpm |
Max.Torque of Spindle |
14 000 Nm |
||
High Speed |
Rotation Speed |
0-180 rpm |
|
Max.Torque of Spindle |
7 000 Nm |
||
Thrust and Pullback | |||
Speed of Movement |
3 Speeds |
||
|
Low Speed |
Thrust Force |
330 KN |
Pullback Force |
330 KN |
||
Speeds |
0-9.5 m/min |
||
High Speed |
Thrust Force |
165 KN |
|
Pullback Force |
165 KN |
||
Speeds |
0-19 m/min |
||
Addition Speed |
Thrust Force |
165 KN |
|
Pullback Force |
165 KN |
||
Speeds |
0-42 m/min |
||
Other Parameters | |||
Drilling Angle |
10º-18º |
||
Power Winch System |
Jaws Clamping Spindle Torque |
10 500 Nm |
|
Jaws Reducing Spindle Torque |
21 000 Nm |
||
Mud Pump |
Maximum Capacity |
450 L/min |
|
Maximum Pressure |
10 MPa |
||
Motion |
Motion Speed |
0-3 km/h |
|
Maximum Elevation Angle |
25º |
||
Drill Rods |
Length |
3 000 mm |
|
Rock Lock |
82 mm |
||
Rod Body |
73 mm |
||
Max Bending |
6% |
||
Weight |
45 kg |
||
Loading Capacity of Drill Rods Holder |
40 PCS |
||
Main Machine Weight |
11 000 Kg |
||
Dimensions(L×W×H) |
6800×2200×2330 mm |
||
Diesel Engine Preheating |
Yes |
||
Hydraulic System Preheating |
Yes |
||
Hydraulic System Preheating |
Yes |
||
Hydraulic Anchor System |
Yes |
||
Drill Rods Supply System |
Yes |
||
Drill Rods Lubrication System |
Yes |
||
Fuel Tank Capacity |
247 L |
||
Hydraulic Tank Capacity |
311 L |
||
