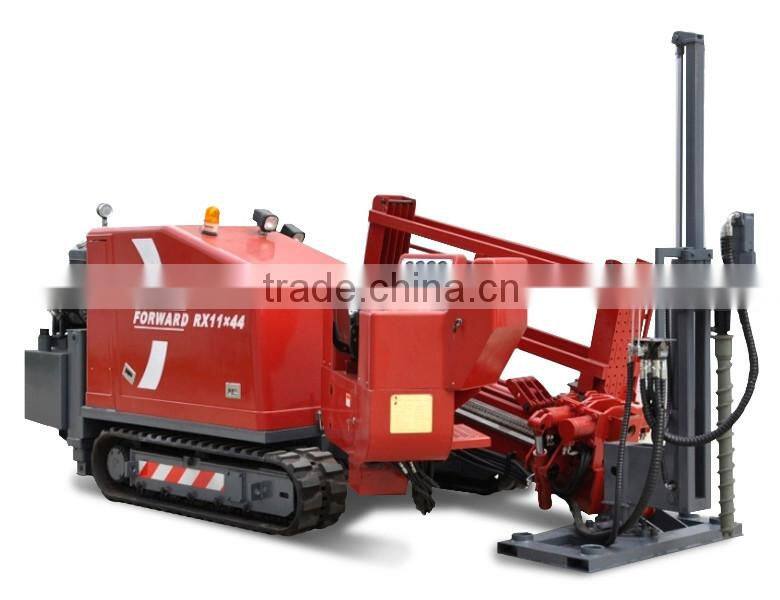

FORWARD RX11×44
RX11×44 rig is equipped with reliable hydraulics of European and American world known brands: SAUER DANFOSS, EATON, KTR, HYDRO CONTROL, durable drilling tool made of high-solid steel.
RX11×44 rig is equipped with YC4B motor power of 62 kW. A unique system of rotation and the feed-traction provides traction up to 11 000 kg and spindle torque up to 4 400N.m. The maximum rotation speed is 180 rpm and a feed rate of 46m/min-traction guarantees the high efficiency of operations. Automatic drill rods feeding system and the anchor hydraulic system shorten running period and increase productivity. Due to the maximum elevation angle of 25 ° rig can drive on any truck.

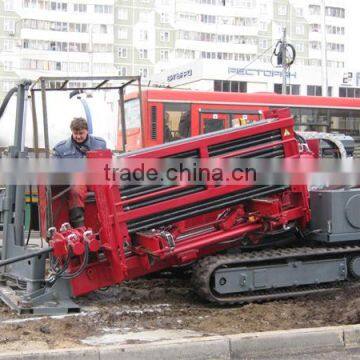

FORWARD RX 11×44 rig is standing stable on steel track with rubber element. It increases reliability of the rig and not damages asphalt surface. Drilling rig also has engine and hydraulic oil preheating system.
Diesel Engine | |||
Model |
YC4B |
||
Power |
62 Kw |
||
Cylinders |
4 |
||
Cooling Type |
Water Cooling |
||
Fuel Consumption |
8-11 L/h |
||
Rotation | |||
Gears |
2 |
||
|
Low Speed |
Rotation Speed |
0-90 rpm |
Max.Torque of Spindle |
4 400 Nm |
||
High Speed |
Rotation Speed |
0-180 rpm |
|
Max.Torque of Spindle |
2 200 Nm |
||
Thrust and Pullback | |||
Speed of Movement |
2 Speeds |
||
|
Low Speed |
Thrust Force |
110 KN |
Pullback Force |
110 KN |
||
Speeds |
0-23 m/min |
||
High Speed |
Thrust Force |
60 KN |
|
Pullback Force |
60 KN |
||
Speeds |
0-46 m/min |
||
Other Parameters | |||
Drilling Angle |
8º-16º |
||
Power Winch System |
Jaws Clamping Spindle Torque |
4 000 Nm |
|
Jaws Reducing Spindle Torque |
10 000 Nm |
||
Mud Pump |
Maximum Capacity |
150 L/min |
|
Maximum Pressure |
7 MPa |
||
Motion |
Motion Speed |
0-3 km/h |
|
Maximum Elevation Angle |
25º |
||
Drill Rods |
Length |
2 000 mm |
|
Rock Lock |
54 mm |
||
Rod Body |
50 mm |
||
Max Bending |
5% |
||
Weight |
16 kg |
||
Loading Capacity of Drill Rods Holder |
52 PCS |
||
Main Machine Weight |
5 500 Kg |
||
Dimensions(L×W×H) |
4700×1900×2000 mm |
||
Diesel Engine Preheating |
Yes |
||
Hydraulic System Preheating |
Yes |
||
Hydraulic System Preheating |
Yes |
||
Hydraulic Anchor System |
Yes |
||
Drill Rods Supply System |
Yes |
||
Drill Rods Lubrication System |
Yes |
||
Fuel Tank Capacity |
126 L |
||
Hydraulic Tank Capacity |
217 L |
||
