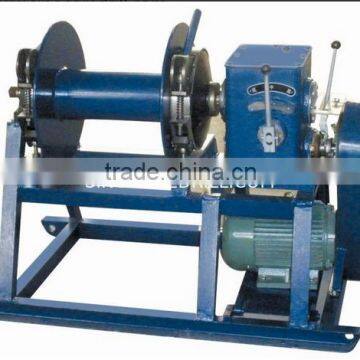

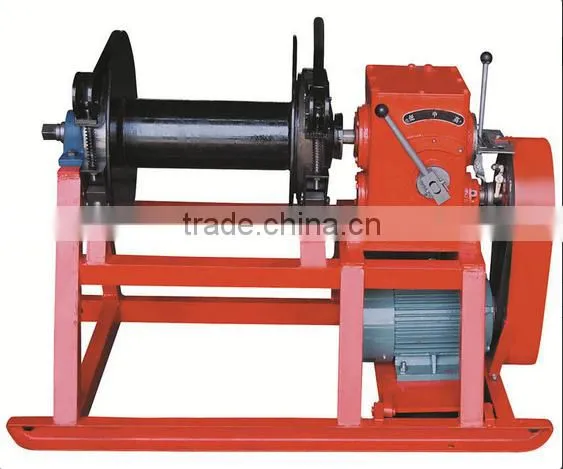

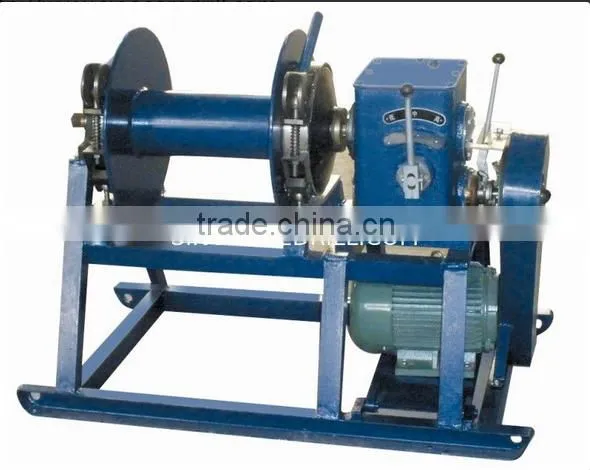

High Speed Drill Rig Parts , Hydraulic electric wireline winch for drilling
The wireline winch is the most commonly used wireline core drilling part in drilling field .It is suitable for deep mining and explration drilling .It desighs with powerful electric drive. Wireline winch comes in different sizes providing more fiexibility for our clients .We can sustomize the winches based on the clients needs .
Specifications
Hydraulic Driven Winch:
Max. lifting power (empty drum): 1200 Kg
Max. speed: 164 m/min.
Equipped with spindle driven braking system
Suitable for 900m steel-wire line (dia 14mm)
Grooved drum
Hydraulic requirements : 65 l/min @ 200 bar
Advantage&Feature
1)Top quality with competitive price.
2)Widely used in the double beam bridge crane and gantry crane.
3)Easy to install and high quality.
4)Compact structure and reasonable design.
5)overload protection,shock protective, Explosion-proof performance
Features:
- steel cable available
- ideal for use with conventional drill rigs
- strong lifting power up to 3 tones
- easy to operat
- safe to use
- reliable performance
Specificaitions of winch
| Type | Rated load (KN) | Rated speed | Rope capacity |
Rope diameter |
Motor model | Motor power |
Overall dimensions |
Total weight |
| (m/min) | (m) | (mm) | (KW) | (mm) | (kg) | |||
| JM1 | 10 | 16 | 100 | 9.3 | Y112M-6 | 3 | 620*701*417 | 270 |
| JM1.6 | 16 | 16 | 150 | 12.5 | Y132M-6 | 5.5 | 945*996*570 | 500 |
| JM2 | 20 | 16 | 150 | 13 | Y160M-6 | 7.5 | 945*996*570 | 550 |
| JM3.3 | 32 | 9.5 | 150 | 15.5 | YZR160M-6 | 7.5 | 1430*1160*910 | 1100 |
| JM3.2B | 32 | 12 | 195 | 15.5 | YZR160M-6 | 7.5 | 1082*1004*610 | 536 |
| JM5 | 50 | 10 | 270 | 21.5 | YZR160L | 11 | 1235*1230*805 | 1560 |
| JM5B | 50 | 9.5 | 200 | 21.5 | YZR160L | 11 | 1620*1260*945 | 1800 |
| JM5C | 50 | 9.5 | 250 | 21.5 | YZR160L | 11 | 1235*1230*805 | 1800 |
| JM5D | 50 | 15 | 250 | 21.5 | YZR180L-6 | 15 | 1235*1230*805 | 1850 |
| JM5E | 50 | 20 | 250 | 21.5 | YZR200L-6 | 22 | 1235*1230*805 | 2000 |
| JM6 | 60 | 9.5 | 270 | 24 | YZR180L-6 | 15 | 1235*1509*805 | 1800 |
| JM8 | 80 | 8 | 250 | 26 | YZR180L-6 | 15 | 2090*1475*956 | 2900 |
| JM8B | 80 | 9.5 | 350 | 26 | YZR180L-6 | 15 | 1075*1598*985 | 2650 |
