Light Weight Drilling Rig Mast / Drilling Rig Tower With 320KN Max Dead Load

Light Weight Drilling Rig Mast / Drilling Rig Tower With 320KN Max Dead Load thumbnail-1
Light Weight Drilling Rig Mast / Drilling Rig Tower With 320KN Max Dead Load photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
SINOCOREDRILL
Type:
Other, Drilling Rig Mast
Contact Supplier Request Quote Chat Now
Lianyungang Forward Heavy Industrial Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name SINOCOREDRILL
Type Other, Drilling Rig Mast
Machine Type Drilling Equipment
Certification Other, ISO9001: 2000 and API 5DP

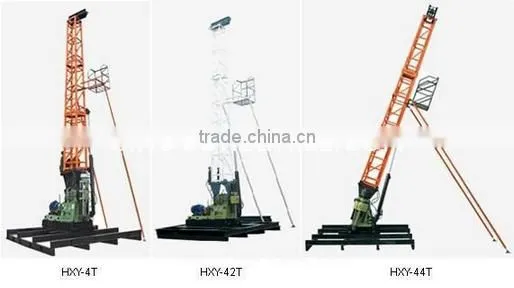

Light Weight Drilling Rig Mast / Drilling Rig Tower With 320KN Max Dead Load





The tower is equipped with drilling rig.It is high reliable



Parameter

HCX-13 DERRICK

FOR DRILLING

BOTH STRIGHT

AND INCLINED HOLES

HCX-18 DERRICK

FOR DRILLING

BOTH STRIGHT

AND INCLINED HOLES

SGZ-23 DERRICK

FOR STRIGHT
HOLE DRILLING

Main

Features

1. In reasonable structure;

height of each section 1.3m;

With light weight

of single piece,

it is easy and quick

for installation.

1. In reasonable structure;

 height of each

section 1.7m;

With light weight

of single piece,

it is easy and quick

for installation.

1. In reasonable structure;

height of each section 1.7m;

With light weight

of single piece,

it is easy and quick

for installation.

2. With large

Capacity lifting,

it could meet

800m vertical hole

and 600m

inclined holes drilling.

2. With large

Capacity lifting,

it could meet

1500m vertical hole

and 1200m inclined

holes drilling.

2. With large Capacity lifting,

it could meet 1800m vertical

hole and 1200m

inclined holes drilling.

3. It is adaptable

and the steel base

could be used

for variety of common

longitudinal rigs

with drilling depth

from 300m to 800m.

3. It is adaptable

and the steel base

could be used

for variety of common

longitudinal rigs

with drilling depth

from 1000m to 1500m.

3. It is adaptable

and the steel base

could be used

for variety of  common

longitudinal rigs

with drilling depth

from 1500m to 2400m.

4. Occupying only

a small area,

the base costs less

for land digging

and leveling,  suitable

for mountain

area application.

4. Occupying only

a small area,

the base costs less

for land digging

and leveling,  suitable for mountain

area application.

4. Occupying only

a small area,

the base costs less

for land digging

and leveling,  suitable for mountain

area application.

Nominal

Height

13M

18M

23M

Max Dead

Load of Crown

Block Beam

320KN

320KN

320KN

Lifting Length

of Drilling Rod

2×4.5 or 3×3

3×4.5 or 4×3

4×4.5 or 6×3

Adapt to

Angle

of hole

inclination

75°-90°

75°-90°

90°

Nominal Area  of Base

3.8M×4.7M

4.5M×5.8M

5.5Mx5.5M

Number  of Crowned

Pulleys

3pcs

3pcs

4pcs

Max Load

of Cage

0.8KN

0.8KN

0.8KN

Weight

4450KG

5480KG

7500KG
