Wireline Core Drill Parts OVERSHOT
Description :

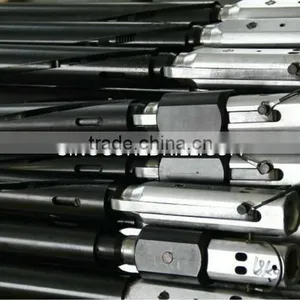

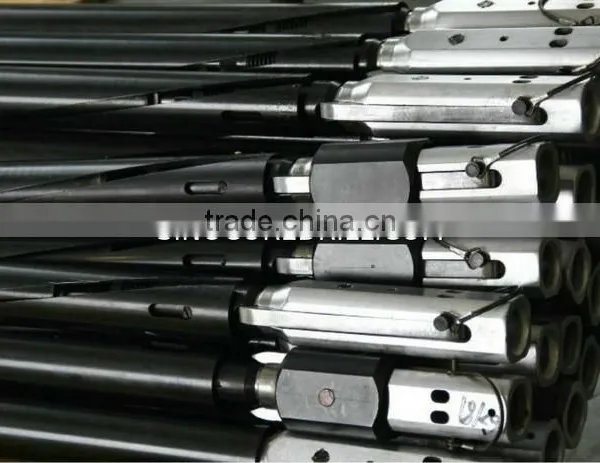

Ezy Lock Overshot
Overshot is a necessary device in wireline drilling. It's dropped on a cable and directly couples onto and lift up the inner tube assembly, eliminating the need to couple and uncouple the rod string each time the core is retrieved.
Ezy Lock Overshot is a modified product based on compact overshot. It protects against accidental release of the core barrel. This is ideal for suface application when hoisting above ground.
Features:

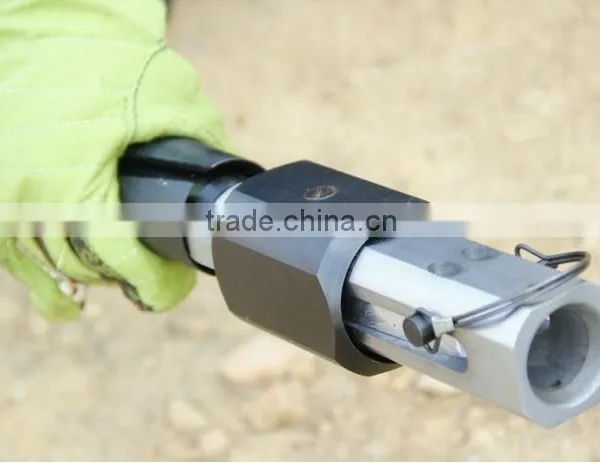

• Ezy Lock Sleeve provides a quick, one-handed rotation of the sleeve to lock the lifting dogs.
• Quick Release Safety Pin locks the overshot head to the spearhead point.
Specifications
1. A necesary device in wireline drilling
2. Lifts up the inner tube assembly directly
Parts Description:
Item |
Description |
1 |
Eye Bolt |
2 |
Cable Swivel Collar |
3 |
Thrust Bearing |
4 |
Castle Nut |
5 |
Cotter Pin |
6 |
Grease Fitting |
7 |
Cable Swivel Body |
8 |
Jar Staff |
9 |
Jar Tube |
10 |
Locking Sleeve |
11 |
Hex Nut 3/4 UNC |
12 |
Washer, Nord-lock |
13 |
Cap |
14 |
Spring |
15 |
Sleeve |
16 |
Eye Lock Overshot Head |
17 |
Ball 11/32" |
18 |
Lifting Dog |
19 |
Compression Spring |
20 |
Spring Pin 1/4'" x 2" |
21 |
Plain Pin 1/2" x 3-1/4" |
22 |
Set Screw |
23 |
Compression Spring |
24 |
Sleeve |
As a professional manufacturer of WL series overshot assembly in China, we still provide customers worldwide with China overshot assembly, hoisting plug, foot clamp, circle wrench, etc.
If you're interested in our WL series overshot assembly, please contact us freely.
