FRS-PA Floor Filter Fiberglass Material Paint Arrestor For Spray Booth
Feature:
·Low initial resistance
·High separation efficiency
·Different color on inlet and outlet side
·Flexible
·Economical and practical
Application: used in the spray booth or filter mist in the kitchen
Type: supply pads or rolls size

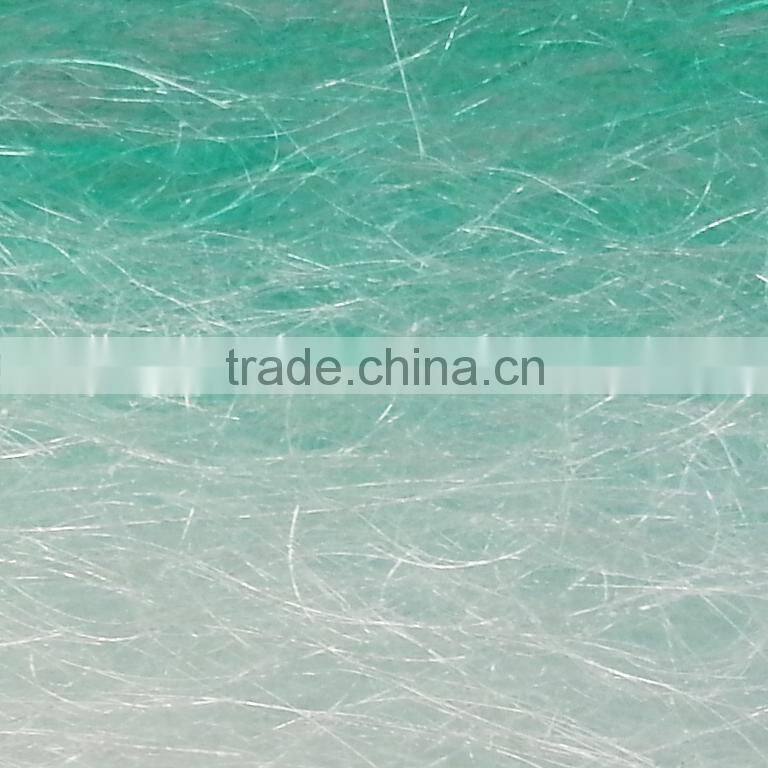

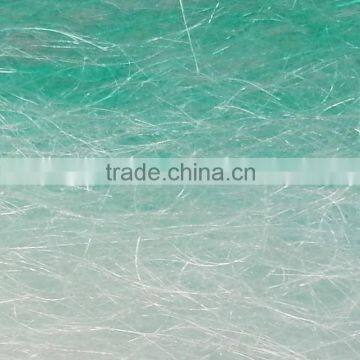

Media: fiber glass with gradual density, inlet side is green,outlet side is white
EN779 class: G3,G4
Average arrestance:93%(ASHRAE52.1-1992)
EUROVENT4/5 class: EU3, EU4
Average separation efficiency: 95%
Final resistance: (suggested) 130Pa-200Pa
Temperature resistance: 170℃
Normal Specification:
Type | Dimensions | Rated air velocity(m/s) |
Initial pressure drop (Pa) | Rated air flow(m2/h) | ||
Length(m) | Width(m) | Thickness(mm) | ||||
Rolls | 20 | 0.8/1/2 | 50-100 | 2.0 | 10 | 7200 |
Pictures:
