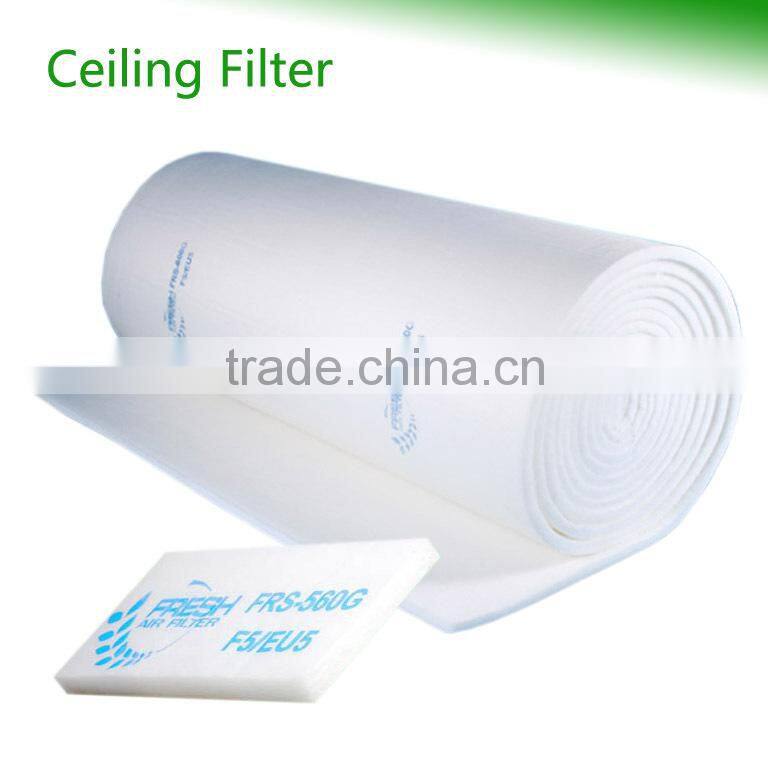

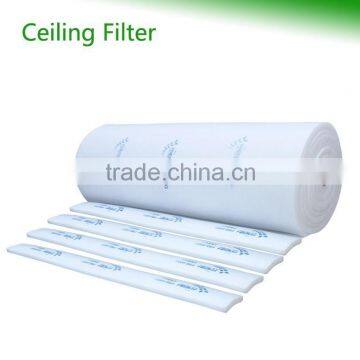

F5 560G Ceiling Filter (Guangzhou)
Specification:
Type | Dimensions | Rated air velocity(m/s) | Initial pressure drop (Pa) | Rated air flow(m2/h) | ||
Length(m) | Width(m) | Thickness(mm) | ||||
Rolls | 14/21 | 1.6/2 | 22 | 0.30 | 38 | 1080 |
Advantage:
·Low initial resistance
·Large dust holding capacity
·Flexible
·Outlet side with net or cloth mesh to reinforce
Application: capturing 1-10μm particles, especially for the top part of spray booth, prefiltration mesh to reinforce through air filter system, diffluent equally.
Type: supply pads or rolls size
Media: synthetic fiber with gradual density, surface of inlet side with adhesive treatment
EN779 class: F5
Average arrestance:96%(ASHRAE52.1-1992)
Average efficiency: 45%-55 %(ASHRAE52.1-1992)
EUROVENT4/5 class: EU5
DIN53438 Non-flammability Standard: F1
Final resistance: 400Pa (suggested)
Temperature resistance: 100℃
Instant temperature: ≤120℃
Procuct Details:
