Specifications

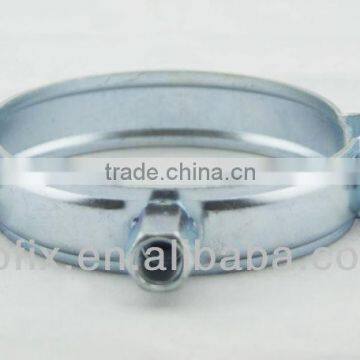

galvanised pipe clamps without rubber1.ISO 9001:2008 certification
2.full range of sizes are available
3.zinc plated
For fastening:
Pipe lines,such as heating,sanitary and waste water pipes,to walls,cellings and floors.
Properties:
| Material: | steel DD11(material no.1.0332) acc.to DIN EN 10111 |
| Zinc plating: | electro zinc plated,6-8µm |
| Resistance welded nut: | M8 |
| Resistance welded nut: | M8/10 |
| Locking screw: | combi-slot cheese head screw |
Avantages:
1.Two screws pipe clamp with compact structural design of the clamp enables simple and full piping insulation without larger overlap in the area of the toggle and closing device. All this is possible even using a small thickness of insulating material. 2.Screws have a combined head with a cross and a slot. 3.The pipe clamp is checked regarding noise protection according to DIN 4109. 4.It prevents the action of electrolysis. 5.Two-screw pipe clamps satisfy the highest requirements while mounting on walls, ceilings and floors but also in connection with pipes used in sanitary installations.
Application:
1.Used for mounting of pipes to the walls (vertical / horizontal),ceilings and floors
2.For Suspending Stationary Non-Insulated Copper Tubing Lines
3.Being fasteners for pipe lines such as heating,sanitary and waste water pipes;to walls,ceilings and floors.
4.Side screws are protected against loss during assemble with the help of plastic washers
Usage:
1.steel pipes
2.cast iron pipes
pper pipes
4.glass pipes
5.plastic pipes
Field:
1.sanitary and heating installations
2.gas distribution systems
3.air conditioning systems
Technical data:
| Article Number |
Pipe Dia. | Clamping range |
Material | Thread | Locking screw |
Rubber mm |
PKG | Min.torque | Fzul |
| b x s | G | ||||||||
| Inch | mm | mm | pcs/box | Nm | KN | ||||
| 825012 | 1/4" | 12-14 | 20x1.5 | M8/10 | M5X25 | N/A | 150 | 80 | 1.2 |
| 825015 | 3/8" | 15-19 | 20x1.5 | M8/10 | M5X25 | N/A | 150 | 80 | 1.2 |
| 825021 | 1/2" | 21-23 | 20x1.5 | M8/10 | M5X25 | N/A | 100 | 80 | 1.2 |
| 825026 | 3/4" | 26-28 | 20x1.5 | M8/10 | M5X25 | N/A | 100 | 80 | 1.2 |
| 825032 | 1" | 32-35 | 20x1.5 | M8/10 | M5X25 | N/A | 100 | 80 | 1.2 |
| 825040 | 1-1/4" | 40-43 | 20x1.5 | M8/10 | M5X25 | N/A | 50 | 80 | 1.2 |
| 825048 | 1-1/2" | 48-56 | 20x1.5 | M8/10 | M5X25 | N/A | 50 | 80 | 1.2 |
| 825057 | 2" | 57-61 | 20x1.5 | M8/10 | M5X25 | N/A | 50 | 80 | 1.2 |
| 825063 | 63-67 | 20x1.5 | M8/10 | M5X25 | N/A | 50 | 80 | 1.2 | |
| 825074 | 2-1/2" | 74-80 | 20x1.5 | M8/10 | M5X25 | N/A | 50 | 80 | 1.2 |
| 825083 | 3' | 83-91 | 20x1.5 | M8/10 | M5X25 | N/A | 50 | 80 | 1.2 |
| 825100 | 100-105 | 23x2.0 | M8/10 | M6x30 | N/A | 25 | 90 | 1.5 | |
| 825108 | 4" | 108-114 | 23x2.0 | M8/10 | M6x30 | N/A | 25 | 90 | 1.5 |
| 825115 | 115-125 | 23x2.0 | M8/10 | M6x30 | N/A | 25 | 90 | 1.5 | |
| 825135 | 5" | 135-140 | 23x2.0 | M8/10 | M6x30 | N/A | 25 | 90 | 1.5 |
| 825140 | 140-144 | 23x2.0 | M8/10 | M6x30 | N/A | 25 | 90 | 1.5 | |
| 825159 | 6" | 159-169 | 23x2.0 | M8/10 | M6x30 | N/A | 20 | 90 | 1.5 |
