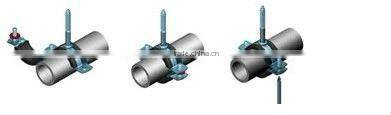

841 Nailed Pipe Clamp for Steel Tube
- xiaolan
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | cofix | |
| Model Number | 841 | Usage | Pipe Clamp | |
| Material | Metal | Structure | Suspension Clamp | |
| Standard or Nonstandard | Standard |
Product Description
For fastening:
Plastic,cast iron and steel pipes to walls,cellings and floors in the drainage system,etc.
Properties:
| Material | steel DD11(material no.1.0332) acc.to DIN EN 10111 |
| Zinc plating | electro zinc plated,6-8µm |
| Connecting nailed pin | 5x5x80mm,6x6x80mm |
| Locking screw | combi-slot cheese head screw |
| Acoustic insulation lining | material:EPDM;chlorine-free;silicone-free |
| Sound insulation | for DIN 4109 |
| Temperature range | -50° to +110°C |
| Hardness | 45+-5° Shore |
| Fire behavior | DIN 4102:class B2 |
Advantages:
1.Used for mounting of pipes to the walls ( vertical / horizontal ) , ceilings and floors
2.EPDM lining for :
(1)noise reduction level up to 15 dB according to DIN 4109
(2)vibration reduction
(3)partial compensation of thermal expansion
3.For Suspending Stationary Non-Insulated Copper Tubing Lines
4.Being fasteners for pipe lines such as heating,sanitary and waste water pipes;to walls,ceilings and floors.
5.Side screws are protected against loss during assemble with the help of plastic washers
Usage:
1.steel pipes
2.cast iron pipes
pper pipes
4.glass pipes
5.plastic pipes
Field:
1.sanitary and heating installations
2.gas distribution systems
3.air conditioning systems
Technical data:
| Article Number | For Tube | Material | Pin | Locking screw | Rubber mm | PKG | ||
| b x s | ||||||||
| DN | mm | inch | mm | mm | pcs/box | |||
| 841012 | 12-14 | 1/4" | 20×1.2 | 5×5×80 | M6×16 | 20×3.5 | 150 | |
| 841015 | 15-19 | 3/8" | 20×1.2 | 5×5×80 | M6×16 | 20×3.5 | 150 | |
| 841020 | 20-23 | 1/2" | 20×1.2 | 5×5×80 | M6×16 | 20×3.5 | 100 | |
| 841026 | 26-28 | 3/4" | 20×1.2 | 5×5×80 | M6×16 | 20×3.5 | 100 | |
| 841032 | 32-35 | 1" | 20×1.2 | 5×5×80 | M6×16 | 20×3.5 | 100 | |
| 841040 | 40-43 | 1 1/4" | 20×1.2 | 5×5×80 | M6×20 | 20×3.5 | 50 | |
| 841044 | 44-49 | 1 1/2" | 20×1.2 | 5×5×80 | M6×20 | 20×3.5 | 50 | |
| 841050 | 50-56 | 20×1.5 | 5×5×80 | M6×20 | 20×4.5 | 50 | ||
| 841057 | 57-61 | 2" | 20×1.5 | 5×5×80 | M6×20 | 20×4.5 | 50 | |
Installation:
Insert pipe, press together clamp parts, tighten locking screws
