Home > Manufacturing & Processing Machinery > Cutting & Fold-bend Machine > Bending Machine > Press Brake Tooling, Press Brake Punch and Die40T~400T)
Press Brake Tooling, Press Brake Punch and Die40T~400T)
US$ 10,000 - 120,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Shenchong
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Special Tooling Gooseneck Tooling for Bending MachineUS$ 300 - 2,000MOQ: 1 Set -
Bend Die, Tools Die on Press Brake, Press Tooling Prism, Blade on Press BrakeUS$ 300 - 2,000MOQ: 1 Set
-
Bend Die, Tools Die on Press Brake, Hydraulic Clamp Release QuickUS$ 300 - 2,000MOQ: 1 Set
-
Bend Die, Tools Die on Press Brake, Press Tooling, Blade on Press BrakeUS$ 300 - 5,000MOQ: 1 Set
-
V Block, Bend Die, Tools Die on Press Brake, Press Tooling, Blade 100ton,amada Punch Press ToolUS$ 2,000 - 10,000MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
Shenchong
Model Number
WC67Y
Machine Type
Beading Machine
Raw Material
Sheet / Plate Rolling
Material / Metal Processed
Stainless Steel
Power
Hydraulic
Automation
Automatic
Extra Services
End Forming
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Hydraulic NC Pressbrake
Description
SHENCHONG Quality Pressbrakes feature high durability, and provide precision bending capabilities. The Pressbrake main frames are constructed from rolled, stress relieved solid steel to prevent distortion during the bending process and under extreme continuous loads.
SHENCHONG Pressbrakes are produced in a high volume production process and therefore are able to be manufactured cost effectively, resulting in affordable price, representing value for money and quicker return on investment.
Featuring an adjustable synchronised torsion bar with positive stop system ensures consistent and accurate bending beam parallelism tolerance to 0.01mm via the digital Control unit.
All electrical components are off European quality supplied by, Telemecanique, Merlin Gerin and ABB. Hydraulic control units are supplied by Aron from Italy.
Features
- Hydraulic / Mechanical ram, synchronised positive stop design, ram stroke controlled by precision mechanical nut depth stops built into each cylinder.
- Electronically controlled by NC-89 Go-To Programmable digital controller assuring accurate repeatability.
- Parallelism is ensured by torsion bar that can be easily adjusted by clutch system.
- NC-89 Go-To Programmable leadscrew backgauge with adjustable height finger stops.
- Segmented heavy duty 86° offset top punch is segmented for return bend clearance, complete with European style quick release punch holder with an adjustable wedge clamping system for crowning.
- Intermediate clamp has safety key to stop punch dropping.
- Multi vee ('V') bottom die is made from one 3200mm solid die block design to handle heavy plate, safety edge vee ('V') is incorporated in bottom die block.
- Conveniently mounted control box on pendant for quick swivel and adjustments.
- Mono-block steel frame design, welded then machined to ensure minimal bed deflection under load
- Enclosed rear gate with micro safety switches complete with sliding rear door for easy access.
- European quick release style top punch and clamping system, allowing operator to change position of tooling to suit multiple requirements on complex applications. This feature ensures minimum down time, more productivity and results in reduced cost per finished product.
- Sliding steel fabricated sheet supports enabling a wide range of material sizes to be aligned and supported at the correct required height. This feature is achieved with a "T" slot machined down the total length of the die bed, sheet supports are also adjustable vertically to assist in supporting material with return bends already folded.
- Adjustable sliding blocks control the machines beam to provide desirable open height distance to the (slow speed) mute bending point.
- Operator adjustable locking knobs for quick adjustment, enables accurate repeatability and increased productivity.
- Metal safety guarding surrounding the machine with rear sliding door fitted and micro switch ensuring operator safety.
- Clear access panels placed at each end of machine allows the operator to clearly view tooling and work piece during bending operation. SHENCHONG specially design gates to suit Australian safety requirements.
- Hydraulic MPA pressure gauge mounted on right side of support frame with quick adjusting pressure control knob allowing operator to accurately set the pressure required for different material thickness, incorporating with hydraulic overload protection.
- Welded steel fabricated synchronised torsion bar horizontally supporting main bending beam to provide consistent parallelism that also can be adjusted for taper correction.
- The vertical supporting slides are treated to provide greater ware resistance and increased accuracy.
- Reinforced side frames providing addition support strength to machine throat.
Includes
- Swivel pendant control unit operated by NC-89 Go-To controller “X” & “Y” Axis
- Sliding front sheet support arms
- Emergency stop buttons conveniently located on control panel and foot control
- Mobile dual operation foot control
- Segmented 86° offset top punch
- Solid one piece four way multi vee (V) die block

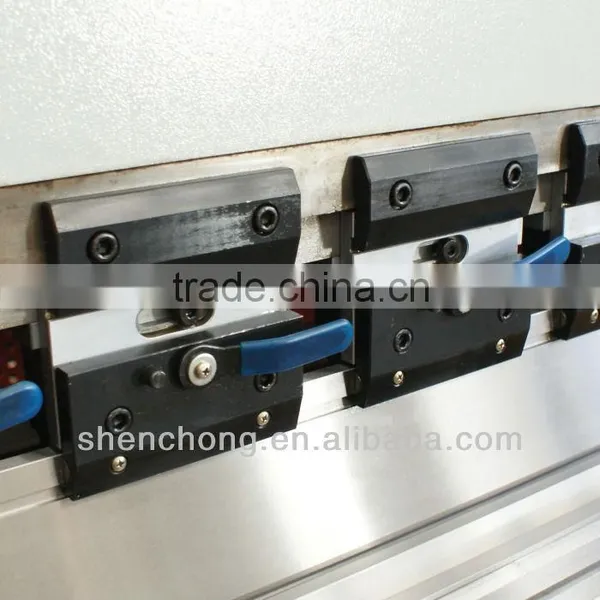

- Quick action top punch tool holder system with wedge type adjustment
- Powered operated leadscrew backgauge with 600mm travel, operated by NC-89 Go-To controller
- Oil tank level indicator
- Metal constructed safety guarding surrounding machine with clear side viewing panels
- Integrated hydraulic system allowing rapid approach switching automatically to slow bend
