Home > Products > Doppel pipe clamp > Double Clamp
Double Clamp
US$ 0.2 - 0.7
/ Piece
1000 Pieces(Min. Order)
- xiaolan
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | cofix | |
| Model Number | 848 | Usage | Pipe Clamp | |
| Material | Metal | Structure | Suspension Clamp | |
| Standard or Nonstandard | Standard |
Product Description
Specifications
Double clamp1.ISO 9001:2008 certification
2.full range of sizes are available
3.electro zinc plated
For fastening:
Pipe lines,such as heating,sanitary and waste water pipes,to walls,cellings and floors.
Properties:
| Material: | steel DD11(material no.1.0332) acc.to DIN EN 10111 |
| Zinc plating: | electro zinc plated,6-8µm |
| Capped wood screw: | M8x90 |
| Acoustic insulation lining: | material:EPDM;chlorine-free;silicone-free |
| Sound insulation: | for DIN 4109 |
| Temperature range: | -50° to +110°C |
| Hardness: | 45+-5° Shore |
| Fire behavior: | DIN 4102:class B2 |

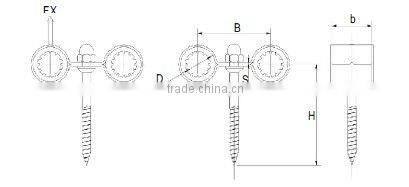

Technical data:
| Art.No | Pipe dia. | Clamping range | Material | Cap Nut | Wood screw | Rubber |
| b×s | G | |||||
| inch | mm | mm | ||||
| 848010 | 1/8" | 2×10 | 20×1.2 | M8 | M8×90 | 20×3.0 |
| 848012 | 1/4" | 2×12 | 20×1.2 | M8 | M8×90 | 20×3.0 |
| 848015 | 2×15 | 20×1.2 | M8 | M8×90 | 20×3.0 | |
| 848018 | 3/8" | 2×18 | 20×1.2 | M8 | M8×90 | 20×3.0 |
| 848022 | 1/2" | 2×22 | 20×1.2 | M8 | M8×90 | 20×3.0 |
| 848028 | 3/4" | 2×28 | 20×1.2 | M8 | M8×90 | 20×3.0 |
