DA41 Hydraulic Press Brake Machine for Sale

DA41 Hydraulic Press Brake Machine for Sale thumbnail-1
DA41 Hydraulic Press Brake Machine for Sale photo-1
US$ 10,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
SHENCHONG
Contact Supplier Request Quote Chat Now
Wuxi Shenchong Forging Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name SHENCHONG
Model Number WC67Y
Machine Type Press Brake
Raw Material Sheet / Plate Rolling
Material / Metal Processed Stainless Steel
Power Hydraulic
Automation Automatic
Extra Services Machining
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

hydraulic press brake for metal bending
2 axes control
c type
torsion bar synchro
CE and SGS certified

DA41 hydraulic press brake machine for sale




Product Description



Main performance:



Performance:
Mechanical stop nuts and synchronizing torsion bar ensure stable and reliable positioning accuracy.
Equipped with Delem control system(Netherland).
Ram stroke(Y)and back gauge(X)are controlled by controller.
Back gauge is adopted ball-screw and rolling guide way,the repeat positioning precision of X axis is±0.1mm.



DA41 hydraulic press brake machine for sale
Calculating Formula:   P=650S-2L/V(σb=450N/mm2)
 P:Bending Force              (kN)
 S:Thickness of the Plate      (mm)
 L:Width of the Plate          (m)
 V:V-Opening of the Bottom Die (mm)





Technical data





Model

 Nominal

Pressure (kn)

Length

of table (mm)

Distance

 Between

Housing (mm)

 Throat Depth (mm) Stroke (mm) Open Hight (mm) Main Motor (kw)
125/4000 1250 4000 3200 350 150 410 7.5
125/5000 1250 5000 4000 350 150 410 7.5
125/6000 1250 6000 4500 350 150 410 7.5
160/2500 1600 2500 2000 350 150 425 11
160/3200 1600 3200 2550 350 150 425 11
160/4000 1600 4000 3200 350 190 450 11
160/5000 1600 5000 4000 350 190 450 11
160/6000 1600 6000 4500 350 190 450 11

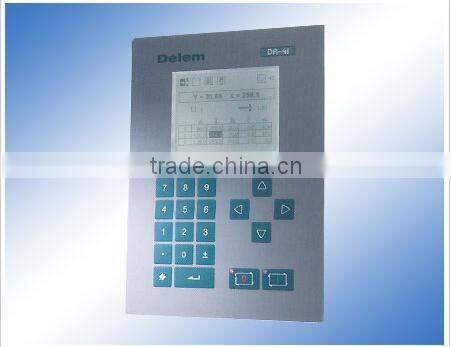

DA41 2 axes bending machine control system introduction:

DA41 hydraulic press brake machine for sale

DA-41 features

  • Bright LCD display( 4,7” monochrome )
  • Beam stop control
  • Backgauge control
  • Angle programming
  • Tool programming
  • Retract function
  • Up to 100 programs
  • Up to 25 bends per program




Optional bending control system for hydraulic Torsion bar synchro press brake



E10 digital display( x,y position display)



E21 (X,Y control, common motor or frequency convertor control, 40 programes)



E200(X,Y Servo control, 40 programes)



E210(X,Y servo control, 100 programes, angle program and auto calculation)



DA52( X,Y,R control, bending pressure, angle and working table compensation, 100 programes, max 99 steps)




Packaging & Shipping

DA41 hydraulic press brake machine for sale







Our Services



Services include

  • Expert hotline support
  • Preventative maintenance programs
  • Machinery moves
  • Training
  • Emergency repair service
  • Factory tour in Wuxi

FAQ



WHY CHOOSE US:

Fine craft and high precision

10 years export experience

CE,SGS, ISO Certificated

OEM SERVICE AVAILABLE

24 HOURS’ ONLINE SERVICE

14 months quality warranty

Oversea engineers available for problem shooting
